Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU1706AX |
|
|
|
|
GENERAL DESCRIPTION
Enhanced performance, new generation, high-voltage, high-speed switching npn transistor in a plastic full-pack envelope intended for use in high frequency electronic lighting ballast applications.
QUICK REFERENCE DATA
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
VCESM |
Collector-emitter voltage peak value |
VBE = 0 V |
- |
1750 |
V |
VCEO |
Collector-emitter voltage (open base) |
|
- |
850 |
V |
IC |
Collector current (DC) |
|
- |
5 |
A |
ICM |
Collector current peak value |
Ths ≤ 25 ˚C |
- |
8 |
A |
Ptot |
Total power dissipation |
- |
32 |
W |
|
VCEsat |
Collector-emitter saturation voltage |
IC = 1.5 A; IB = 0.3 A |
- |
1.0 |
V |
ICsat |
Collector saturation current |
|
1.5 |
- |
A |
tf |
Fall time |
ICM = 1.5 A; IB(on) = 0.3 A |
0.25 |
0.6 |
μs |
PINNING - SOT186A |

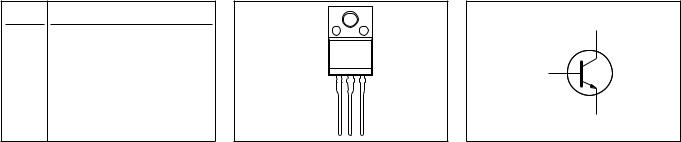

PIN CONFIGURATION |
SYMBOL |
|
PIN |
DESCRIPTION |
case |
c |
|
|
||
1 |
base |
|
|
2 |
collector |
|
b |
3 |
emitter |
|
|
|
|
||
case |
isolated |
1 2 3 |
e |
|
|
||
LIMITING VALUES
Limiting values in accordance with the Absolute Maximum Rating System (IEC 134)
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
VCESM |
Collector-emitter voltage peak value |
VBE = 0 V |
- |
1750 |
V |
VCEO |
Collector-emitter voltage (open base) |
|
- |
850 |
V |
IC |
Collector current (DC) |
|
- |
5 |
A |
ICM |
Collector current peak value |
|
- |
8 |
A |
IB |
Base current (DC) |
|
- |
3 |
A |
IBM |
Base current peak value |
|
- |
5 |
A |
-IB(AV) |
Reverse base current |
average over any 20ms period |
- |
100 |
mA |
-IBM |
Reverse base current peak value |
Ths ≤ 25 ˚C |
- |
4 |
A |
Ptot |
Total power dissipation |
- |
32 |
W |
|
Tstg |
Storage temperature |
|
-40 |
150 |
˚C |
Tj |
Junction temperature |
|
- |
150 |
˚C |
THERMAL RESISTANCES
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
Rth j-hs |
Junction to heatsink |
with heatsink compound |
- |
4.0 |
K/W |
Rth j-a |
Junction to ambient |
in free air |
55 |
- |
K/W |
April 1994 |
1 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU1706AX |
|
|
ISOLATION LIMITING VALUE & CHARACTERISTIC
Ths = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
Visol |
R.M.S. isolation voltage from all |
f = 50-60 Hz; sinusoidal |
- |
|
2500 |
V |
|
three terminals to external |
waveform; |
|
|
|
|
|
heatsink |
R.H. ≤ 65% ; clean and dustfree |
|
|
|
|
|
|
|
|
|
|
|
Cisol |
Capacitance from T2 to external |
f = 1 MHz |
- |
10 |
- |
pF |
|
heatsink |
|
|
|
|
|
STATIC CHARACTERISTICS
Ths = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
|
|
MIN. |
TYP. |
MAX. |
UNIT |
|||
|
|
|
|
|
|
|
|
|
|
|
|
I |
Collector cut-off current 1 |
V = |
0 |
V; V |
CE |
= V |
CESMmax |
- |
- |
1.0 |
mA |
CES |
|
BE |
|
|
|
|
|
|
μA |
||
ICES |
|
VBE = |
0 |
V; VCE = 1500 V |
- |
- |
20 |
||||
ICES |
|
VBE = |
0 |
V; VCE = VCESMmax; |
- |
- |
2.0 |
mA |
|||
IEBO |
|
Tj = 125 ˚C |
|
|
|
|
|
|
|
||
Emitter cut-off current |
VEB = |
12 V; IC = 0 A |
- |
- |
1 |
mA |
|||||
VCEOsust |
Collector-emitter sustaining voltage |
IB = 0 A; IC = 100 mA; |
750 |
- |
- |
V |
|||||
|
|
L = 25 mH |
|
|
|
|
|
|
|
||
VCEsat |
Collector-emitter saturation voltage |
IC = 1.5 A; IB = 0.3 |
A |
- |
- |
1.0 |
V |
||||
VBEsat |
Base-emitter saturation voltage |
IC = 1.5 A; IB = 0.3 |
A |
- |
- |
1.3 |
V |
||||
hFE |
DC current gain |
IC = 5 mA; VCE = 10 V |
8 |
- |
- |
|
|||||
hFE |
|
IC = 400 mA; VCE = 3 V |
12 |
18 |
35 |
|
|||||
hFE |
|
IC = 1.5 A; VCE = 1 |
V |
5 |
7 |
- |
|
||||
DYNAMIC CHARACTERISTICS
Ths = 25 ˚C unless otherwise specified
SYMBOL |
PARAMETER |
CONDITIONS |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
|
ton |
Switching times (resistive load) |
ICon = 1.5 |
A; IBon = -IBoff = 0.3 A |
1.1 |
1.5 |
μs |
Turn-on time |
|
|
||||
ts |
Turn-off storage time |
|
|
5 |
6.5 |
μs |
tf |
Turn-off fall time |
|
|
0.75 |
1.0 |
μs |
|
Switching times (inductive load) |
ICon = 1.5 |
A; IBon = 0.3 A; LB = 1 μH; |
|
|
|
ts |
Turn-off storage time |
-VBB = 5 V |
2.0 |
3.0 |
μs |
|
|
|
|||||
tf |
Turn-off fall time |
|
|
0.25 |
0.6 |
μs |
|
Switching times (inductive load) |
ICon = 1.5 |
A; IBon = 0.3 A; LB = 1 μH; |
|
|
|
ts |
Turn-off storage time |
-VBB = 5 V; Tj = 100 ˚C |
2.2 |
3.3 |
μs |
|
|
|
|||||
tf |
Turn-off fall time |
|
|
0.2 |
0.7 |
μs |
1 Measured with half sine-wave voltage (curve tracer).
April 1994 |
2 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU1706AX |
|
|
+ 50v 100-200R
|
Horizontal |
|
Oscilloscope |
|
Vertical |
300R |
1R |
6V
30-60 Hz

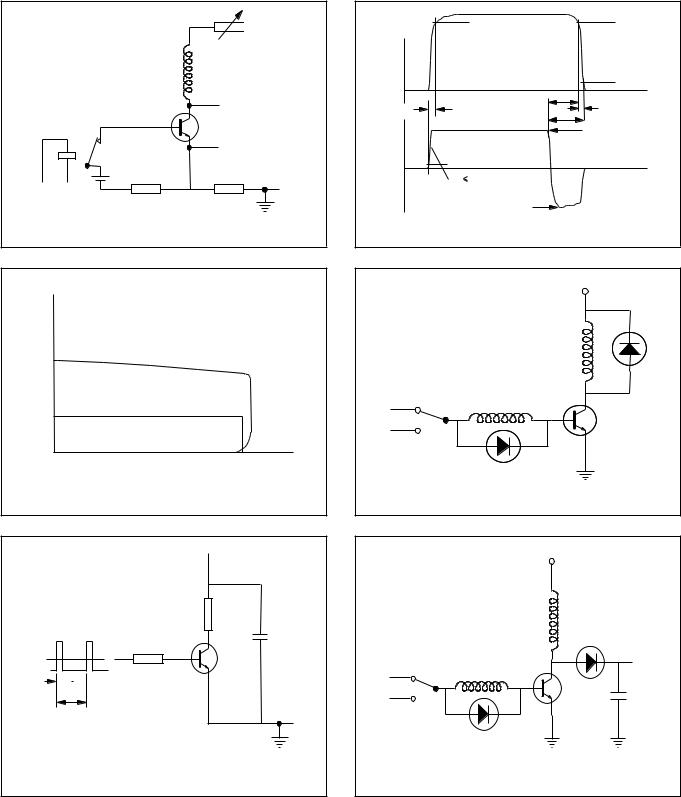

Fig.1. Test circuit for VCEOsust.
IC / mA
250
200
100
0
VCE / V |
min |
VCEOsust
Fig.2. Oscilloscope display for VCEOsust.
VCC
RL
VIM
RB
0 |
T.U.T. |
tp
T
Fig.3. Test circuit resistive load. VIM = -6 to +8 V
VCC = 250 V; tp = 20 μs; δ = tp / T = 0.01.
RB and RL calculated from ICon and IBon requirements.
ICon
|
90 % |
90 % |
IC |
|
|
|
|
10 % |
|
|
ts |
ton |
|
tf |
|
|
toff |
IB |
|
IBon |
|
|
|
10 % |
|
|
tr |
30ns |
|
|
-IBoff |
|
Fig.4. Switching times waveforms with resistive load. |
||
|
|
VCC |
|
|
LC |
IBon |
LB |
|
|
|
|
|
|
T.U.T. |
-VBB
Fig.5. Test circuit inductive load.
VCC = 300 V; -VBE = 5 V; LB = 1 uH
VCC
LC
|
VCL |
IBon |
LB |
|
-VBB |
T.U.T. |
|
Fig.6. Test Circuit RBSOA.
VCC = 150 V; -VBB = 5 V; LC = 2 mH; VCL ≤ 1500 V;
LB = 1 μH
April 1994 |
3 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
|
|
|
|
BU1706AX |
||||||||||||
|
|
|
|
|
|
|
|
|
ICon |
|
|
1.2 |
VBESAT / V |
|
|
BU1706A |
|
|
|
|
|
|
|
|
|
90 % |
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
1.1 |
|
|
|
|
|
IC |
|
|
|
|
|
|
|
|
|
|
1 |
|
Tj = 25 C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tj = 125 C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 % |
|
0.8 |
|
|
|
|
IC/IB = |
|
|
|
|
|
|
ts |
|
tf |
|
|
t |
0.7 |
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
toff |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
IB |
|
|
|
|
IBon |
|
|
|
|
|
0.6 |
|
|
|
|
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|||
|
|
|
|
|
|
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
t |
0.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.1 |
|
1 |
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
-IBoff |
|
|
|
|
|
IC / A |
|
|

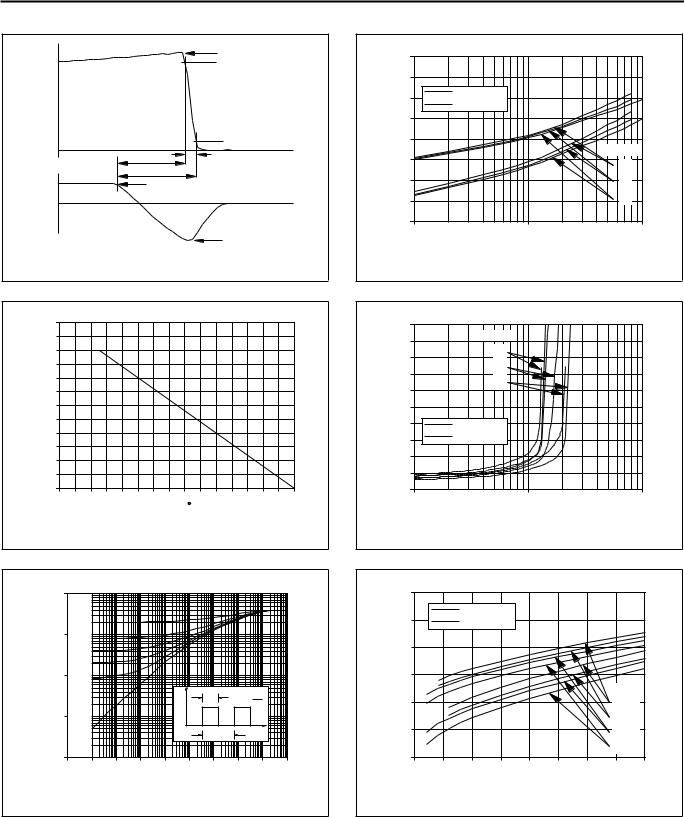

Fig.7. |
Switching times waveforms with inductive load. |
Fig.10. |
Typical base-emitter saturation voltage. |
||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VBEsat = f(IC); parameter IC/IB |
|||
120 |
PD% |
|
|
|
Normalised Power Derating |
1 |
VCESAT / V |
|
|
BU1706A |
|||||||
|
|
|
|
|
|
with heatsink compound |
|
|
|
|
|
||||||
110 |
|
|
|
|
|
|
|
|
IC/IB = |
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
0.9 |
|
|
|
|
|||
100 |
|
|
|
|
|
|
|
|
|
|
|
6 |
|
|
|
||
|
|
|
|
|
|
|
|
|
|
0.8 |
|
|
|
|
|||
|
90 |
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.7 |
|
|
|
|
||
|
80 |
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
70 |
|
|
|
|
|
|
|
|
|
|
0.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
60 |
|
|
|
|
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
50 |
|
|
|
|
|
|
|
|
|
|
0.4 |
|
Tj = 25 C |
|
|
|
|
40 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
0.3 |
|
Tj = 125 C |
|
|
|
|
|
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
0.2 |
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
|
|
0.1 |
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
0 |
20 |
40 |
60 |
80 |
100 |
120 |
|
140 |
|
0.1 |
|
1 |
|
10 |
||
|
|
|
|
|
|
Ths / C |
|
|
|
|
|
|
|
IC / A |
|
|
|
|
Fig.8. |
Normalised power dissipation. |
Fig.11. |
Typical collector-emitter saturation voltage. |
|||||||||||||
|
|
|
PD% = 100×PD/PD 25 ˚C = f (Ths) |
|
|
|
|
VCEsat = f(IC); parameter IC/IB |
|||||||||
|
10 |
|
Zth / (K/W) |
|
|
|
|
BU1706AX |
1.2 |
VBESAT / V |
|
|
BU1706A |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Tj = 25 C |
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
|
|
1.1 |
|
Tj = 125 C |
|
|
|
|
1 |
|
0.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1 |
|
|
|
|
|
|
|
|
|
0.1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.05 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.1 |
|
0.02 |
|
|
|
|
|
|
|
|
0.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
P |
tp |
tp |
|
|
|
|
|
|
IC = |
|
|
|
|
|
|
|
|
D = T |
|
0.8 |
|
|
|
|
3 A |
|||
|
|
|
|
|
|
|
D |
|
|
|
|
|
|
||||
|
0.01 |
|
D=0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
2 A |
|
|
|
|
|
|
|
T |
|
t |
|
0.7 |
|
|
|
|
1.5 A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.5 A |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.001 |
|
1u |
10u |
100u |
1m |
10m 100m |
1 |
10 |
100 |
0.6 |
0 |
1 |
2 |
3 |
4 |
||
|
|
|
|
||||||||||||||
|
|
|
|
|
|
t / s |
|
|
|
|
|
|
|
IB / A |
|
|
|
Fig.9. Transient thermal impedance. |
Fig.12. Typical base-emitter saturation voltage. |
Zth j-hs = f(t); parameter D = tp/T |
VBEsat = f(IB); parameter IC |
April 1994 |
4 |
Rev 1.000 |
Philips Semiconductors |
Product specification |
|
|
Silicon Diffused Power Transistor |
BU1706AX |
|
|
IC / A |
|
|
10 |
ICM |
|
|
ICDC |
|
1 |
|
|
|
Ptot |
|
|
|
tp = |
0.1 |
|
100 us |
|
|
1 ms |
|
|
10 ms |
|
|
DC |
0.01 |
|
|
1 |
10 VCE / V 100 |
1000 |

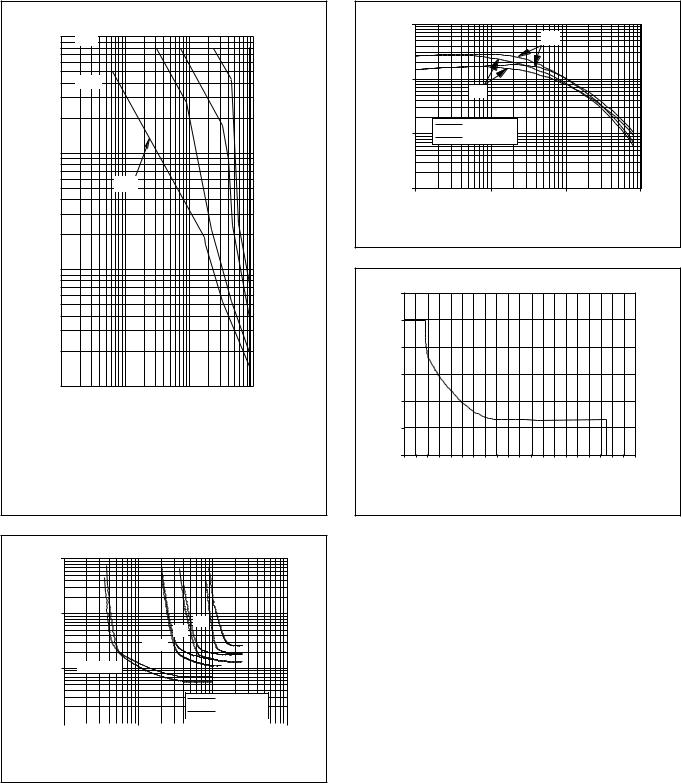

Fig.13. Forward bias safe operating area. Ths = 25 ˚C
I Region of permissible DC operation.
II Extension for repetitive pulse operation. NB: Mounted with heatsink compound and
30 ± 5 newton force on the centre of the envelope.
10 |
VCESAT / V |
BU1706A |
|
|
|
1 |
|
3A |
|
|
|
|
|
2A |
|
|
1.5 A |
0.1 |
IC = 0.5A |
|
|
|
Tj = 25 C |
|
|
|
|
|
|
|
|
|
|
Tj = 125 C |
||||||
0.01 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.01 |
0.1 |
|
1 |
10 |
||||||||||||
IB / A
Fig.14. Typical collector-emitter saturation voltage. VCEsat = f(IB); parameter IC
h FE |
|
|
BU1706A |
100 |
|
|
|
|
|
5 V |
|
10 |
|
|
|
|
1 V |
|
|
|
Tj = 25 C |
|
|
1 |
Tj = 125 C |
|
|
|
|
|
|
0.1 |
|
|
|
0.01 |
0.1 |
1 |
10 |
|
|
IC / A |
|
Fig.15. Typical DC current gain. hFE = f(IC); parameter VCE
IC / A |
|
|
|
BU1706A |
|
6 |
|
|
|
|
|
5 |
|
|
|
|
|
4 |
|
|
|
|
|
3 |
|
|
|
|
|
2 |
|
|
|
|
|
1 |
|
|
|
|
|
0 |
|
|
|
|
|
0 |
400 |
800 |
1200 |
1600 |
2000 |
|
|
VCE / V |
|
|
|
Fig.16. Reverse bias safe operating area. Tj ≤ Tjmax
April 1994 |
5 |
Rev 1.000 |
