DISCRETE SEMICONDUCTORS
M3D102
BAW56W
High-speed double diode
Product specification |
1996 Apr 04 |
Supersedes data of December 1993
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
|
|
High-speed double diode |
BAW56W |
|
|
|
|
FEATURES
∙Very small plastic SMD package
∙High switching speed: max. 4 ns
∙Continuous reverse voltage: max. 75 V
∙Repetitive peak reverse voltage: max. 85 V
∙Repetitive peak forward current: max. 500 mA
∙Forward voltage: max. 1 V.
APPLICATIONS
∙High-speed switching in e.g. surface mounted circuits.
LIMITING VALUES
DESCRIPTION
The BAW56W consists of two high-speed switching diodes with common anodes, fabricated in planar technology, and encapsulated in the very small plastic SMD SOT323 package
PINNING
PIN |
DESCRIPTION |
|
|
1 |
cathode (k1) |
|
|
2 |
cathode (k2) |
|
|
3 |
common anode |
|
|
|
|
2 |
|
1 |
|
|
|
|
|
2

1
3
3
MAM092
Top view
Marking code: A1.

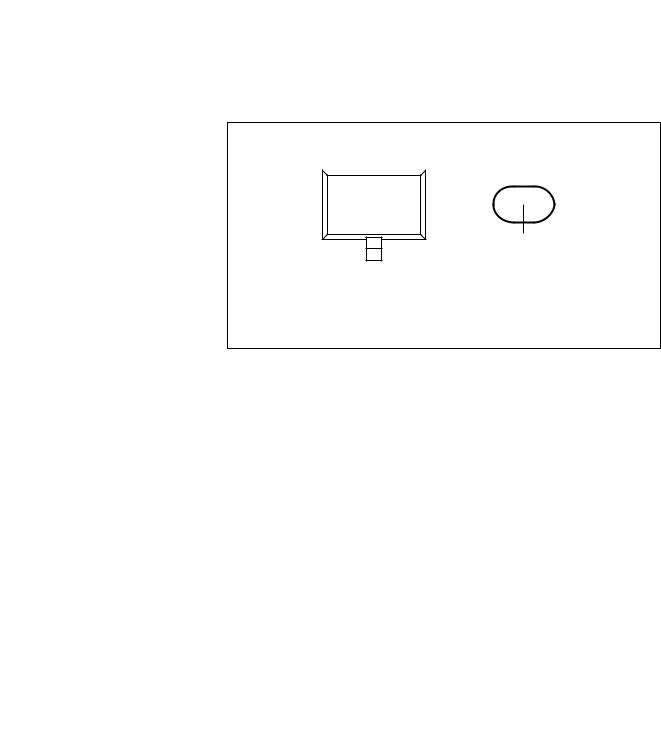

Fig.1 Simplified outline (SOT323) and symbol.
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
Per diode |
|
|
|
|
|
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
− |
85 |
V |
VR |
continuous reverse voltage |
|
− |
75 |
V |
IF |
continuous forward current |
single diode loaded; see Fig.2; |
− |
150 |
mA |
|
|
note 1 |
|
|
|
|
|
|
|
|
|
|
|
double diode loaded; see Fig.2; |
− |
130 |
mA |
|
|
note 1 |
|
|
|
|
|
|
|
|
|
IFRM |
repetitive peak forward current |
|
− |
500 |
mA |
IFSM |
non-repetitive peak forward current |
square wave; Tj = 25 °C prior to |
|
|
|
|
|
surge; see Fig.4 |
|
|
|
|
|
t = 1 μs |
− |
4 |
A |
|
|
t = 1 ms |
− |
1 |
A |
|
|
t = 1 s |
− |
0.5 |
A |
|
|
|
|
|
|
Ptot |
total power dissipation |
Tamb = 25 °C; note 1 |
− |
200 |
mW |
Tstg |
storage temperature |
|
−65 |
+150 |
°C |
Tj |
junction temperature |
|
− |
150 |
°C |
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 04 |
2 |
Philips Semiconductors |
|
|
Product specification |
||
|
|
|
|
|
|
High-speed double diode |
|
|
BAW56W |
||
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
Tj = 25 °C; unless otherwise specified. |
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
Per diode |
|
|
|
|
|
|
|
|
|
|
|
VF |
forward voltage |
see Fig.3 |
|
|
|
|
|
IF = 1 mA |
− |
715 |
mV |
|
|
IF = 10 mA |
− |
855 |
mV |
|
|
IF = 50 mA |
− |
1 |
V |
|
|
IF = 150 mA |
− |
1.25 |
V |
IR |
reverse current |
see Fig.5 |
|
|
|
|
|
VR = 25 V |
− |
30 |
nA |
|
|
VR = 75 V |
− |
1 |
μA |
|
|
VR = 25 V; Tj = 150 °C |
− |
30 |
μA |
|
|
VR = 75 V; Tj = 150 °C |
− |
50 |
μA |
Cd |
diode capacitance |
f = 1 MHz; VR = 0; see Fig.6 |
− |
2.0 |
pF |
trr |
reverse recovery time |
when switched from IF = 10 mA to |
− |
4 |
ns |
|
|
IR = 10 mA; RL = 100 Ω; |
|
|
|
|
|
measured at IR = 1 mA; see Fig.7 |
|
|
|
Vfr |
forward recovery voltage |
when switched from IF = 10 mA; |
− |
1.75 |
V |
|
|
tr = 20 ns; see Fig.8 |
|
|
|
THERMAL CHARACTERISTICS
SYMBOL |
PARAMETER |
|
CONDITIONS |
VALUE |
UNIT |
|
|
|
|
|
|
Rth j-tp |
thermal resistance from junction to tie-point |
|
|
300 |
K/W |
Rth j-a |
thermal resistance from junction to ambient |
note 1 |
|
625 |
K/W |
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 04 |
3 |
Philips Semiconductors |
Product specification |
|
|
High-speed double diode |
BAW56W |
|
|
GRAPHICAL DATA |
|
|
|
|
|
|
|
|
200 |
|
MGA889 |
300 |
|
|
MBG382 |
||
|
|
|
|
|||||
|
|
|
|
|
|
|||
|
|
|
handbook, halfpage |
|
|
|
||
|
|
|
|
IF |
|
|
|
|
IF |
single diode loaded |
|
(mA) |
|
|
|
||
|
|
|
(1) |
(2) |
(3) |
|
||
(mA) |
double diode loaded |
|
|
|||||
|
|
200 |
|
|
|
|||
100 |
|
|
|
|
|
|
|
|
|
|
|
|
100 |
|
|
|
|
0 |
|
|
|
0 |
|
|
|
|
|
|
|
0 |
1 |
VF (V) |
2 |
||
0 |
100 |
Tamb (oC) |
200 |
|||||
|
|
|
||||||
|
(1) |
Tj = 150 °C; typical values. |
|
|
(2) |
Tj = 25 |
°C; typical values. |
Device mounted on an FR4 printed-circuit board. |
(3) |
Tj = 25 |
°C; maximum values. |

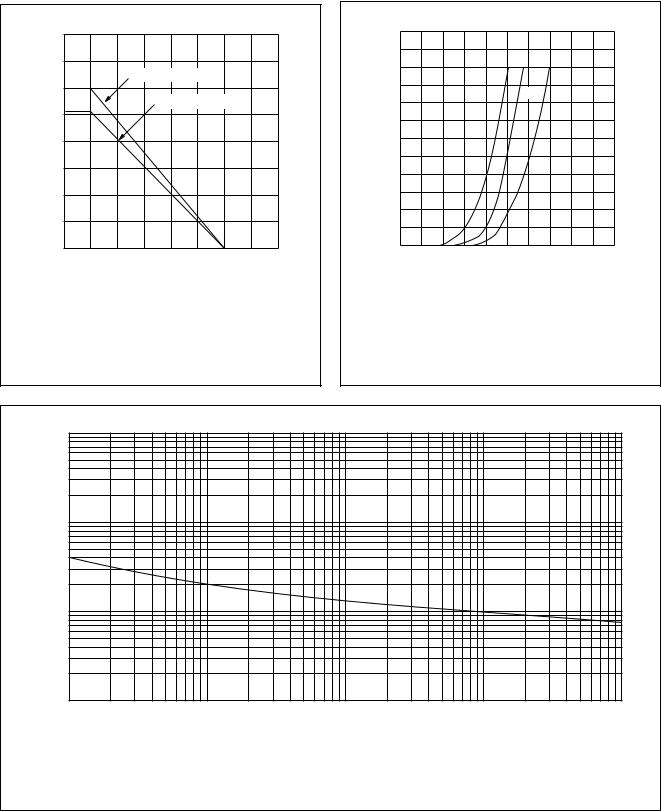

Fig.2 Maximum permissible continuous forward |
|
Fig.3 Forward current as a function of |
|
current as a function of ambient temperature. |
|
|
forward voltage. |
MBG704
102 handbook, full pagewidth
IFSM
(A)
10
1
10−1
1 |
10 |
102 |
103 |
tp (μs) |
104 |
|
|
|
|
|
Based on square wave currents.
Tj = 25 °C prior to surge.
Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
1996 Apr 04 |
4 |
Philips Semiconductors |
Product specification |
|
|
High-speed double diode |
BAW56W |
|
|
10 |
5 |
|
|
|
|
|
|
|
|
|
|
|
MGA884 |
|
2.5 |
|
|
|
|
|
|
|
|
|
|
MBH191 |
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
handbook, halfpage |
|
|
|
|
|
|
|
|
|
|
|
|||
IR |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Cd |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(pF) |
|
|
|
|
|
|
|
|
|
|
|
|
||
(nA) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
104 |
|
|
|
VR = 75 V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
103 |
|
max |
|
75 |
V |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
102 |
|
|
|
|
25 V |
|
|
|
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
typ |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
typ |
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
0 |
|
100 |
|
|
|
|
|
|
|
|
5 |
10 |
15 |
20 |
25 |
|||||||||||||||
|
|
|
Tj |
( o C) |
200 |
|
0 |
|||||||||||||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VR (V) |
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
f = 1 MHz; Tj = 25 °C. |
|
|
|
|
|
|
|
|
|
||||
Fig.5 |
Reverse current as a function of |
|
Fig.6 |
Diode capacitance as a function of reverse |
||||||||||||||||||||||||||
|
|
|
|
|
junction temperature. |
|
|
|
|
|
|
|
|
voltage; typical values. |
|
|
|
|
|
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1996 Apr 04 |
5 |
