DISCRETE SEMICONDUCTORS
book, halfpage
M3D088
PMBD2835; PMBD2836
High-speed double diodes
Product specification |
1996 Apr 04 |
Supersedes data of November 1993
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
|
|
High-speed double diodes |
PMBD2835; PMBD2836 |
|
|
|
|
FEATURES
∙Small plastic SMD package
∙High switching speed: max. 4 ns
∙Continuous reverse voltage: max. 35 V and 75 V respectively
∙Repetitive peak reverse voltage: max. 85 V
∙Repetitive peak forward current: max. 450 mA
∙Forward voltage: max. 1 V.
APPLICATIONS
∙High-speed switching in e.g. surface mounted circuits.
DESCRIPTION
The PMD2835, PMD2836 consist of two high-speed switching diodes with common anodes, fabricated in planar technology, and encapsulated in small plastic SMD SOT23 packages.
MARKING
TYPE NUMBER
MARKING
CODE
PMBD2835 pA3
PMBD2836 pA2
PINNING
PIN |
DESCRIPTION |
|
|
1 |
cathode (k1) |
|
|
2 |
cathode (k2) |
|
|
3 |
common anode |
|
|
handbook, 4 columns |
|
2 |
|
1 |
|
|
|
|
|
|
|
|
|
|
|
|
|
2
1
3
3
MAM206
Top view

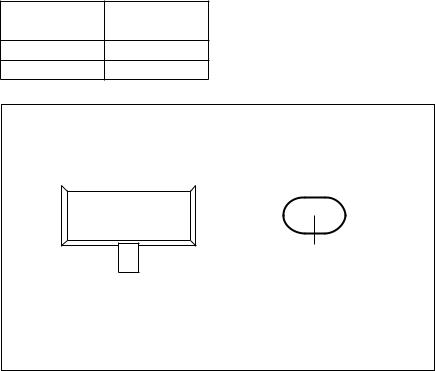

Fig.1 Simplified outline (SOT23) and symbol.
1996 Apr 04 |
2 |
Philips Semiconductors |
|
|
Product specification |
||
|
|
|
|
|
|
High-speed double diodes |
PMBD2835; PMBD2836 |
||||
|
|
|
|
|
|
LIMITING VALUES |
|
|
|
|
|
In accordance with the Absolute Maximum Rating System (IEC 134). |
|
|
|
||
|
|
|
|
|
|
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
Per diode |
|
|
|
|
|
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
|
|
|
|
PMBD2835 |
|
− |
85 |
V |
|
PMBD2836 |
|
− |
85 |
V |
|
|
|
|
|
|
VR |
continuous reverse voltage |
|
|
|
|
|
PMBD2835 |
|
− |
35 |
V |
|
PMBD2836 |
|
− |
75 |
V |
|
|
|
|
|
|
IF |
continuous forward current |
single diode loaded; see Fig.2; |
− |
215 |
mA |
|
|
note 1 |
|
|
|
|
|
|
|
|
|
|
|
double diode loaded; see Fig.2; |
− |
125 |
mA |
|
|
note 1 |
|
|
|
|
|
|
|
|
|
IFRM |
repetitive peak forward current |
|
|
450 |
mA |
IFSM |
non-repetitive peak forward current |
square wave; Tj = 25 °C prior to |
|
|
|
|
|
surge; see Fig.4 |
|
|
|
|
|
t = 1 μs |
− |
4 |
A |
|
|
t = 1 ms |
− |
1 |
A |
|
|
t = 1 s |
− |
0.5 |
A |
|
|
|
|
|
|
Ptot |
total power dissipation |
Tamb = 25 °C; note 1 |
− |
250 |
mW |
Tstg |
storage temperature |
|
−65 |
+150 |
°C |
Tj |
junction temperature |
|
− |
150 |
°C |
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 04 |
3 |
Philips Semiconductors |
|
|
|
Product specification |
||
|
|
|
|
|
|
|
High-speed double diodes |
|
PMBD2835; PMBD2836 |
||||
|
|
|
|
|
|
|
ELECTRICAL CHARACTERISTICS |
|
|
|
|
|
|
Tj = 25 °C; unless otherwise specified. |
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
|
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
|
Per diode |
|
|
|
|
|
|
|
|
|
|
|
|
|
VF |
forward voltage |
see Fig.3 |
|
|
|
|
|
|
IF = 1 mA |
− |
715 |
mV |
|
|
|
IF = 10 mA |
− |
855 |
mV |
|
|
|
IF = 50 mA |
− |
1 |
V |
|
|
|
IF = 150 mA |
− |
1.25 |
V |
|
IR |
reverse current |
see Fig.5 |
|
|
|
|
|
PMBD2835 |
VR = 30 V |
− |
100 |
nA |
|
|
|
VR = 30 V; Tj = 150 °C; |
− |
40 |
μA |
|
|
PMBD2836 |
VR = 50 V |
− |
100 |
nA |
|
|
|
VR = 50 V; Tj = 150 °C |
− |
50 |
μA |
|
Cd |
diode capacitance |
f = 1 MHz; VR = 0; see Fig.6 |
− |
2.5 |
pF |
|
trr |
reverse recovery time |
when switched from IF = 10 mA to |
− |
4 |
ns |
|
|
|
IR = 10 mA; RL = 100 Ω; |
|
|
|
|
|
|
measured at IR = 1 mA; see Fig.7 |
|
|
|
|
Vfr |
forward recovery voltage |
when switched from IF = 10 mA; |
− |
1.75 |
V |
|
|
|
tr = 20 ns; see Fig.8 |
|
|
|
|
THERMAL CHARACTERISTICS |
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
|
CONDITIONS |
|
VALUE |
UNIT |
|
|
|
|
|
|
|
Rth j-tp |
thermal resistance from junction to tie-point |
|
|
360 |
K/W |
|
Rth j-a |
thermal resistance from junction to ambient |
note 1 |
|
500 |
K/W |
|
Note
1. Device mounted on an FR4 printed-circuit board.
1996 Apr 04 |
4 |
Philips Semiconductors |
Product specification |
|
|
High-speed double diodes |
PMBD2835; PMBD2836 |
|
|
GRAPHICAL DATA |
|
MBD033
300
I F (mA)
200
single diode loaded
double diode loaded
100
0
0 |
100 |
Tamb ( oC) |
200 |
Device mounted on an FR4 printed-circuit board.

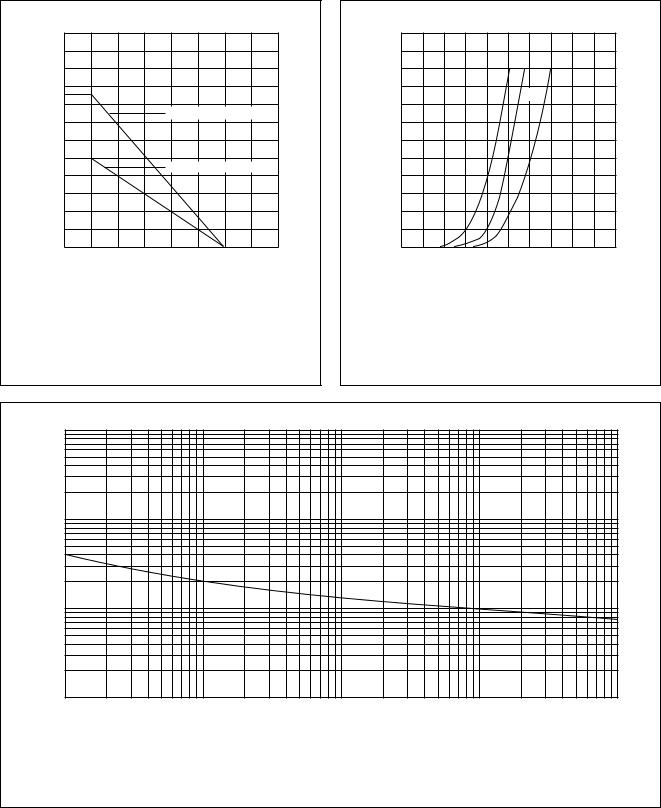

Fig.2 Maximum permissible continuous forward current as a function of ambient temperature.
MBG382
300 handbook, halfpage
IF (mA)
(1) |
(2) |
(3) |
200
100
0
0 |
1 |
VF |
(V) |
2 |
|
|
|
(1)Tj = 150 °C; typical values.
(2)Tj = 25 °C; typical values.
(3)Tj = 25 °C; maximum values.
Fig.3 Forward current as a function of forward voltage.
MBG704
102 handbook, full pagewidth
IFSM
(A)
10
1
10−1
1 |
10 |
102 |
103 |
tp (μs) |
104 |
|
|
|
|
|
Based on square wave currents.
Tj = 25 °C prior to surge.
Fig.4 Maximum permissible non-repetitive peak forward current as a function of pulse duration.
