DISCRETE SEMICONDUCTORS
BGY148A; BGY148B
UHF amplifier modules
Preliminary specification |
|
1996 May 20 |
|||||
File under Discrete Semiconductors, SC09 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Philips Semiconductors |
Preliminary specification |
|
|
|
|
UHF amplifier modules |
BGY148A; BGY148B |
|
|
|
|
FEATURES
·Single 6 V nominal supply voltage
·3 W output power
·Easy control of output power by DC voltage
·Silicon bipolar technology
·Standby current less than 100 mA.
APPLICATIONS
·Portable communication equipment operating in the 400 to 440 MHz and 430 to 488 MHz frequency ranges respectively.
DESCRIPTION
The BGY148A and BGY148B are three-stage UHF amplifier modules in a SOT421A package. Each module consists of three NPN silicon planar transistor dies mounted together with matching and bias circuit components on a metallized ceramic substrate. The modules produce an output power of 3 W into a load of 50 W with an RF power of 10 mW.
QUICK REFERENCE DATA
RF performance at Tmb = 25 °C.
PINNING - SOT421A
PIN |
DESCRIPTION |
1RF input
2VC
3VS
4RF output
Flange ground
handbook, halfpage
1 |
2 |
3 |
4 |
Top view |
|
|
MSA483 |

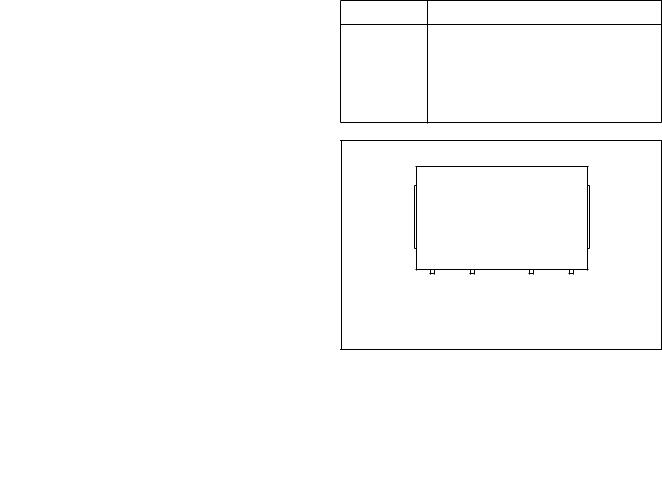

Fig.1 Simplified outline.
TYPE |
MODE OF |
f |
VS |
PL |
Gp |
h |
ZS; ZL |
|
OPERATION |
(MHz) |
(V) |
(W) |
(dB) |
(%) |
(W) |
||
|
||||||||
|
|
|
|
|
|
|
|
|
BGY148A |
CW |
400 to 440 |
6 |
³3 |
³24.8 |
typ. 53 |
50 |
|
|
|
|
|
|
|
|
|
|
BGY148B |
CW |
430 to 488 |
6 |
³3 |
³24.8 |
typ. 53 |
50 |
|
|
|
|
|
|
|
|
|
1996 May 20 |
2 |
Philips Semiconductors |
|
|
Preliminary specification |
|||
|
|
|
|
|
|
|
UHF amplifier modules |
BGY148A; BGY148B |
|||||
|
|
|
|
|
|
|
LIMITING VALUES |
|
|
|
|
|
|
In accordance with the Absolute Maximum Rating System (IEC 134). |
|
|
|
|
|
|
|
|
|
|
|
|
|
SYMBOL |
PARAMETER |
|
MIN. |
|
MAX. |
UNIT |
|
|
|
|
|
|
|
VS |
DC supply voltage |
|
− |
|
8.5 |
V |
VC |
DC control voltage |
|
− |
|
4 |
V |
PD |
input drive power |
|
− |
|
20 |
mW |
PL |
load power |
|
− |
|
3.5 |
W |
Tstg |
storage temperature |
|
−40 |
|
+100 |
°C |
Tmb |
operating mounting-base temperature |
|
−30 |
|
+100 |
°C |
CHARACTERISTICS
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; VC ≤ 3.5 V; Tmb = 25 °C; unless otherwise specified.
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
|
|
|
|
|
|
|
f |
frequency range |
|
|
|
|
|
|
BGY148A |
|
400 |
− |
440 |
MHz |
|
BGY148B |
|
430 |
− |
488 |
MHz |
|
|
|
|
|
|
|
IQ |
total quiescent current |
VC = 0; PD = 0 |
− |
− |
100 |
μA |
IC |
control current |
adjust VC for PL = 3 W |
− |
− |
500 |
μA |
PL |
load power |
|
3 |
− |
− |
W |
Gp |
power gain |
adjust VC for PL = 3 W |
24.8 |
− |
− |
dB |
η |
efficiency |
adjust VC for PL = 3 W |
46 |
53 |
− |
% |
H2 |
second harmonic |
adjust VC for PL = 3 W |
− |
− |
−38 |
dBc |
H3 |
third harmonic |
adjust VC for PL = 3 W |
− |
− |
−38 |
dBc |
VSWRin |
input VSWR |
adjust VC for PL = 3 W |
− |
− |
3 : 1 |
|
|
control range |
VC = 0 to 3.5 V |
10 |
− |
− |
dB |
|
stability |
PD = 5 to 20 mW; VS = 5 to 8.5 V; |
− |
− |
−60 |
dBc |
|
|
PL ≤ 3.5 W; |
|
|
|
|
|
|
VSWR ≤ 4 : 1 through all phases |
|
|
|
|
|
|
|
|
|
|
|
|
ruggedness |
VS = 8.5 V; adjust VC for PL = 3.5 W; |
no degradation |
|
||
|
|
VSWR ≤ 4 : 1 through all phases |
|
|
|
|
|
|
|
|
|
|
|
1996 May 20 |
3 |
Philips Semiconductors |
Preliminary specification |
|
|
UHF amplifier modules |
BGY148A; BGY148B |
|
|
5 |
|
|
|
MGD553 |
|
|
|
|
|
handbook, halfpage |
|
|
|
|
PL |
|
|
|
|
(W) |
|
|
400 MHz |
|
4 |
|
|
|
|
|
|
|
440 MHz |
|
3 |
|
|
|
|
2 |
|
|
|
|
1 |
|
|
|
|
0 |
|
|
|
|
0 |
1 |
2 |
3 |
4 |
|
|
|
VC (V) |
|
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; Tmb = 25 °C.

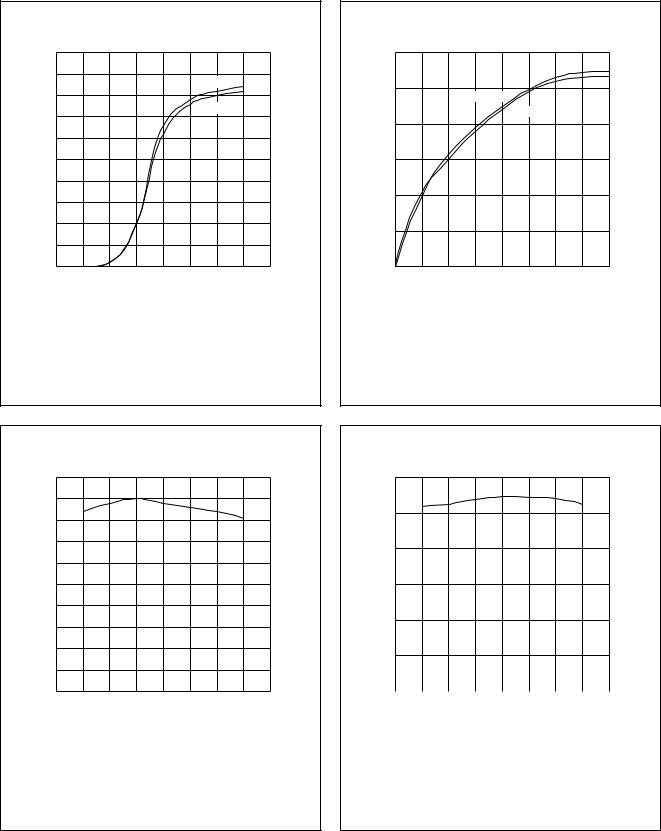

Fig.2 Load power as a function of control voltage; BGY148A; typical values.
60 |
|
|
|
MGD554 |
|
|
|
|
|
handbook, halfpage |
|
|
|
|
η |
|
|
|
|
(%) |
|
440 MHz |
|
|
|
|
|
|
|
|
|
|
400 MHz |
|
40 |
|
|
|
|
20 |
|
|
|
|
0 |
|
|
|
|
0 |
1 |
2 |
3 |
4 |
|
|
|
|
PL (W) |
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; Tmb = 25 °C.
Fig.3 Efficiency as a function of load power; BGY148A; typical values.
MGD555
5 handbook, halfpage
PL
(W)
4
3
2
1
0
380 |
400 |
420 |
440 |
460 |
|
|
|
|
f (MHz) |
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; VC = 3.5 V; Tmb = 25 °C.
Fig.4 Load power as a function of frequency; BGY148A; typical values.
MGD556
60 handbook, halfpage
η
(%)
40
20
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
380 |
400 |
420 |
440 |
460 |
||
|
|
|
|
|
f (MHz) |
|
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; PL = 3 W; Tmb = 25 °C.
Fig.5 Efficiency as a function of frequency; BGY148A; typical values.
1996 May 20 |
4 |
Philips Semiconductors |
Preliminary specification |
|
|
UHF amplifier modules |
BGY148A; BGY148B |
|
|
4 |
|
|
|
MGD557 |
|
|
|
3.0 |
|
handbook, halfpage |
|
|
|
|
VC |
|
|
|
VSWRin |
(V) |
|
|
|
|
|
|
|
|
|
3 |
|
|
|
2.5 |
|
VSWRin |
|
|
|
2 |
|
|
|
2.0 |
|
VC |
|
|
|
1 |
|
|
|
1.5 |
0 |
|
|
|
1.0 |
380 |
400 |
420 |
440 |
460 |
f (MHz)
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; PL = 3 W; Tmb = 25 °C.

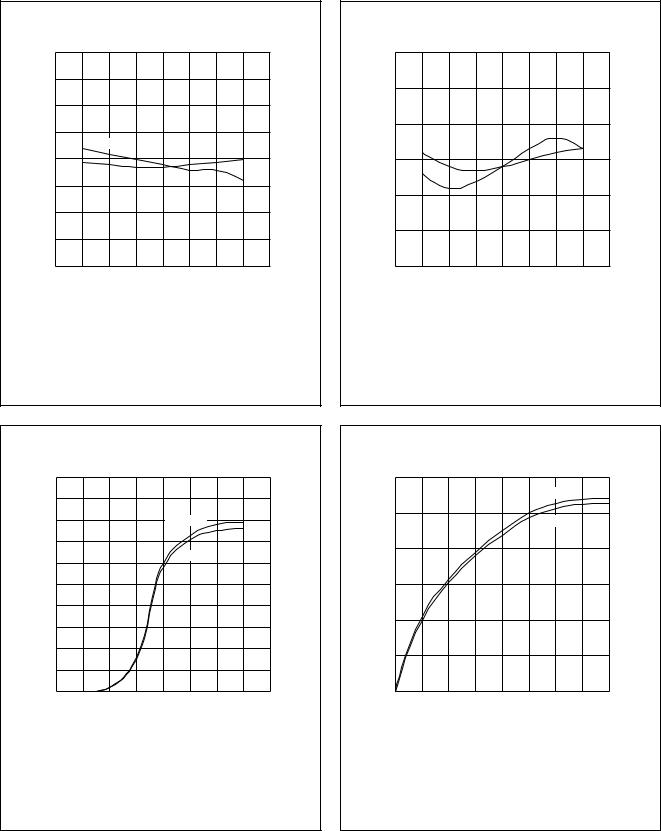

Fig.6 Control voltage and input VSWR as functions of frequency; BGY148A; typical values.
−30 |
|
|
|
MGD558 |
|
|
|
|
|
H2, H3 |
|
|
|
|
(dBc) |
|
|
|
|
−40 |
|
|
|
|
|
|
|
H3 |
|
|
|
|
H2 |
|
−50 |
|
|
|
|
−60 |
|
|
|
|
380 |
400 |
420 |
440 |
460 |
f (MHz)
ZS = ZL = 50 Ω; PD = 2 mW; VS = 4.8 V; PL = 3 W; Tmb = 25 °C.
Fig.7 Harmonics as a function of frequency; BGY148A; typical values.
5 |
|
|
|
MGD559 |
|
|
|
|
|
handbook, halfpage |
|
|
|
|
PL |
|
|
|
|
(W) |
|
|
|
|
4 |
|
|
430 MHz |
|
3 |
|
|
488 MHz |
|
|
|
|
|
|
2 |
|
|
|
|
1 |
|
|
|
|
0 |
|
|
|
|
0 |
1 |
2 |
3 |
4 |
|
|
|
|
VC (V) |
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; Tmb = 25 °C.
Fig.8 Load power as a function of control voltage; BGY148B; typical values.
60 |
|
|
|
MGD560 |
|
|
|
|
|
handbook, halfpage |
|
|
430 MHz |
|
η |
|
|
|
|
|
|
|
|
|
(%) |
|
|
488 MHz |
|
|
|
|
|
|
40 |
|
|
|
|
20 |
|
|
|
|
0 |
|
|
|
|
0 |
1 |
2 |
3 |
4 |
|
|
|
PL (W) |
|
ZS = ZL = 50 Ω; PD = 10 mW; VS = 6 V; Tmb = 25 °C.
Fig.9 Efficiency as a function of load power; BGY148B; typical values.
