M2764A

Table 8. Programming Mode DC Characteristics (1)

(TA = 25 °C; VCC = 6V ± 0.25V; VPP = 12.5V ± 0.3V)

Symbol

Parameter

Test Condition

Min

Max

Units

ILI

Input Leakage Current

VIL ≤ VIN ≤ VIH



±10

μA

ICC

Supply Current





75

mA

IPP

Program Current

E = VIL



50

mA

VIL

Input Low Voltage



±0.1

0.8

V

VIH

Input High Voltage



2

VCC + 1

V

VOL

Output Low Voltage

IOL = 2.1mA



0.45

V

VOH

Output High Voltage

IOH = ±400μA

2.4



V

VA9

A9 Voltage



11.5

12.5

V

Note: 1. VCC must be applied simultaneously with or before VPP and removed simultaneously or after VPP.

Table 9. Programming Mode AC Characteristics (1)

(TA = 25 °C; VCC = 6V ± 0.25V; VPP = 12.5V ± 0.3V)

Symbol Alt

tAVPL tAS

tQVPL tDS

tVPHPL tVPS

tVCHPL tVCS

tELPL tCES

tPLPH tPW

tPLPH tOPW

tPHQX tDH

tQXGL tOES

tGLQV tOE

(4)

tGHQZ tDFP

tGHAX tAH

Parameter

Address Valid to Program Low

Input Valid to Program Low

VPP High to Program Low

VCC High to Program Low

Chip Enable Low to Program Low

Program Pulse Width (Initial)

Program Pulse Width (Overprogram)

Program High to Input

Transition

Input Transition to Output Enable Low

Output Enable Low to Output Valid

Output Enable High to Output Hi-Z

Output Enable High to Address Transition

Test Condition

Min

Max

Units



2



μs



2



μs



2



μs



2



μs



2



μs

Note 2

0.95

1.05

ms

Note 3

2.85

78.75

ms



2



μs



2



μs





150

ns



0

130

ns



0



ns

Notes: 1. VCC must be applied simultaneously with or before VPP and removed simultaneously or after VPP.

2.The Initial Program Pulse width tolerance is 1 ms ± 5%.

3.The length of the Over-program Pulse varies from 2.85 ms to 78.95 ms, depending of the multiplication value of the iteration counter.

4.Sampled only, not 100% tested.

6/10

M2764A

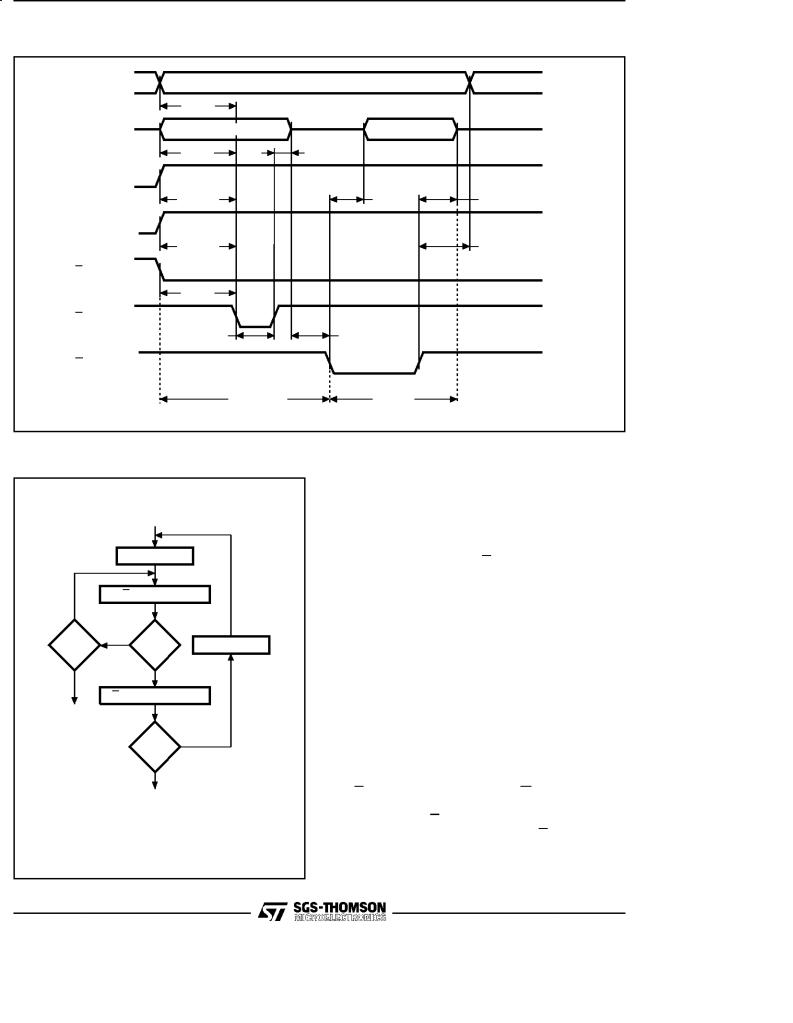

Figure 6. Programming and Verify Modes AC Waveforms

A0-A12



VALID











tAVPL





Q0-Q7

DATA IN

DATA OUT





tQVPL

tPHQX



VPP









tVPHPL

tGLQV

tGHQZ

VCC









tVCHPL



tGHAX

E









tELPL





P









tPLPH

tQXGL



G









PROGRAM

VERIFY









AI00779

Figure 7. Fast Programming Flowchart



VCC = 6V, VPP = 12.5V





n = 1





P = 1ms Pulse



NO





++n

NO

++ Addr

> 25

VERIFY





YES

YES



P = 3ms Pulse by n

FAIL

Last NO

Addr

YES

CHECK ALL BYTES

VCC = 5V, VPP 5V

AI00775B

DEVICE OPERATION (cont'd)

been successfully programmed. A flowchart of the M2764A Fast Programming Algorithm is shown on the last page. The Fast Programming Algorithm utilizes two different pulse types: initial and overprogram.

The duration of the initial P pulse(s) is 1ms, which will then be followed by a longer overprogrampulse of length 3ms by n (n is equal to the number of the initial one millisecond pulses applied to a particular M2764A location), before a correct verify occurs. Up to 25 one-millisecond pulses per byte are provided for before the overprogram pulse is applied.

The entire sequence of program pulses and byte verifications is performed at VCC = 6V and VPP = 12.5V.When the Fast Programming cycle has been completed, all bytes should be compared to the original data with VCC = 5V and VPP = 5V.

Program Inhibit

Programming of multiple M2764A in parallel with different data is also easily accomplished. Except for E, all like inputs (including G) of the parallel M2764A may be common. A TTL low pulse applied to a M2764A's E input, with VPP at 12.5V, will program that M2764A. A high level E input inhibits the other M2764As from being programmed.

7/10

M2764A

Program Verify

A verify should be performed on the programmed bits to determine that they were correctly programmed. The verify is accomplished with G = VIL, E = VIL, P = VIH and VPP = 12.5V.

Electronic Signature

The Electronic Signature mode allows the reading out of a binary code from an EPROM that will identify its manufacturer and type. This mode is intended for use by programming equipment to automatically match the device to be programmed with its corresponding programming algorithm. This mode is functional in the 25°C ± 5°C ambient temperature range that is required when programming the M2764A.

To activate this mode, the programming equipment must force 11.5V to 12.5V on address line A9 of the M2764A. Two identifier bytes may then be sequenced from the device outputs by toggling address line A0 from VIL to VIH. All other address lines must be held at VIL during Electronic Signature mode. Byte 0 (A0 = VIL) represents the manufacturer code and byte 1 (A0 = VIH) the deviceidentifier code. For the SGS-THOMSON M2764A, these two identifier bytes are given below.

ERASURE OPERATION (applies to UV EPPROM)

The erasure characteristic of the M2764A is such that erasure begins when the cells are exposed to light with wavelengths shorter than approximately 4000 Å. It should be noted that sunlight and some type of fluorescent lamps have wavelengths in the 3000-4000 Å range. Research shows that constant exposure to room level fluorescent lighting could erase a typical M2764A in about 3 years, while it would take approximately 1 week to cause erasure when exposed to direct sunlight. If the M2764A is to be exposed to these types of lighting conditions for extended periods of time, it is suggested that opaque labels be put over the M2764A window to prevent unintentional erasure. The recommended erasure procedure for the M2764A is exposure to short wave ultraviolet light which has wavelength 2537 Å. The integrated dose (i.e. UV intensity x exposure time) for erasure should be a minimum of 15 W-sec/cm2. Theerasure time with this dosage is approximately 15 to 20 minutes using an ultraviolet lamp with 12000 μW/cm2 power rating. The M2764A should be placed within 2.5 cm (1 inch) of the lamp tubes during the erasure. Some lamps have a filter on their tubes which should be removed before erasure.

ORDERING INFORMATION SCHEME

Example:

M2764A

-1 F 1

Speed and VCC Tolerance



Package

Temperature Range

-1

180 ns, 5V ±5%

F

FDIP28W

1

0 to 70 °

-2

200 ns, 5V ±5%





6

±40 to 85 °C

blank

250 ns, 5V ±5%









-3

300 ns, 5V

±5%









-4

450 ns, 5V

±5%









-20

200 ns, 5V

±10%









-25

250 ns, 5V

±10%









For a list of available options (Speed, VCC Tolerance, Package, etc...) refer to the current Memory Shortform catalogue.

For further information on any aspect of this device, please contact SGS-THOMSON Sales Office nearest to you.

8/10

M2764A

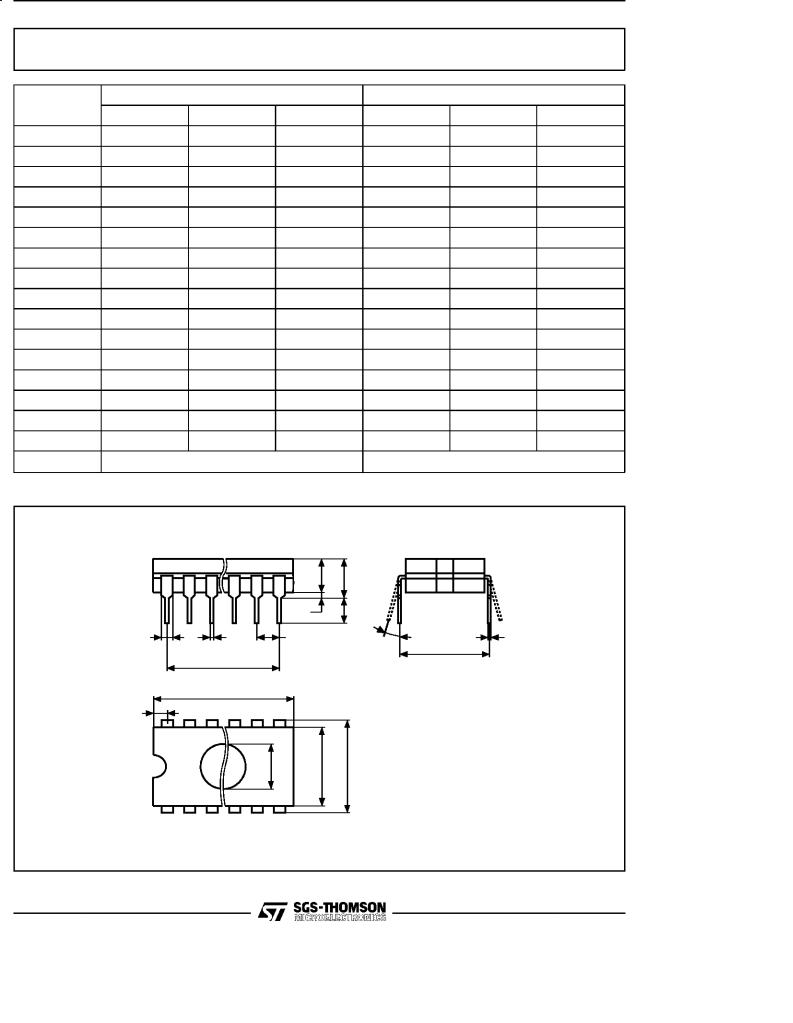

FDIP28W - 28 pin Ceramic Frit-seal DIP, with window

Symb



mm





inches



Typ

Min

Max

Typ

Min

Max



A





5.71





0.225

A1



0.50

1.78



0.020

0.070

A2



3.90

5.08



0.154

0.200

B



0.40

0.55



0.016

0.022

B1



1.17

1.42



0.046

0.056

C



0.22

0.31



0.009

0.012

D





38.10





1.500

E



15.40

15.80



0.606

0.622

E1



13.05

13.36



0.514

0.526

e1

2.54

±

±

0.100

±

±

e3

33.02

±

±

1.300

±

±

eA



16.17

18.32



0.637

0.721

L



3.18

4.10



0.125

0.161

S



1.52

2.49



0.060

0.098



7.11

±

±

0.280

±

±

α



4°

15°



4°

15°

N



28





28



FDIP28W





A2

A







A1

L



B1

B

e1

α

C



e3





eA











D









S









N











E1

E





1







FDIPW-a

Drawing is not to scale

9/10

M2764A

Information furnished is believed to be accurate and reliable. However, SGS-THOMSON Microelectronics assumes no responsibility for the consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is granted by implication or otherwise under any patent or patent rights of SGS-THOMSON Microelectronics. Specifications mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously supplied. SGS-THOMSON Microelectronics products are not authorized for use as critical components in life support devices or systems without express written approval of SGS-THOMSON Microelectronics.

1995 SGS-THOMSON Microelectronics - All Rights Reserved

SGS-THOMSON Microelectronics GROUP OF COMPANIES

Australia - Brazil - China - France - Germany - Hong Kong - Italy - Japan - Korea - Malaysia - Malta - Morocco - The Netherlands -

Singapore - Spain - Sweden - Switzerland - Taiwan - Thailand - United Kingdom - U.S.A.

10/10
