Philips Semiconductors Product specification

Rectifier diode













































BY359F-1500



fast, high-voltage









































































































GENERAL DESCRIPTION

QUICK REFERENCE DATA









































































Glass-passivated double diffused



SYMBOL

PARAMETER



















MAX.







UNIT



rectifier diode in a full pack plastic





































































































































envelope

featuring low forward



VRRM









Repetitive peak reverse voltage







1500







V



voltage drop, fast reverse recovery



VF









Forward voltage

















1.5







V



and soft recovery characteristic. The



IF(AV)









Average forward current

















10









A



device

is intended for use in TV



IFSM









Non-repetitive peak forward current







60









A



receivers, series resonant switched



trr









Reverse recovery time

















0.6







μs



mode power supplies and other high



































































voltage circuits.



































































PINNING - SOD100

PIN CONFIGURATION

SYMBOL













































































































PIN









DESCRIPTION











case































































































































































































































































1





cathode







































































































a









k













2





anode































































































































































































case





isolated







































































































































































1



2



























































































































LIMITING VALUES



































































Limiting values in accordance with the Absolute Maximum System (IEC 134).





































SYMBOL



PARAMETER







CONDITIONS





MIN.





MAX.



UNIT





















































































VRSM









Non-repetitive peak reverse

































-









1500









V















voltage





































































VRRM









Repetitive peak reverse voltage































-









1500









V





VRWM









Crest working reverse voltage



sinusoidal; a = 1.57; T 54 ˚C



-









1300









V





I









Average forward current1









-









10









A





F(AV)









































hs





































IF(RMS)









RMS forward current



































-









15.7









A





IFRM









Repetitive peak forward current



sinusoidal; a = 1.57



-









60









A





IFSM









Non-repetitive peak forward



t = 10 ms















-









60









A















current







t = 8.3 ms















-









66









A



























half sine wave; Tj = 150 ˚C prior to





























I2t









I2t for fusing







surge; with reapplied VRWM(max)





-









18









A2s



















t = 10 ms



































Tstg









Storage temperature



































-40





150









˚C





Tj









Operating junction temperature































-









150









˚C



ISOLATION



































































Ths = 25 ˚C unless otherwise specified





































































SYMBOL



PARAMETER









CONDITIONS





MIN.



TYP.





MAX.



UNIT









































































Visol









Repetitive peak voltage from



R.H. 65% ; clean and dustfree



-





-





1500







V















both terminals to external















































































heatsink





































































Cisol









Capacitance from cathode to



f = 1 MHz















-





12



-









pF















external heatsink



































































1 Neglecting switching and reverse current losses.

October 1994

1

Rev 1.100

Philips Semiconductors Product specification

Rectifier diode







BY359F-1500



fast, high-voltage































THERMAL RESISTANCES































SYMBOL

PARAMETER

CONDITIONS

MIN.

TYP.

MAX.

UNIT



















Rth j-hs

Thermal resistance junction to

with heatsink compound

-

-

4.8

K/W





heatsink

without heatsink compound

-

-

5.9

K/W



Rth j-a

Thermal resistance junction to

in free air.



-

55

-

K/W





ambient















STATIC CHARACTERISTICS















Tj = 25 ˚C unless otherwise stated















SYMBOL

PARAMETER

CONDITIONS

MIN.

TYP.

MAX.

UNIT





















VF

Forward voltage

IF = 20 A



-

1.3

1.8

V







IF = 10 A; Tj = 150˚C

-

1.00

1.5

V



IR

Reverse current

VR = 1300 V

-

10

100

mA







VR = 1300 V; Tj = 100 ˚C

-

50

300

mA



DYNAMIC CHARACTERISTICS















Tj = 25 ˚C unless otherwise stated















SYMBOL

PARAMETER

CONDITIONS

MIN.

TYP.

MAX.

UNIT





















trr

Reverse recovery time

IF = 2 A; VR

³ 30 V; -dIF/dt = 20 A/ms

-

0.47

0.6

ms



Qs

Reverse recovery charge

IF = 2 A; VR

³ 30 V; -dIF/dt = 20 A/ms

-

1.6

2.0

mC



Vfr

Peak forward recovery voltage

IF = 10 A; dIF/dt = 30 A/ms

-

11.0

-

V



October 1994

2

Rev 1.100

Philips Semiconductors

Product specification





Rectifier diode

BY359F-1500

fast, high-voltage







I



dI







F





F



dt



















trr











time





Qs

25%

100%









I

I







R









rrm







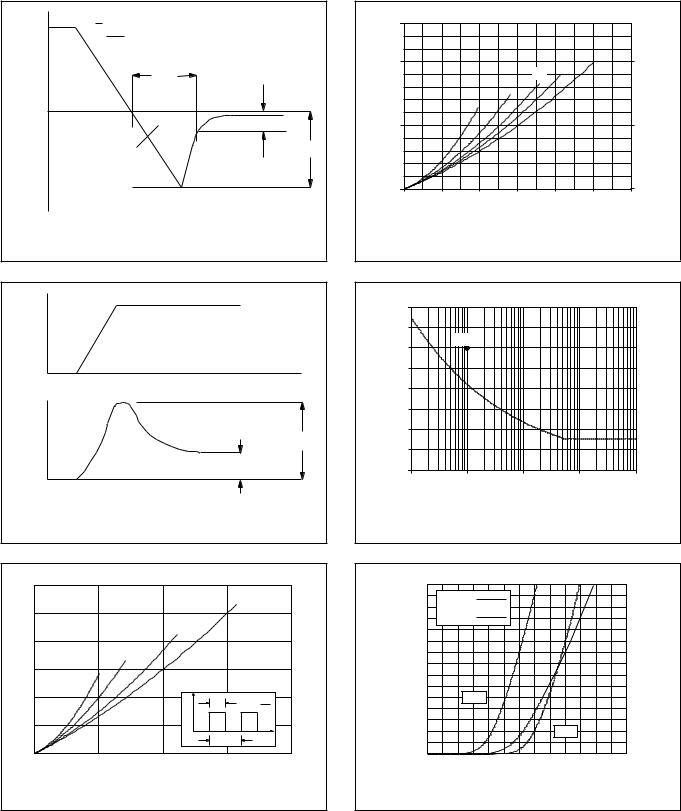

Fig.1.

Definition of trr, Qs and Irrm



I F

time

V F

V fr

V F

time

Fig.2. Definition of Vfr

30

PF / W

BY359



Ths(max) / C





Vo = 1.1600 V





D = 1.0









Rs = 0.0340 Ohms









25













30







0.5









20





0.2







54















15



0.1









78













10





I

tp

D =

tp

102









T



5













126











T

t

















0

0

5

10



15



150







20







IF(AV) / A









Fig.3. Maximum forward dissipation PF = f(IF(AV)); square wave where IF(AV) =IF(RMS) x ÖD.

PF / W





BY359X



Ths(max) / C

20









a = 1.57

54







1.9









2.2























2.8











4









10











102

0











150

0

2

4

6

8

10

12







IF(AV) / A







Fig.4. Maximum forward dissipation PF = f(IF(AV)); sinusoidal current waveform where a = form factor = IF(RMS) / IF(AV).

IFS(RMS) / A





BY359

80









70









60

IFSM















50









40









30









20









10









0









1ms

10ms

0.1s

1s

10s

tp / s

Fig.5. Maximum non-repetitive rms forward current. IF = f(tp); sinusoidal current waveform; Tj = 150˚C prior to surge with reapplied VRWM.

IF / A



30







Tj=150C





Tj=25C



20





10

typ







max

0

1.0

2.0

0





VF / V

Fig.6. Typical and maximum forward characteristic IF = f(VF); parameter Tj

October 1994

3

Rev 1.100

Philips Semiconductors

Product specification





Rectifier diode

BY359F-1500

fast, high-voltage







10 trr / us







1.0





IF =













10A







5A







2A







1A

0.1







1.0

10

-dIF/dt (A/us)

100

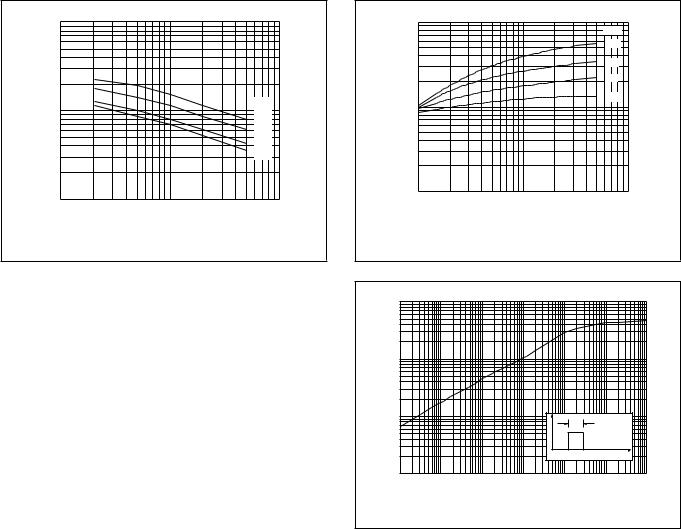

Fig.7. Maximum reverse recovery time trr = f(dIF/dt);



parameter Tj



10

Qs / uC











IF =







10A







5A







2A

1.0





1A







0.1







1.0

10

100





-dIF/dt (A/us)



Fig.8. Maximum reverse recovery charge Qs = f(dIF/dt); parameter Tj

10

Zth j-hs / (K/W)











1















0.1







PD

tp































t

0.01















10us

100us

1ms

10ms

0.1s

1s

10s









tp / s







Fig.9. Transient thermal impedance Zth = f(tp)

October 1994

4

Rev 1.100

Philips Semiconductors Product specification

Rectifier diode

BY359F-1500

fast, high-voltage

MECHANICAL DATA

Dimensions in mm



10.2



Net Mass: 2 g

max





5.7





max

0.9



3.2

0.5



3.0



4.4

4.0

seating plane

3.5 max

4.4

not tinned





13.5 min

k a

0.4M 0.9

0.7

5.08

4.4 max

2.9 max

7.9

7.5

17 max

0.55 max

1.3

top view

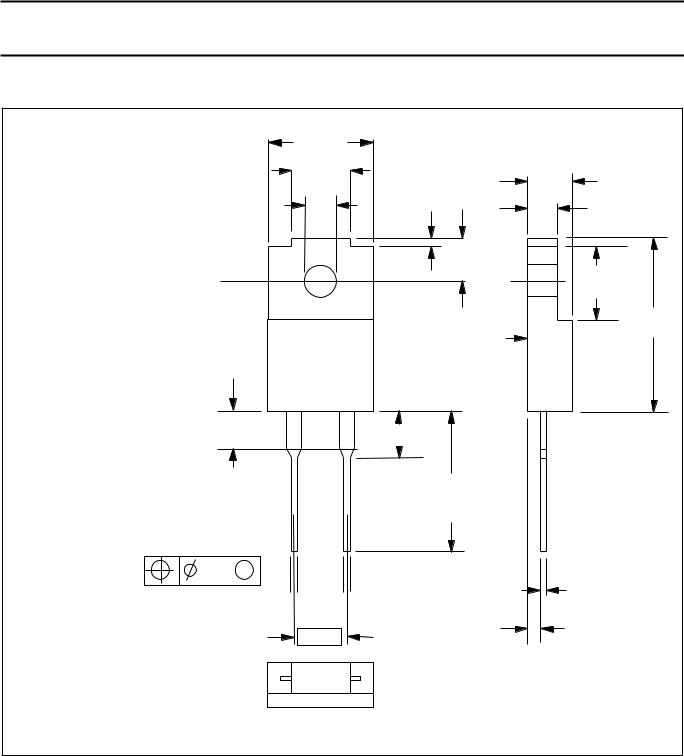

Fig.10. SOD100; The seating plane is electrically isolated from all terminals.

Notes

1.Accessories supplied on request: refer to mounting instructions for F-pack envelopes.

2.Epoxy meets UL94 V0 at 1/8".

October 1994

5

Rev 1.100
