BYW95 series
Fast soft-recovery
controlled avalanche rectifiers
Product specification |
1996 Jun 07 |
Supersedes data of December 1979
File under Discrete Semiconductors, SC01
Philips Semiconductors |
Product specification |
|
|
|
|
Fast soft-recovery
BYW95 series
controlled avalanche rectifiers
FEATURES
∙Glass passivated
∙High maximum operating temperature
∙Low leakage current
∙Excellent stability
∙Guaranteed avalanche energy absorption capability
∙Available in ammo-pack
∙Also available with preformed leads for easy insertion.
DESCRIPTION |
construction. This package is |
|
Rugged glass SOD64 package, |
hermetically sealed and fatigue free |
|
as coefficients of expansion of all |
||
using a high temperature alloyed |
||
used parts are matched. |
||
|
||
k |
a |
|
2/3 page (Datasheet) |
|
|
|
MAM104 |

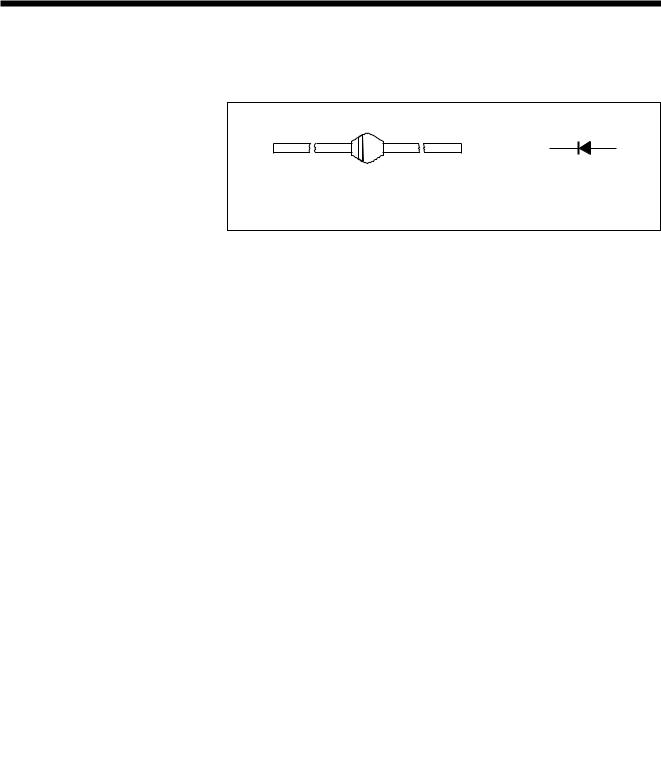

Fig.1 Simplified outline (SOD64) and symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 134).
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
MAX. |
UNIT |
|
|
|
|
|
|
VRRM |
repetitive peak reverse voltage |
|
|
|
|
|
BYW95A |
|
− |
200 |
V |
|
BYW95B |
|
− |
400 |
V |
|
BYW95C |
|
− |
600 |
V |
|
|
|
|
|
|
VR |
continuous reverse voltage |
|
|
|
|
|
BYW95A |
|
− |
200 |
V |
|
BYW95B |
|
− |
400 |
V |
|
BYW95C |
|
− |
600 |
V |
|
|
|
|
|
|
IF(AV) |
average forward current |
Ttp = 60 °C; lead length = 10 mm |
− |
3.00 |
A |
|
|
see Fig.2; |
|
|
|
|
|
averaged over any 20 ms period; |
|
|
|
|
|
see also Fig.6 |
|
|
|
|
|
|
|
|
|
|
|
Tamb = 65 °C; PCB mounting (see |
− |
1.25 |
A |
|
|
Fig.11); see Fig.3; |
|
|
|
|
|
averaged over any 20 ms period; |
|
|
|
|
|
see also Fig.6 |
|
|
|
|
|
|
|
|
|
IFRM |
repetitive peak forward current |
Ttp = 60 °C; see Fig.4 |
− |
30 |
A |
|
|
Tamb = 65 °C; see Fig.5 |
− |
13 |
A |
IFSM |
non-repetitive peak forward current |
t = 10 ms half sine wave; |
− |
70 |
A |
|
|
Tj = Tj max prior to surge; |
|
|
|
|
|
VR = VRRMmax |
|
|
|
ERSM |
non-repetitive peak reverse |
L = 120 mH; Tj = Tj max prior to |
− |
10 |
mJ |
|
avalanche energy |
surge; inductive load switched off |
|
|
|
|
|
|
|
|
|
Tstg |
storage temperature |
|
−65 |
+175 |
°C |
Tj |
junction temperature |
see Fig.7 |
−65 |
+175 |
°C |
1996 Jun 07 |
2 |
Philips Semiconductors |
Product specification |
|
|
Fast soft-recovery
BYW95 series
controlled avalanche rectifiers
ELECTRICAL CHARACTERISTICS
Tj = 25 °C unless otherwise specified.
SYMBOL |
PARAMETER |
CONDITIONS |
MIN. |
TYP. |
MAX. |
UNIT |
||||
|
|
|
|
|
|
|
|
|
|
|
VF |
forward voltage |
IF = 5 A; Tj = Tj max; see Fig.8 |
- |
- |
1.25 |
V |
||||
|
|
|
|
|
|
IF = 5 A; see Fig.8 |
- |
- |
1.50 |
V |
V(BR)R |
reverse avalanche |
IR = 0.1 mA |
|
|
|
|
||||
|
|
|
|
breakdown voltage |
|
|
|
|
|
|
|
|
|
|
BYW95A |
|
300 |
- |
- |
V |
|
|
|
|
|
BYW95B |
|
500 |
- |
- |
V |
|
|
|
|
|
BYW95C |
|
700 |
- |
- |
V |
|
|
|
|
|
|
|
|
|
|
|
|
IR |
reverse current |
VR = VRRMmax; |
- |
- |
1 |
mA |
||||
|
|
|
|
|
|
see Fig.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
VR = VRRMmax; Tj = 165 °C; |
- |
- |
150 |
mA |
|
|
|
|
|
|
see Fig.9 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
trr |
reverse recovery time |
when switched from IF = 0.5 A |
- |
- |
250 |
ns |
||||
|
|
|
|
|
|
to IR = 1 A; measured at |
|
|
|
|
|
|
|
|
|
|
IR = 0.25 A; see Fig.12 |
|
|
|
|
Cd |
diode capacitance |
f = 1 MHz; VR = 0 V; see Fig.10 |
- |
85 |
- |
pF |
||||
|
dIR |
|
|
maximum slope of |
when switched from IF = 1 A to |
- |
- |
7 |
A/ms |
|
|
|
|||||||||
|
-------- |
|
|
reverse recovery current |
VR ³ 30 V and dIF/dt = -1 A/ms; |
|
|
|
|
|
|
dt |
|
|
|
|
see Fig.13 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
THERMAL CHARACTERISTICS |
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|||
SYMBOL |
PARAMETER |
CONDITIONS |
VALUE |
UNIT |
||||||
|
|
|
|
|
|
|
|
|||
Rth j-tp |
thermal resistance from junction to tie-point |
lead length = 10 mm |
25 |
K/W |
||||||
Rth j-a |
thermal resistance from junction to ambient |
note 1 |
|
75 |
K/W |
|||||
Note
1.Device mounted on an epoxy-glass printed-circuit board, 1.5 mm thick; thickness of Cu-layer ³40 mm, see Fig.11. For more information please refer to the ‘General Part of Handbook SC01.’
1996 Jun 07 |
3 |
Philips Semiconductors |
Product specification |
|
|
Fast soft-recovery
BYW95 series
controlled avalanche rectifiers

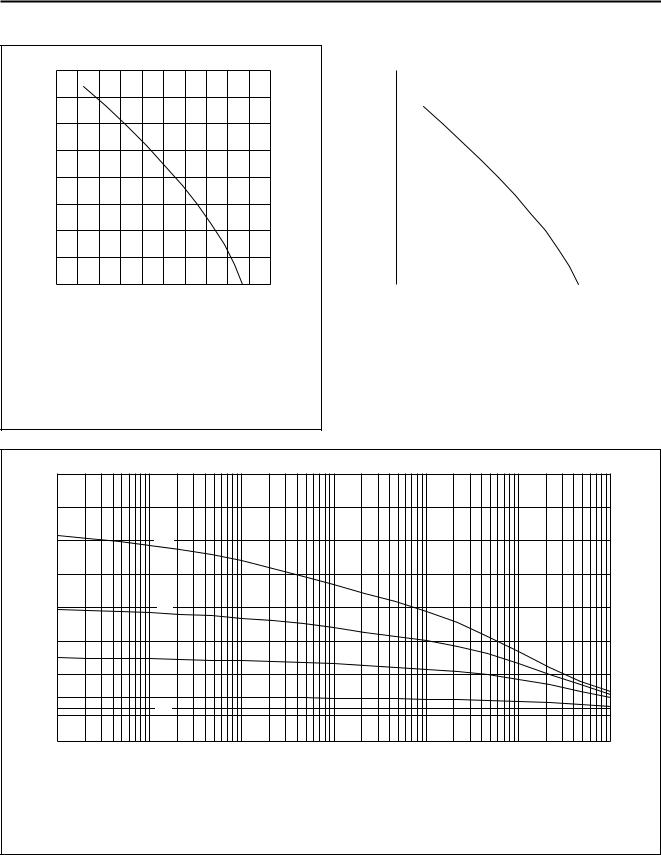

GRAPHICAL DATA
MGC609
4 handbook, halfpage
IF(AV)
(A)
3
2
1
0
0 |
100 |
200 |
|
|
Ttp (oC) |
a = 1.42; VR = VRRMmax; δ = 0.5. Switched mode application.
Fig.2 Maximum permissible average forward current as a function of tie-point temperature (including losses due to reverse leakage).
2.0 |
|
|
|
|
|
|
|
|
|
|
MGC608 |
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
handbook, halfpage |
|
|
|
|
|
|
|
|
|
|
|
||
IF(AV) |
|
|
|
|
|
|
|
|
|
|
|
|
|
(A) |
|
|
|
|
|
|
|
|
|
|
|
|
|
1.6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.8 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.4 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
100 |
|
|
|
|
|
|
||||||
0 |
Tamb (oC) |
200 |
|||||||||||
a = 1.42; VR = VRRMmax; δ = 0.5. |
|
|
|
|
|
|
|||||||
Device mounted as shown in Fig.11. |
|
|
|
|
|
|
|||||||
Switched mode application. |
|
|
|
|
|
|
|||||||
Fig.3 |
Maximum permissible average forward |
||||||||||||
|
|
current as a function of ambient temperature |
|||||||||||
|
|
(including losses due to reverse leakage). |
|||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
40 |
|
|
|
|
|
MGC606 |
|
|
|
|
|
|
|
|
|
handbook, full pagewidth |
|
|
|
|
|
|
|
I FRM |
|
|
|
|
|
|
|
(A) |
|
|
|
|
|
|
|
|
δ = |
|
|
|
|
|
|
30 |
0.05 |
|
|
|
|
|
|
20 |
0.1 |
|
|
|
|
|
|
|
0.2 |
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
|
1.0 |
|
|
|
|
|
|
0 |
10 –1 |
|
|
10 2 |
10 3 |
|
10 4 |
10 –2 |
1 |
10 |
tp (ms) |
||||
|
|
|
|
|
|
|
|
Ttp = 60 °C; Rth j-tp = 25 K/W.
VRRMmax during 1 − δ; curves include derating for Tj max at VRRM = 600 V.
Fig.4 Maximum repetitive peak forward current as a function of pulse time (square pulse) and duty factor.
1996 Jun 07 |
4 |
Philips Semiconductors |
Product specification |
|
|
Fast soft-recovery
BYW95 series
controlled avalanche rectifiers
16 |
|
|
|
|
|
MGC607 |
|
|
|
|
|
|
|
|
|
handbook, full pagewidth |
|
|
|
|
|
|
|
I FRM |
|
|
|
|
|
|
|
(A) |
δ = |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.05 |
|
|
|
|
|
|
12 |
|
|
|
|
|
|
|
|
0.1 |
|
|
|
|
|
|
8 |
|
|
|
|
|
|
|
|
0.2 |
|
|
|
|
|
|
4 |
|
|
|
|
|
|
|
|
0.5 |
|
|
|
|
|
|
|
1.0 |
|
|
|
|
|
|
0 |
10 –1 |
|
|
10 2 |
10 3 |
|
10 4 |
10 –2 |
1 |
10 |
tp (ms) |
||||
|
|
|
|
|
|
|
|
Tamb = 65 °C; Rth j-a = 75 K/W.
VRRMmax during 1 − δ; curves include derating for Tj max at VRRM = 600 V.
Fig.5 Maximum repetitive peak forward current as a function of pulse time (square pulse) and duty factor.

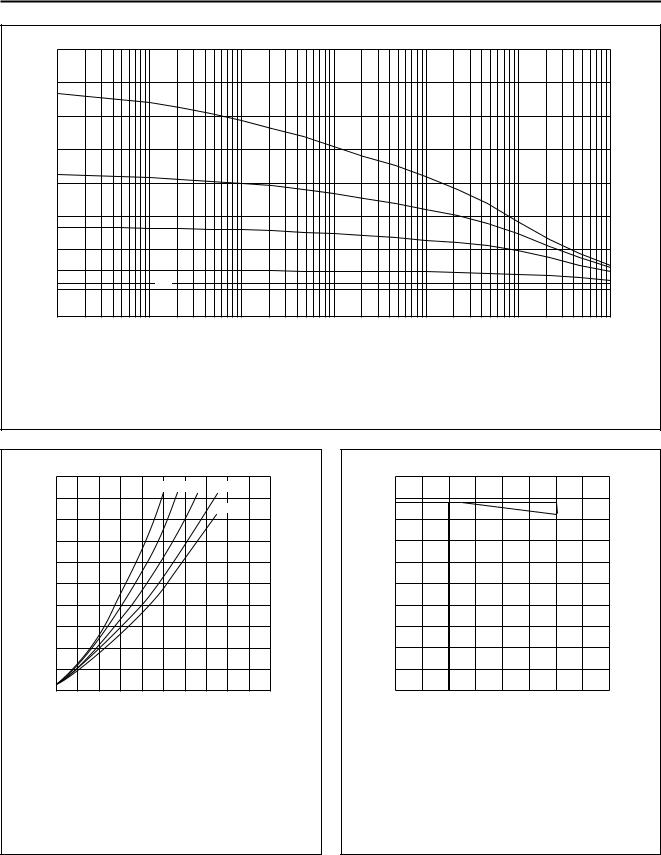

5 |
|
|
|
MGC611 |
200 |
|
|
|
MGC575 |
a=3 |
2.5 |
2 |
1.57 |
|
|
|
|
||
handbook, halfpage |
handbook, halfpage |
|
|
|
|
||||
P |
|
|
|
|
|
|
|
|
|
(W) |
|
|
|
1.42 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
4 |
|
|
|
|
Tj |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(oC) |
|
|
|
|
3 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
100 |
|
|
|
|
2 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
A |
B |
C |
|
1 |
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
0 |
|
|
|
|
0 |
2 |
|
|
4 |
0 |
200 |
400 |
600 |
800 |
|
|
|
IF(AV) (A) |
|
|
|
|
VR (V) |
|
a = IF(RMS)/IF(AV); VR = VRRMmax; δ = 0.5. |
|
Fig.6 Maximum steady state power dissipation |
Solid line = VR. |
Dotted line = VRRM; δ = 0.5. |
|
(forward plus leakage current losses, |
|
excluding switching losses) as a function |
Fig.7 Maximum permissible junction temperature |
of average forward current. |
as a function of reverse voltage. |
1996 Jun 07 |
