Library Expert Surface Mount Families
Note: The Land Pattern images are shown in the Nominal Density Level |
|
|||

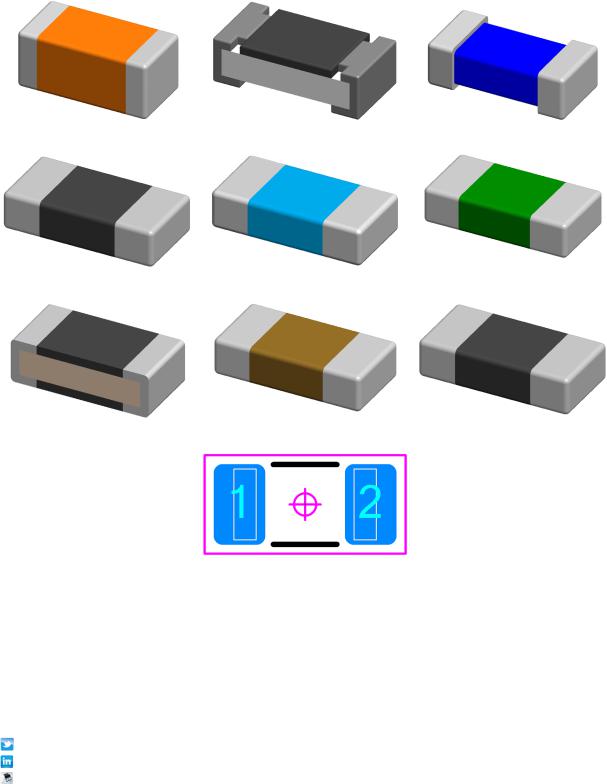

Non polarized Rectangular Chip Components |
|
|||
|
|
|
|
|
Chip Capacitor |
|
Chip Resistor |
|
Chip Inductor |
|
|
|
|
|
Chip Varistor |
|
Chip Thermistor |
|
Chip Fuse |
|
|
|
|
|
Chip Non polarized Diode |
|
Chip Filter |
|
Chip Ferrite Bead |
|
|
|
|
|
|
Chip Land Pattern Zero Rotation |
|
|
|
|
|
|
|
|
https://twitter.com/pcblibraries |
|
|
© 2014 2019 PCB Libraries, Inc. |
|
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
|||
http://www.PCBLibraries.com/forum |
|
|
updated 10 21 18 |
|
Library Expert Surface Mount Families

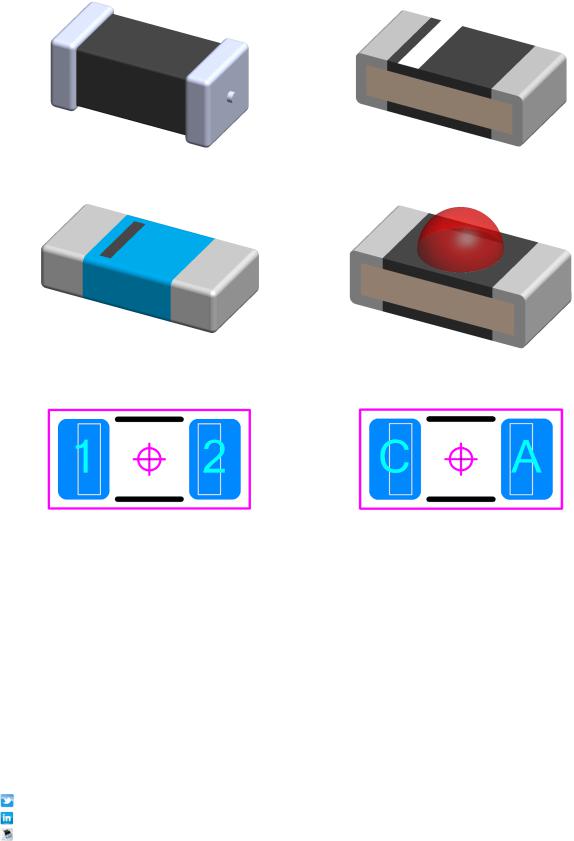

Polarized Rectangle Chip Components |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Polarized Chip Capacitor |
|
|
|
|
|
|
|
Chip Diode |
|
|
|||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Chip Antenna |
|
|
|
|
|
|
|
Chip LED |
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Polarized Chip Capacitor and Antenna |
|
|
|
|
Chip Diode and LED |
|
|
||||||||||||
|
Land Pattern Zero Rotation |
|
|
|
|
Land Pattern Zero Rotation |
|
|
||||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Rectangular Chip Components (unit: mm) |
|
|
|
|
|
||||||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Chip Package Sizes |
|
|
|
Rectangular End Cap |
|
|
|
|
|
|
Least Density Level |
|
|
||||||
|
|
|
|
Nominal Package Length |
|
|
|
Toe |
|
|
Heel |
|
|
Side |
|
|
Courtyard |
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
2010 & Greater |
|
|
Length > 4.75 mm |
|
|
0.40 |
|
0.00 |
|
|
0.05 |
|
0.10 |
|
|||||
|
1812 & 1825 |
|
|
|
Length > 3.85 and <= 4.75 mm |
|
|
|
0.30 |
|
|
0.00 |
|
|
0.05 |
|
|
0.10 |
|
|
1206, 1210 & 0612 |
|
|
|
Length > 2.85 and <= 3.85 mm |
|
|
0.25 |
|
0.00 |
|
|
0.05 |
|
0.10 |
|
|||||
|
0603, 0705 & 0805 |
|
|
|
Length > 1.30 and <= 2.85 mm |
|
|
|
0.20 |
|
|
0.00 |
|
|
0.05 |
|
|
0.10 |
|
|
0402, 0306 & 0502 |
|
|
|
Length > 0.75 and <= 1.30 mm |
|
|
0.15 |
|
|
0.02 |
|
0.02 |
|
0.10 |
|
|||||
|
0201 |
|
|
|
Length > 0.50 and <= 0.75 mm |
|
|
|
0.08 |
|
|
0.03 |
|
|
0.03 |
|
|
0.10 |
|
|
|
01005 & Less |
|
|
Length <= 0.50 mm |
|
|
0.04 |
|
|
0.04 |
|
0.04 |
|
0.10 |
|
|||||
|
https://twitter.com/pcblibraries |
|
|
|
|
|
|
© 2014 2019 PCB Libraries, Inc. |
|
|||||||||||
|
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
|
|||||||||||||||||
|
http://www.PCBLibraries.com/forum |
|
|
|
|
|
|
|
|
|
updated 10 21 18 |
|
||||||||
Library Expert Surface Mount Families
|
Chip Package Sizes |
|
|
|
Rectangular End Cap |
|
|
|
|
|
Nominal Density Level |
|
|||||||
|
|
|
|
Nominal Package Length |
|
|
|
Toe |
|
|
Heel |
|
|
Side |
|
|
Courtyard |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||||||
|
2010 & Greater |
|
|
Length > 4.75 mm |
|
0.50 |
|
0.00 |
|
0.00 |
|
0.20 |
|
||||||
|
1812 & 1825 |
|
|
|
Length > 3.85 and <= 4.75 mm |
|
|
|
0.40 |
|
|
0.00 |
|
|
0.00 |
|
|
0.20 |
|
1206, 1210 & 0612 |
|
|
|
Length > 2.85 and <= 3.85 mm |
|
0.35 |
|
0.00 |
|
0.00 |
|
0.20 |
|
||||||
|
0603, 0705 & 0805 |
|
|
|
Length > 1.30 and <= 2.85 mm |
|
|
|
0.30 |
|
|
0.00 |
|
|
0.00 |
|
|
0.20 |
|
0402, 0306 & 0502 |
|
|
|
Length > 0.75 and <= 1.30 mm |
|
0.20 |
|
|
0.01 |
|
0.01 |
0.15 |
|
||||||
|
0201 |
|
|
|
Length > 0.50 and <= 0.75 mm |
|
|
|
0.10 |
|
|
0.02 |
|
|
0.02 |
|
|
0.15 |
|
|
01005 & Less |
|
|
Length <= 0.50 mm |
|
0.05 |
|
|
0.03 |
|
0.03 |
0.15 |
|
||||||
|
Chip Package Sizes |
|
|
|
Rectangular End Cap |
|
|
|
|
|
|
Most Density Level |
|
|
|||||
|
|
|
|
Nominal Package Length |
|
|
|
Toe |
|
|
Heel |
|
|
Side |
|
|
Courtyard |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||||
|
2010 & Greater |
|
|
Length > 4.75 mm |
|
0.60 |
|
0.00 |
|
0.05 |
|
|
0.40 |
|
|||||
|
1812 & 1825 |
|
|
|
Length > 3.85 and <= 4.75 mm |
|
|
|
0.50 |
|
|
0.00 |
|
|
0.05 |
|
|
0.40 |
|
1206, 1210 & 0612 |
|
|
|
Length > 2.85 and <= 3.85 mm |
|
0.45 |
|
0.00 |
|
0.05 |
|
|
0.40 |
|
|||||
|
0603, 0705 & 0805 |
|
|
|
Length > 1.30 and <= 2.85 mm |
|
|
|
0.40 |
|
|
0.00 |
|
|
0.05 |
|
|
0.40 |
|
0402, 0306 & 0502 |
|
|
|
Length > 0.75 and <= 1.30 mm |
|
0.25 |
|
0.00 |
|
0.00 |
|
|
0.20 |
|
|||||
|
0201 |
|
|
|
Length > 0.50 and <= 0.75 mm |
|
|
|
0.12 |
|
|
0.01 |
|
|
0.01 |
|
|
0.20 |
|
|
01005 & Less |
|
|
Length <= 0.50 mm |
|
0.06 |
|
|
0.02 |
|
0.02 |
|
0.20 |
|
|||||
Rectangular Chip Component Package Sizes
|
Table of Chip Package Size Codes and Dimensions |
|
|
EIA (inch) Name |
Inch Dimensions |
IEC (metric) Name |
Metric Dimensions |
01005 |
0.0157 in × 0.0079 in |
0402 |
0.4 mm × 0.2 mm |
0201 |
0.024 in × 0.012 in |
0603 |
0.6 mm × 0.3 mm |
0402 |
0.039 in × 0.020 in |
1005 |
1.0 mm × 0.5 mm |
0603 |
0.063 in × 0.031 in |
1608 |
1.6 mm × 0.8 mm |
0805 |
0.079 in × 0.049 in |
2012 |
2.0 mm × 1.25 mm |
1008 |
0.098 in × 0.079 in |
2520 |
2.5 mm × 2.0 mm |
1206 |
0.126 in × 0.063 in |
3216 |
3.2 mm × 1.6 mm |
1210 |
0.126 in × 0.098 in |
3225 |
3.2 mm × 2.5 mm |
1806 |
0.177 in × 0.063 in |
4516 |
4.5 mm × 1.6 mm |
1812 |
0.18 in × 0.13 in |
4532 |
4.5 mm × 3.2 mm |
2010 |
0.197 in × 0.098 in |
5025 |
5.0 mm × 2.5 mm |
2512 |
0.25 in × 0.13 in |
6332 |
6.4 mm × 3.2 mm |
2920 |
0.29 in × 0.20 in |
7451 |
7.4 mm × 5.1 mm |
https://twitter.com/pcblibraries |
© 2014 2019 PCB Libraries, Inc. |
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
http://www.PCBLibraries.com/forum |
updated 10 21 18 |
Library Expert Surface Mount Families

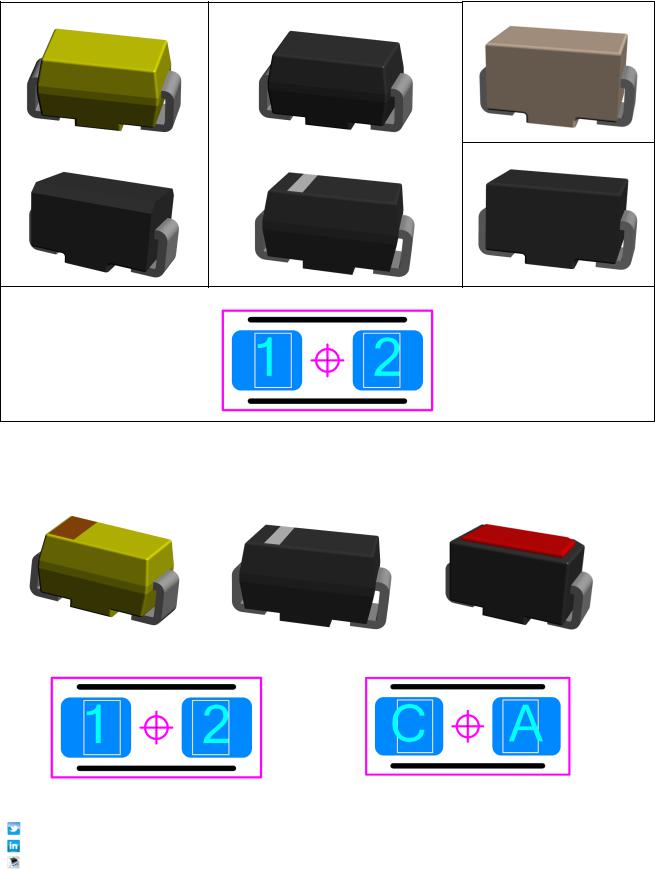

Non polarized Molded Body Inward Flat Ribbon Components |
|
|
