Library Expert Surface Mount Families

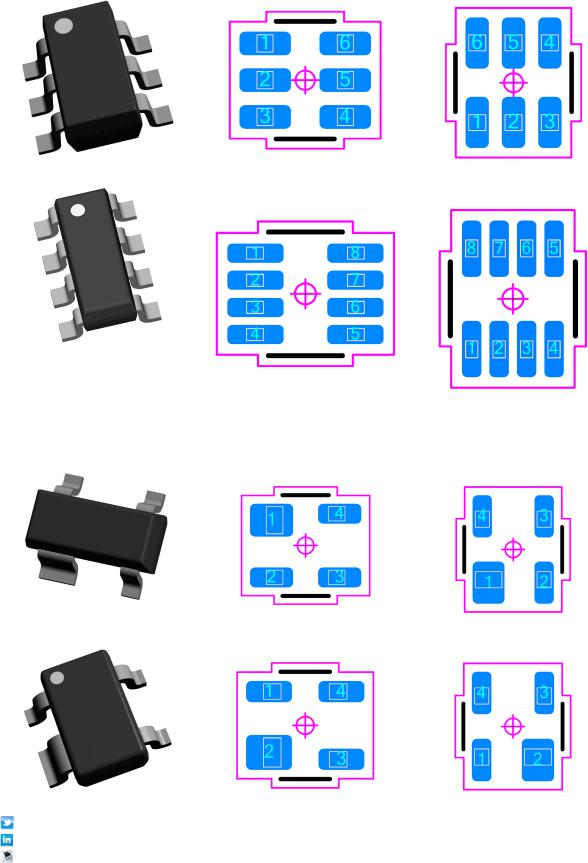

SOT23 6 |
|
SOT23 6 Land Pattern |
SOT23 6 Land Pattern |
|
|
|
|
Zero Rotation A |
Zero Rotation B |
|
|
|
|
|
SOT23 8 |
|
SOT23 8 Land Pattern |
SOT23 8 Land Pattern |
|
|
|
|
Zero Rotation A |
Zero Rotation B |
|
|
|
|
|

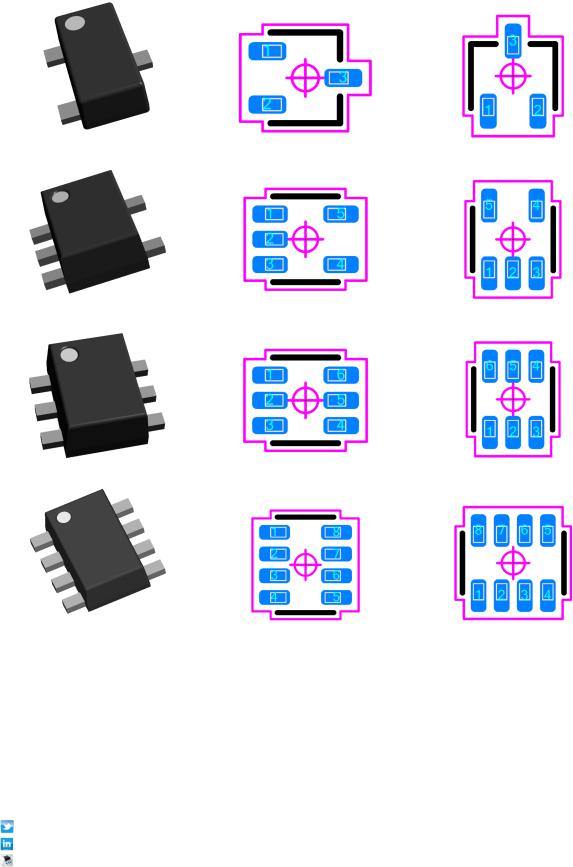

Small Outline Transistor SOT143 (SOT) |
|
|
|
|
|
|
|
||
SOT143 |
|
SOT143 Land Pattern |
SOT143 Land Pattern |
|
|
|
|
Zero Rotation A |
Zero Rotation B |
|
|
|
|
|
SOT143 Reverse |
|
SOT143R Land Pattern |
SOT143R Land Pattern |
|
|
|
|
Zero Rotation A |
Zero Rotation B |
|
|
|
|
|
https://twitter.com/pcblibraries |
|
|
© 2014 2019 PCB Libraries, Inc. |
|
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
|||
http://www.PCBLibraries.com/forum |
|
|
updated 10 21 18 |
|
Library Expert Surface Mount Families

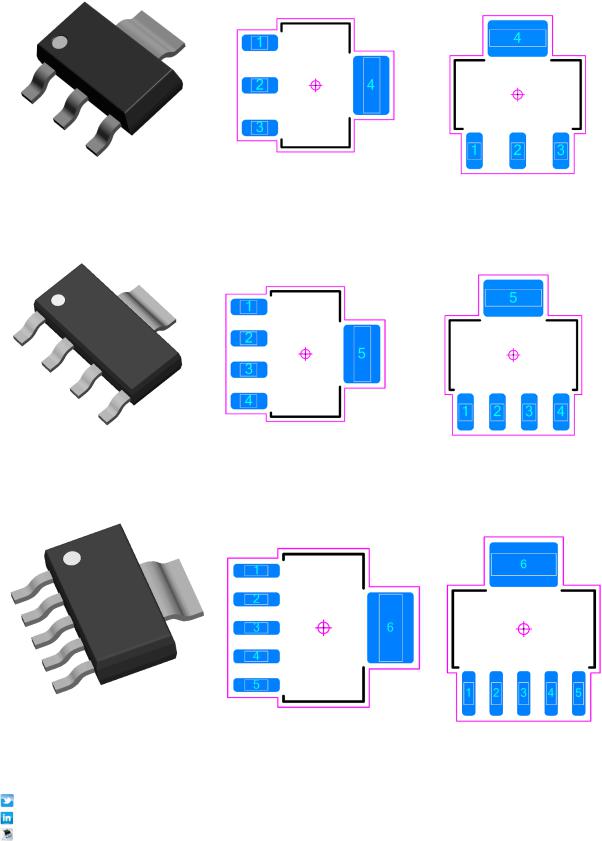

Small Outline Transistor SOT223 4 (SOT) |
|
|
|
|
|
|
|
SOT223 4 |
|
SOT223 4 Land Pattern |
SOT223 4 Land Pattern |
|
|
Zero Rotation A |
Zero Rotation B |
|
|
|
|
Small Outline Transistor SOT223 5 (SOT) |
|
|
|
|
|
SOT223 5 |
SOT223 5 Land Pattern |
SOT223 5 Land Pattern |
|
Zero Rotation A |
Zero Rotation B |
|
|
|
Small Outline Transistor SOT223 6 (SOT) |
|
|
|
|
|
|
|
SOT223 6 |
|
SOT223 6 Land Pattern |
SOT223 6 Land Pattern |
|
|
Zero Rotation A |
Zero Rotation B |
|
|
|
|
https://twitter.com/pcblibraries |
© 2014 2019 PCB Libraries, Inc. |
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
http://www.PCBLibraries.com/forum |
updated 10 21 18 |
Library Expert Surface Mount Families
SOT Flat Ribbon and Gull Wing Leads (unit: mm)
|
SOT's |
|
|
|
Least Density Level |
|
|
|||
|
Terminal Lead Spacing |
|
|
Toe |
Heel |
|
|
Side |
|
Courtyard |
|
|
|
|
|
|
|
|
|
||
|
Pitch > 1.92 mm |
|
0.20 |
0.30 |
0.05 |
|
0.10 |
|||
|
Pitch > 0.95 and <= 1.92 mm |
|
|
0.15 |
0.20 |
|
0.04 |
|
0.10 |
|
|
Pitch > 0.65 and <= 0.95 mm |
|
0.15 |
0.20 |
0.03 |
|
0.10 |
|||
|
Pitch > 0.50 and <= 0.65 mm |
|
|
0.10 |
0.15 |
|
0.01 |
|
0.10 |
|
|
Pitch > 0.40 and <= 0.50 mm |
|
0.10 |
0.15 |
|
|
0.02 |
|
0.10 |
|
|
Pitch <= 0.40 mm |
|
|
0.10 |
0.15 |
|
|
0.03 |
|
0.10 |
|
|
|
|
|
|
|
|
|
|
|
SOT's |
|
|
Nominal Density Level |
|
|
Terminal Lead Spacing |
|
Toe |
Heel |
Side |
Courtyard |
|
|
|
|
|
|
Pitch > 1.92 mm |
|
0.25 |
0.35 |
0.06 |
0.20 |
Pitch > 0.95 and <= 1.92 mm |
|
0.20 |
0.25 |
0.05 |
0.20 |
Pitch > 0.65 and <= 0.95 mm |
|
0.20 |
0.25 |
0.04 |
0.20 |
Pitch > 0.50 and <= 0.65 mm |
|
0.15 |
0.20 |
0.02 |
0.20 |
Pitch > 0.40 and <= 0.50 mm |
|
0.15 |
0.20 |
0.01 |
0.20 |
Pitch <= 0.40 mm |
|
0.15 |
0.20 |
0.02 |
0.20 |
|
SOT's |
|
|
|
|
Most Density Level |
|
|
|
||||
|
Terminal Lead Spacing |
|
|
Toe |
|
Heel |
|
|
|
Side |
|
Courtyard |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
Pitch > 1.92 mm |
|
0.30 |
|
0.40 |
|
0.07 |
|
0.40 |
|
|||
|
Pitch > 0.95 and <= 1.92 mm |
|
|
0.25 |
|
0.30 |
|
|
0.06 |
|
0.40 |
|
|
|
Pitch > 0.65 and <= 0.95 mm |
|
0.25 |
|
0.30 |
|
0.05 |
|
0.40 |
|
|||
|
Pitch > 0.50 and <= 0.65 mm |
|
|
0.20 |
|
0.25 |
|
|
0.03 |
|
0.40 |
|
|
|
Pitch > 0.40 and <= 0.50 mm |
|
0.20 |
|
0.25 |
|
0.00 |
|
0.40 |
|
|||
|
Pitch <= 0.40 mm |
|
|
0.20 |
|
0.25 |
|
|
|
0.01 |
|
0.40 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

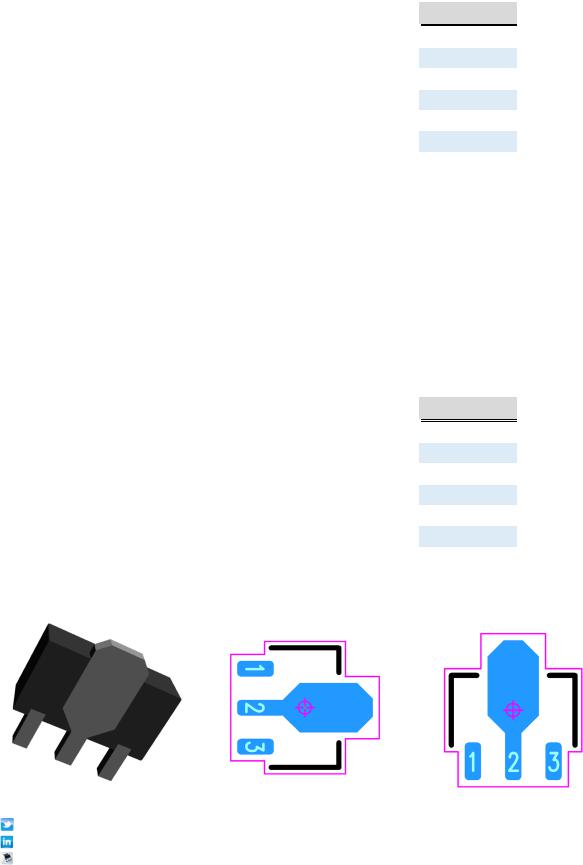

Small Outline Transistor SOT89 (SOT) |
|
|
|
|
|
|
|
SOT89 |
|
SOT89 Land Pattern |
SOT89 Land Pattern |
|
|
Zero Rotation A |
Zero Rotation B |
|
|
|
|
https://twitter.com/pcblibraries |
© 2014 2019 PCB Libraries, Inc. |
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
http://www.PCBLibraries.com/forum |
updated 10 21 18 |
Library Expert Surface Mount Families
Small Outline Flat Lead (SOFL)
|
SOTFL 3 Pin |
|
SOTFL 3 Pin Land Pattern |
|
SOTFL 3 Pin Land Pattern |
|||
|
|
|
|
Zero Rotation A |
|
|
Zero Rotation B |
|
|
|
|
|
|
|
|
|
|
|
SOTFL 5 Pin |
|
SOTFL 5 Pin Land Pattern |
|
SOTFL 5 Pin Land Pattern |
|||
|
|
|
|
Zero Rotation A |
|
|
Zero Rotation B |
|
|
|
|
|
|
|
|
|
|
|
SOTFL 6 Pin |
|
SOTFL 6 Pin Land Pattern |
|
SOTFL 6 Pin Land Pattern |
|||
|
|
|
|
Zero Rotation A |
|
|
Zero Rotation B |
|
|
|
|
|
|
|
|
|
|
|
SOTFL 8 Pin |
|
SOTFL 8 Pin Land Pattern |
|
SOTFL 8 Pin Land Pattern |
|||
|
|
|
|
Zero Rotation A |
|
|
Zero Rotation B |
|
|
|
|
|
|
|
|
|
|
|
|
|
Small Outline Components, Flat Lead (unit: mm) |
|||||
|
|
|
|
|
|
|
|
|
|
Lead Part |
|
|
Most |
Nominal |
|
Least |
|
|
|
Density Level A |
Density Level B |
|
Density Level C |
|||
|
|
|
|
|||||
|
Toe (JT) |
0.30 |
0.20 |
|
|
0.10 |
||
|
Heel (JH) |
0.00 |
0.00 |
|
|
0.00 |
||
|
Side (JS) |
0.05 |
0.00 |
|
|
0.05 |
||
|
Round off factor |
Round off to the nearest |
two place decimal, i.e., 1.00, 1.01, 1.02, 1.03 |
|||||
|
Courtyard excess |
0.40 |
0.20 |
|
|
0.10 |
||
|
https://twitter.com/pcblibraries |
|
|
© 2014 2019 PCB Libraries, Inc. |
||||
|
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
||||||
|
http://www.PCBLibraries.com/forum |
|
|
|
updated 10 21 18 |
|||
Library Expert Surface Mount Families

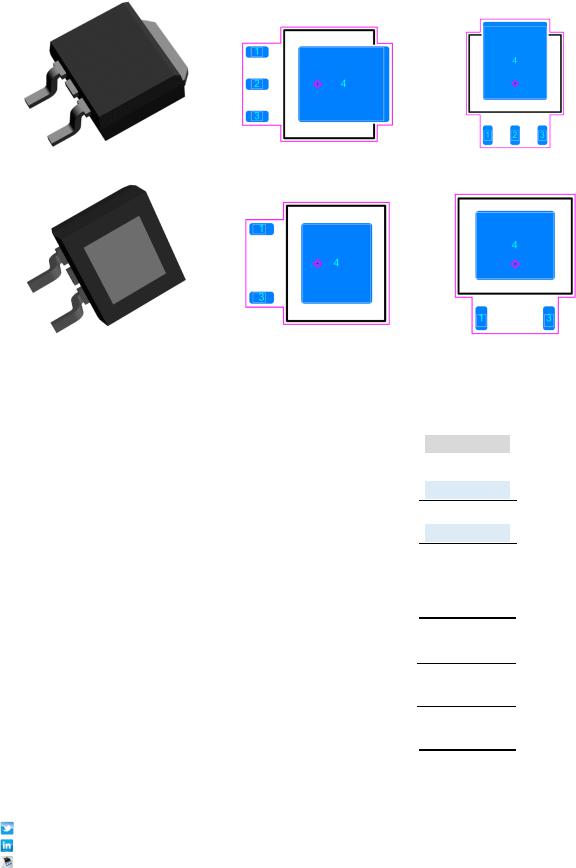

DPAK |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
DPAK Extended Thermal Tab |
DPAK 3 Pin Land Pattern |
|
DPAK 3 Pin Land Pattern |
||||
|
|
Zero Rotation A |
|
Zero Rotation B |
|||
|
|
|
|
|
|
|
|
DPAK Under Body Thermal Tab |
DPAK Land Pattern |
|
DPAK Land Pattern |
||||
|
|
Zero Rotation A |
|
Zero Rotation B |
|||
|
|
|
|
|
|
|
|
DPAK Flat Ribbon and Gull Wing Leads (unit: mm) |
|
||||||
|
|
|
|
|
|
|
|
DPAK's |
|
|
Least Density Level |
|
|||
Terminal Lead Spacing |
|
Toe |
Heel |
|
Side |
Courtyard |
|
Pitch > 2.54 mm |
|
0.35 |
0.40 |
|
0.15 |
|
0.10 |
Pitch > 2.29 and <= 2.54 mm |
|
0.35 |
0.40 |
|
0.10 |
|
0.10 |
Pitch > 1.70 and <= 2.29 mm |
|
0.25 |
0.40 |
|
0.05 |
|
0.10 |
Pitch > 1.27 and <= 1.70 mm |
|
0.20 |
0.35 |
|
0.00 |
|
0.10 |
Pitch <= 1.27 mm |
|
0.15 |
0.30 |
|
0.00 |
|
0.10 |
|
|
|
|
|
|
|
|
DPAK's |
|
|
Nominal Density Level |
|
|||
Terminal Lead Spacing |
|
Toe |
Heel |
|
Side |
|
Courtyard |
|
|
|
|
|
|
|
|
Pitch > 2.54 mm |
|
0.45 |
0.50 |
|
0.20 |
|
0.20 |
Pitch > 2.29 and <= 2.54 mm |
|
0.45 |
0.50 |
|
0.15 |
|
0.20 |
Pitch > 1.70 and <= 2.29 mm |
|
0.35 |
0.50 |
|
0.10 |
|
0.20 |
Pitch > 1.27 and <= 1.70 mm |
|
0.30 |
0.45 |
|
0.05 |
|
0.20 |
Pitch <= 1.27 mm |
|
0.25 |
0.40 |
|
0.05 |
|
0.20 |
https://twitter.com/pcblibraries |
|
|
|
© 2014 2019 PCB Libraries, Inc. |
|||
https://www.linkedin.com/company/3196824 |
Get updates at www.PCBLibraries.com/downloads |
||||||
http://www.PCBLibraries.com/forum |
|
|
|
|
|
updated 10 21 18 |
|
