The RF MOSFET Line
Power Field Effect Transistor
N±Channel Enhancement±Mode MOSFET
Designed primarily for wideband large±signal output and driver stages to 500 MHz.
•Push±Pull Configuration Reduces Even Numbered Harmonics
•Typical Performance at 400 MHz, 28 Vdc
Output Power = 40 Watts
Gain = 13 dB
Efficiency = 50%
•Typical Performance at 175 MHz, 28 Vdc Output Power = 40 Watts
Gain = 17 dB Efficiency = 60%
•Excellent Thermal Stability, Ideally Suited for Class A Operation
•Facilitates Manual Gain Control, ALC and Modulation Techniques
•100% Tested for Load Mismatch at All Phase Angles with 30:1 VSWR
•Low Crss Ð 4.5 pF @ V DS = 28 Volts
•Circuit board photomaster available upon request by contacting RF Tactical Marketing in Phoenix, AZ.
MRF166W
40 W, 500 MHz
TMOS BROADBAND RF POWER FET

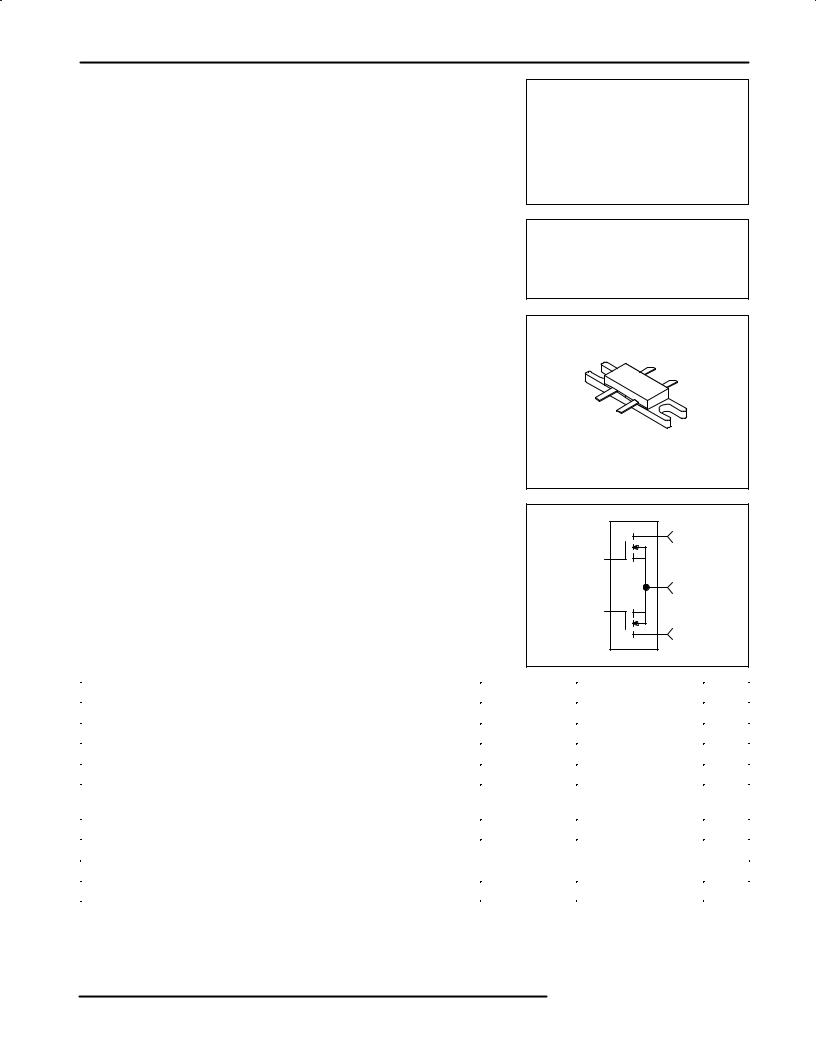

CASE 412±01, Style 1
3
4
MAXIMUM RATINGS (TJ = 25°C unless otherwise noted)
1 |
5 |
FLANGE |
2 |
Rating |
Symbol |
Value |
Unit |
|
|
|
|
Drain±Gate Voltage |
VDSS |
65 |
Vdc |
Drain±Gate Voltage (RGS = 1.0 MΩ) |
VDGR |
65 |
Vdc |
Gate±Source Voltage |
VGS |
± 40 |
Adc |
Drain Current Ð Continuous |
ID |
8.0 |
ADC |
Total Device Dissipation @ TC = 25°C |
PD |
175 |
Watts |
Derate above 25°C |
|
1.0 |
°C/W |
|
|
|
|
Storage Temperature Range |
Tstg |
± 65 to +150 |
°C |
Operating Junction Temperature |
TJ |
200 |
°C |
THERMAL CHARACTERISTICS |
|
|
|
|
|
|
|
Thermal Resistance Ð Junction to Case |
RθJC |
1.0 |
°C/W |
NOTE: Handling and Packaging Ð MOS devices are susceptible to damage from electrostatic charge. Reasonable precautions in handling and packaging MOS devices should be observed.
REV 1
Motorola, Inc. 1994
ELECTRICAL CHARACTERISTICS (TC = 25°C unless otherwise noted)
Characteristic |
Symbol |
Min |
Typ |
Max |
Unit |
|
|
|
|
|
|
OFF CHARACTERISTICS (1)
Drain±Source Breakdown Voltage |
V(BR)DSS |
|
|
|
|
Vdc |
|
|
(VGS = 0 Vdc, ID = 5.0 mA) |
|
65 |
|
Ð |
Ð |
|
Zero Gate Voltage Drain Current |
IDSS |
|
|
|
|
mA |
|
|
(VDS = 28 Vdc, VGS = 0 Vdc) |
|
Ð |
|
Ð |
1.0 |
|
Gate±Source Leakage Current |
IGSS |
|
|
|
|
μA |
|
|
(VGS = 40 Vdc, VDS = 0 Vdc) |
|
Ð |
|
Ð |
1.0 |
|
ON CHARACTERISTICS (1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Gate Threshold Voltage |
VGS(th) |
|
|
|
|
Vdc |
|
|
(VDS= 10 Vdc, ID = 25 mA) |
|
1.0 |
|
3.0 |
6.0 |
|
Forward Transconductance |
gfs |
|
|
|
|
mS |
|
|
(VDS= 10 Vdc, ID = 1.5 A) |
|
600 |
|
800 |
Ð |
|
DYNAMIC CHARACTERISTICS (1) |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Input Capacitance |
Ciss |
Ð |
|
30 |
Ð |
pF |
|
|
(VDS = 28 Vdc, VGS = 0 Vdc, f = 1.0 MHz) |
|
|
|
|||
Output Capacitance |
Coss |
|
|
|
|
pF |
|
|
(VDS = 28 Vdc, VGS = 0 Vdc, f = 1.0 MHz) |
|
Ð |
|
35 |
Ð |
|
Reverse Transfer Capacitance |
Crss |
|
|
|
|
pF |
|
|
(VDS = 28 Vdc, VGS = 0 Vdc, f = 1.0 MHz) |
|
Ð |
|
4.5 |
Ð |
|
FUNCTIONAL CHARACTERISTICS (2) |
|
|
|
|
|
|
|
|
|
|
|
|
|
||
Common Source Power Gain |
Gps |
|
|
|
|
dB |
|
|
(VDD = 28 Vdc, Pout = 40 W, f = 400 MHz, IDG = 100 mA) |
|
11 |
|
13 |
Ð |
|
Drain Efficiency |
η |
|
|
|
|
% |
|
|
(VDD = 28 Vdc, Pout = 40 W, f = 400 MHz, IDG = 100 mA) |
|
45 |
|
50 |
Ð |
|
Electrical Ruggedness |
Ψ |
|
|
|
|
|
|
|
(VDD = 28 Vdc, Pout = 40 W, f = 400 MHz, IDG = 100 mA) |
|
|
No Degradation in Output Power |
|||
|
Load VSWR = 30:1, All phase angles at frequency of test |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
(1) |
Each transistor chip measured separately. |
|
|
|
|
|
|
(2) |
Both transistor chips operating in a push±pull amplifier. |
|
|
|
|
|
|
MRF166W |
MOTOROLA RF DEVICE DATA |
2 |
|
|
|
|
|
|
|
B |
|
|
|
|
|
|
|
|
|
R7 |
|
RFC1 |
|
|
|
VDD 28 V |
|
|
|
|
|
|
|
|
|
|
|
||
A |
R1 |
C14 |
D1 |
|
|
|
C17 |
+ |
|
+ |
|
C22 |
C15 |
C16 |
C18 |
Vdc |
|||||||
R2 |
|
|
± |
||||||||
|
|
|
|
|
|
RFC2 |
|
|
± |
||
|
|
|
|
|
|
|
|
|
|
|
A |
|
|
|
|
C10 |
|
|
|
T1 |
|
C21 |
|
C13 |
|
|
|
Z8 |
C8 |
|
|
|
|
|
|
|
|||
|
|
L1 |
|
R4 |
|
R3 |
|
|
T2 |
C2 |
Z2 |
Z3 |
|
|
Z7 |
|
|
|
|
RF INPUT |
C23 |
|
L3 |
Z5 |
D.U.T. |
|
|
|
|
|
|
|
C6 |
C7 |
|||||
C3 |
|
|
|
C5 |
|
|
|
||
|
C4 |
|
|
|
|
|
RF OUTPUT |
||
|
|
|
|
Z6 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
C1 |
Z1 |
L2 |
Z4 |
L4 |
|
Z9 |
|
Z10 |
C9 |
|
|
|
|
R5 |
|
R6 |
|
|
|
|
A |
|
|
|
|
C11 |
|
|
|
|
|
|
|
|
|
RFC3 |
|
B |
|
|
|
C20 |
|
C12 |
|
|
C19 |
|
|
|
|
|
|
|
|
|
|||
L3, L4 |
0.065″ |
L1, L2 |
0.116″ |
||
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
0.265″ |
0.455″ |
|
C1, C2, C8, C9, |
270 pF, Chip Cap |
RFC1 |
Ferroxcube VK±200±19/4B |
C12, C13, C15 |
|
RFC2, RFC3 |
10T, ID = 1/4″ , 18 AWG |
C3 |
5.6 pF, Chip Cap |
R1 |
10 kW, 10T |
C4 |
20 pF, Chip Cap |
R2 |
9.2 kW, 1/2 W |
C5 |
0 ± 20 pF, Johanson* |
R3, R6 |
330 W, 1.0 W |
C6 |
8.2 pF, Chip Cap |
R4 R5 |
520 W, 1/4 W |
C7 |
15 pF, Chip Cap |
R7 |
1.5 kW, 1/2 W |
C10, C11, C14, C19, |
0.01 mF |
T1, T2 |
Balun 2.0″ , 50 W Semi±Rigid Coax |
C20, C21, C22 |
|
Z1, Z2 |
0.120 x 0.467″ |
C16, C17 |
680 pF, Feedthru |
Z3, Z4 |
0.120 x 0.55″ * |
C18 |
10 mF, 50 V |
Z5, Z6 |
0.120 x 0.49″ |
C23 |
0 ± 10 pF, Johanson* |
Z7, Z9 |
0.120 x 0.85″ |
D1 |
IN5343 ± Motorola Zener |
Z8, Z10 |
0.120 x 0.6″ for C6 |
L1, L2 |
Hair Pin Inductor #18 AWG, |
|
|
|
0.065 W x 0.265 H |
* C4, C5 Center of Z3 and Z4 |
|
L3, L4 |
Hair Pin Inductor #18 AWG, |
Board Material ± Teflon |
Fiberglass |
|
0.116 W x 0.445 H |
Dielectric Thickness = 0.030″ , er = 2.55 Copper Clad, 2.0 oz. Copper |
|

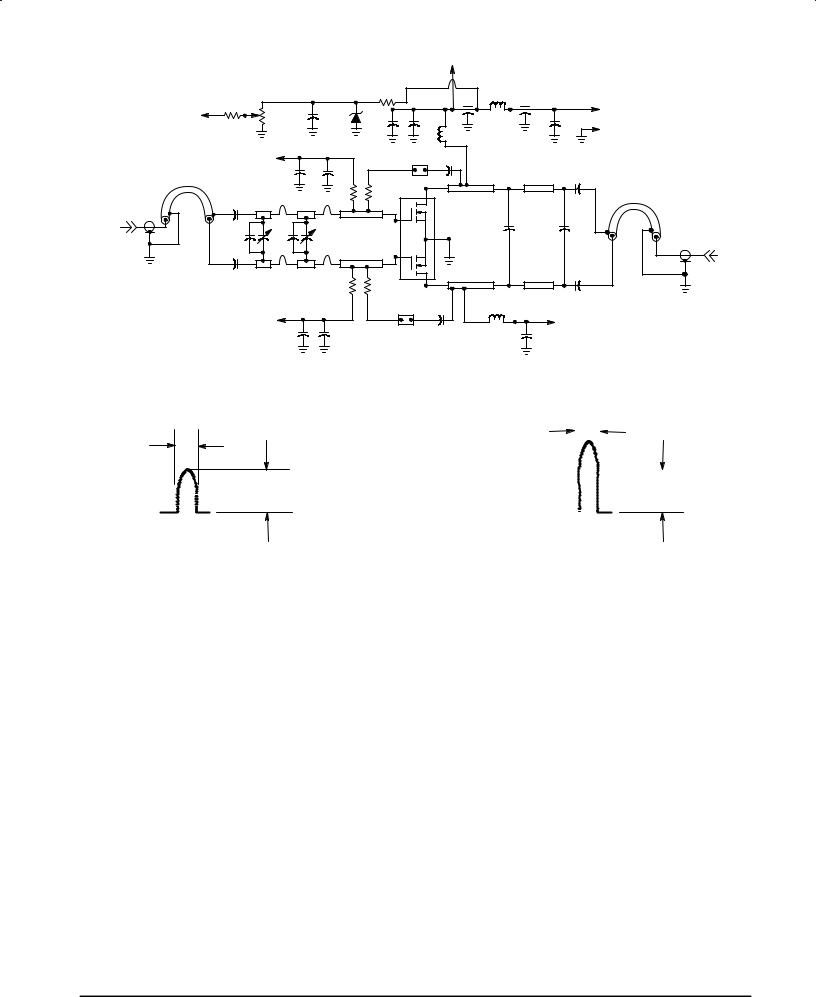

Figure 1. MRF166 400 MHz Test Circuit Schematic
MOTOROLA RF DEVICE DATA |
MRF166W |
|
3 |
Pout , OUTPUT POWER (WATTS)
50 |
f = 175 MHz |
|
|
|
45 |
|
|
|
|
|
|
|
400 MHz |
|
40 |
|
|
|
|
|
|
|
|
|
35 |
|
|
|
500 MHz |
30 |
|
|
|
|
25 |
|
|
|
|
20 |
|
|
|
|
15 |
|
|
|
|
10 |
|
|
|
|
5 |
|
|
|
VDD = 28 Vdc |
|
|
|
IDQ = 200 mA |
|
0 |
|
|
|
|
0 |
1 |
2 |
3 |
4 |
Pin, INPUT POWER (WATTS)
Pout , OUTPUT POWER (WATTS)
45 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
f = 400 |
MHz |
|
|
|
|
|
|
|
|
Pin = |
3.0 W |
|
|
|
|
|
40 |
|
|
|
|
|
|
|
|
|
|
|
|
|
||||
|
IDQ = |
100 mA |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
35 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2.0 W |
|
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
1.0 W |
|
|
25 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0.5 W |
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
14 |
16 |
18 |
20 |
22 |
24 |
26 |
28 |
|||||||||
12 |
|||||||||||||||||
VDS, DRAIN±SOURCE VOLTAGE (VOLTS)

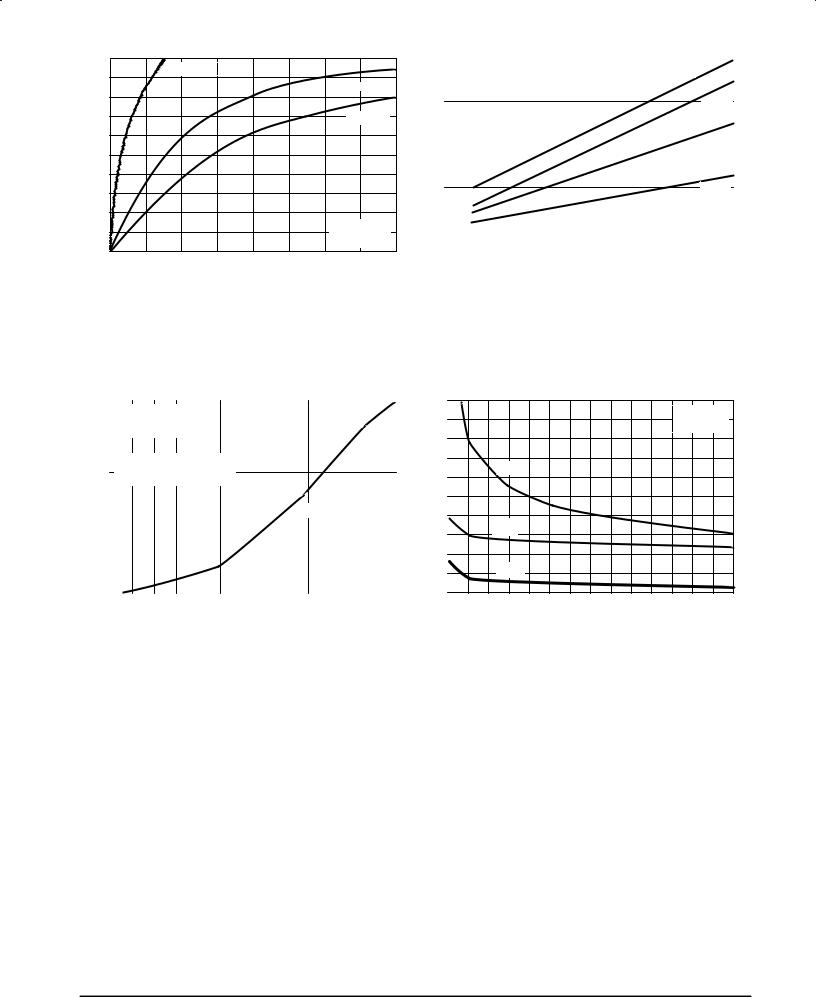

Figure 2. Output Power versus Input Power |
Figure 3. Output Power versus Voltage |
|
40 |
|
|
|
|
|
|
|
|
|
|
|
|
|
100 |
|
|
|
V |
DD = 28 Vdc |
|
|
|
|
|
|
|
|
|
|
|
||
|
35 |
|
|
|
|
|
|
|
|
|
|
|
90 |
|
||
(WATTS) |
|
IDQ = 100 mA |
|
SHOWN, |
|
|
|
|
|
|
|
(pF) |
70 |
|
||
|
|
TYPICAL DEVICE |
|
|
|
|
|
|
|
|
||||||
|
30 |
|
|
|
|
|
|
|
|
|
|
|
|
|
80 |
|
OUTPUT, POWER |
|
|
|
|
|
|
|
|
|
|
|
|
CAPACITANCEC, |
|
|
|
25 |
|
VGS(th) = 3.0 V |
|
|
|
|
|
|
|
|
30 |
|
||||
|
|
|
|
|
|
|
|
|
|
|
60 |
|
||||
|
20 |
|
|
|
|
|
|
|
f = |
400 |
MHz |
|
|
|
50 |
|
|
15 |
|
|
|
|
|
|
|
|
|
|
40 |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
out |
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
20 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
P |
5 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
0 |
|
|
±10 |
± 9 ± 8 ±7 ± 6 ± 5 ± 4 ± 3 ± 2 ±1 0 1 2 |
3 |
0 |
||||||||||||
VGS, GATE±SOURCE VOLTAGE (VOLTS)
Figure 4. Output Power versus Gate Voltage
VGS = 0 V
f = 1.0 MHz
Coss
Ciss
Crss
4 |
8 |
12 |
16 |
20 |
24 |
28 |
|
VDS, DRAIN±SOURCE VOLTAGE (VOLTS) |
|
|
|||
Figure 5. Capacitance versus Voltage
MRF166W |
MOTOROLA RF DEVICE DATA |
4 |
|
f = 500 MHz
Zin
400
ZOL*
f = 500 MHz
400 175
175
Zo = 50 Ω
VDD = 28 Vdc, IDQ = 100 mA, Pout = 40 W
f |
|
Zin |
|
ZOL* |
MHz |
|
Ohms |
|
Ohms |
|
|
|
|
|
175 |
3.7 ± |
j 22.4 |
15.2 |
± j 16.6 |
|
|
|
|
|
400 |
3.6 ± |
j 10.99 |
10.3 |
± j 7.99 |
|
|
|
|
|
500 |
2.6 ± |
j 3.2 |
10.2 |
+ j 0.5 |
|
|
|
|
|
Table 1. Input and Output Impedances
ZOL* = Conjugate of the optimum load impedance into which the device output operates at a given output power, voltage and frequency.
NOTE: Input and output impedance values given are measured from gate to gate and drain to drain respectively.
Figure 6. Series Equivalent Input/Output Impedance
