MOTOROLA

SEMICONDUCTOR

TECHNICAL DATA

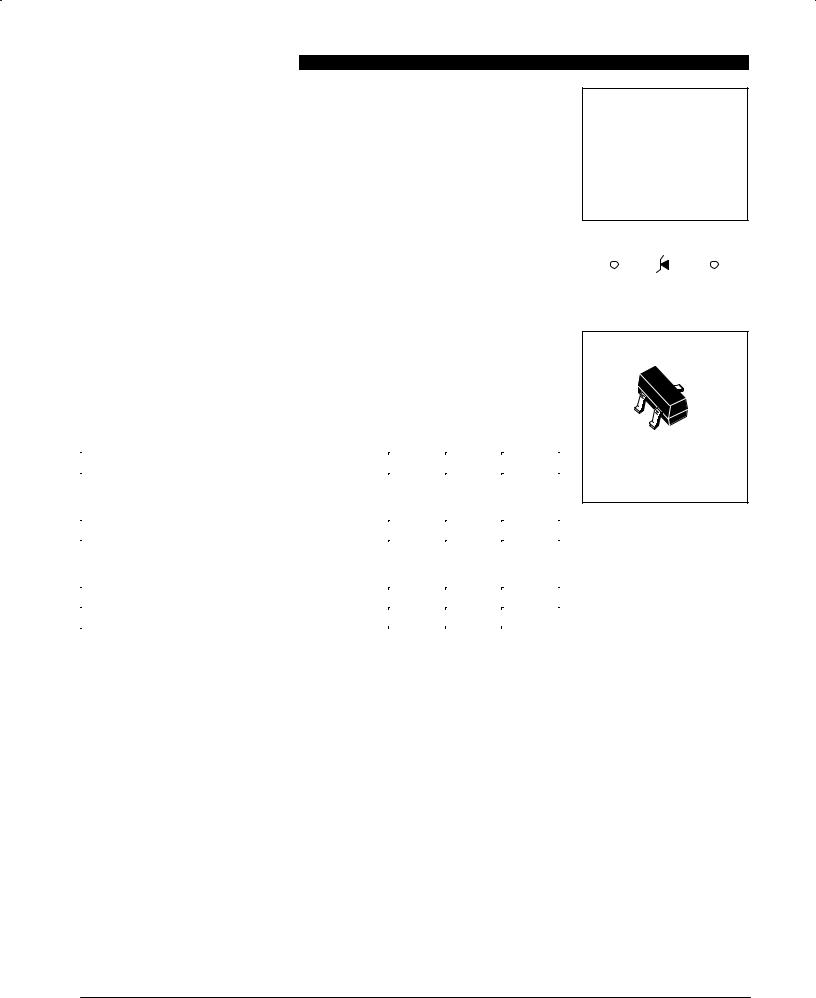

225 mW SOT-23

Zener Voltage Regulator Diodes

GENERAL DATA APPLICABLE TO ALL SERIES IN THIS GROUP

Zener Voltage Regulator Diodes

Manufacturing Locations:

WAFER FAB: Phoenix, Arizona

ASSEMBLY: Seremban, Malaysia

TEST: Seremban, Malaysia

MAXIMUM CASE TEMPERATURE FOR SOLDERING

PURPOSES: 260°C for 10 seconds

THERMAL CHARACTERISTICS

Characteristic	Symbol	Max	Unit

Total Device Dissipation FR-5 Board,*	PD	225	mW
TA = 25°C
Derate above 25°C		1.8	mW/°C

Thermal Resistance Junction to Ambient	RθJA	556	°C/W
Total Device Dissipation	PD	300	mW
Alumina Substrate,** TA = 25°C
Derate above 25°C		2.4	mW/°C

Thermal Resistance Junction to Ambient	RθJA	417	°C/W
Junction and Storage Temeprature	TJ, Tstg	150	°C

GENERAL

DATA

225 mW SOT-23


3		1
Cathode		Anode

CASE 318-07, STYLE 8

SOT-23 (TO-236AB)

PLASTIC

*FR-5 = 1.0 x 0.75 x 0.62 in.

**Alumina = 0.4 x 0.3 x 0.024 in. 99.5% alumina.

Motorola TVS/Zener Device Data	225 mW SOT-23 Data Sheet
	7-139

GENERAL DATA Ð 225 mW SOT-23

TYPICAL CHARACTERISTICS

(mV/°C)	8										(mV/°C)	100
	7	TYPICAL TC VALUES
	6	TYPICAL TC VALUES
		FOR MMBZ5221BLT1 SERIES
COEFFICIENT		FOR MMBZ5221BLT1 SERIES									COEFFICIENT
	5
	4							VZ @ IZT
	3							VZ @ IZT
	3											10

TEMPERATURE	2										TEMPERATURE
	2
	1
	0
	±1
,											,
VZ	± 2										VZ
θ	± 2										θ
θ											θ
	± 3	3	4	5	6	7	8	9	10	11	12	1
	2	3	4	5	6	7	8	9	10	11	12
				VZ, NOMINAL ZENER VOLTAGE (V)

	TYPICAL TC VALUES
	FOR MMBZ5221BLT1 SERIES
	VZ @ IZT
10	100

VZ, NOMINAL ZENER VOLTAGE (V)

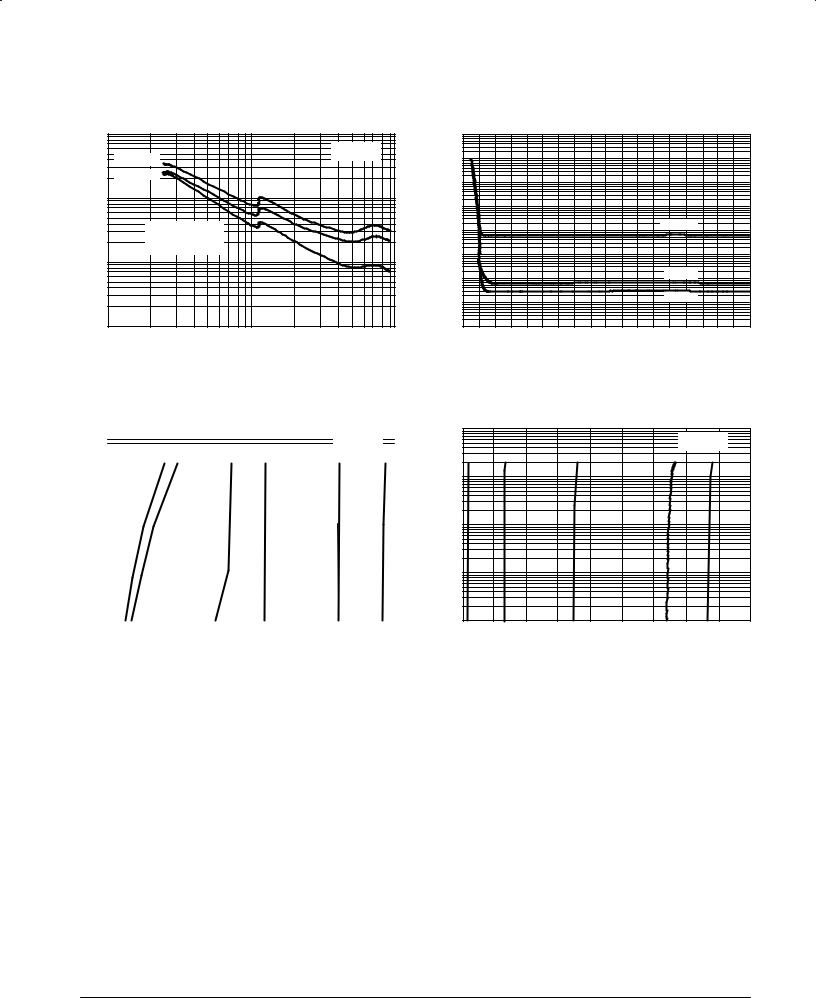

Figure 1. Temperature Coefficients	Figure 2. Temperature Coefficients
(Temperature Range ± 55°C to +150°C)	(Temperature Range ± 55°C to +150°C)

	1000					1000
			TJ = 25°C					75 V (MMBZ5267BLT1)
)			IZ(AC) = 0.1 IZ(DC)		CURRENT(mA)			91 V (MMBZ5270BLT1)
IMPEDANCE(Ω		IZ = 1 mA	f = 1 kHz
IMPEDANCE(Ω	100					100
	100					100
DYNAMIC,		5 mA			FORWARD
DYNAMIC,		20 mA			FORWARD
		20 mA
	10					10
ZT					F
					,
Z					I
							150°C	75°C	25°C	0°C
	1	1	10	100		1	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2
		1	10	100		0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2
			VZ, NOMINAL ZENER VOLTAGE						VF, FORWARD VOLTAGE (V)

Figure 3. Effect of Zener Voltage on

Figure 4. Typical Forward Voltage

Zener Impedance

225 mW SOT-23 Data Sheet

Motorola TVS/Zener Device Data

7-140

GENERAL DATA Ð 225 mW SOT-23

		TYPICAL CHARACTERISTICS
	1000				1000
		0 V BIAS	TA = 25°C		100
		0 V BIAS		A)	100
		1 V BIAS		A)	10
		1 V BIAS		μ
C, CAPACITANCE (pF)				μ
				, LEAKAGE CURRENT (
	100				1
					1
		BIAS AT			0.1							+150°C
		BIAS AT			0.1
		50% OF VZ NOM			0.01
	10				0.01
	10											+ 25°C
					0.001							+ 25°C
				R	0.001
				R
				I								± 55°C
					0.0001							± 55°C
					0.0001
	1	10	100	0.00001		10	20	30	40	50	60	70	80	90
	1	10	100		0	10	20	30	40	50	60	70	80	90
		VZ, NOMINAL ZENER VOLTAGE (V)						VZ, NOMINAL ZENER VOLTAGE (V)

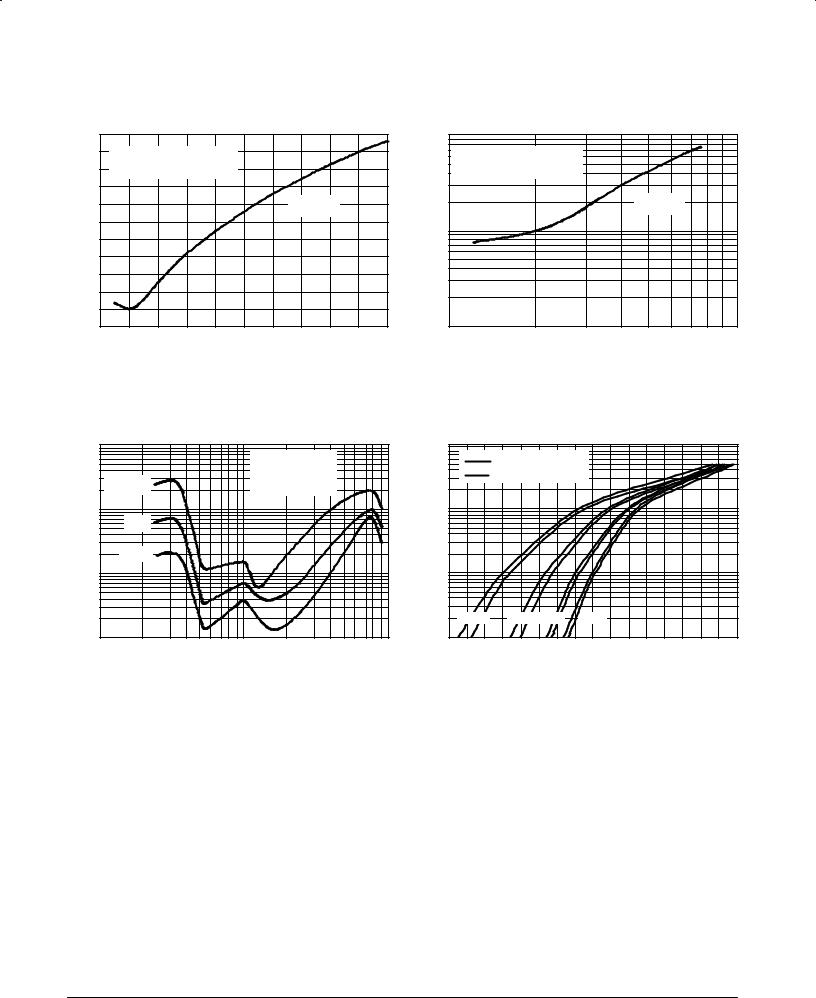

Figure 5. Typical Capacitance

Figure 6. Typical Leakage Current

	100
(mA)CURRENT	1						T	A = 25	°C



, ZENER	10


















Z	0.1
Z
I
I
	0.01





		0	2	4	6	8	10			12

VZ, ZENER VOLTAGE (V)

I Z , ZENER CURRENT (mA)

100

TA = 25°C

0.1

0.0110

VZ, ZENER VOLTAGE (V)

Figure 7. Zener Voltage versus Zener Current	Figure 8. Zener Voltage versus Zener Current
(VZ Up to 12 V)	(12 V to 91 V)

Motorola TVS/Zener Device Data	225 mW SOT-23 Data Sheet
	7-141

GENERAL DATA Ð 225 mW SOT-23

ELECTRICAL CHARACTERISTICS (Pinout: 1-Anode, 2-NC, 3-Cathode) (VF = 0.9 V Max @ IF = 10 mA for all types)

		Zener Voltage				Max Zener			Max		Zener Voltage		Max Zener		Zener Voltage		Max Zener
		VZ1 (Volts)				Impedance		Reverse			VZ2 (Volts)		Impedance		VZ3 (Volts)		Impedance		dVZ/dt		C pF
		@ IZT1 = 5 mA				Z		Leakage			@ IZT2 = 1 mA		Z		@ IZT3 = 20 mA		Z		(mV/k)		C pF
			(Note 1)			ZT1		Current			(Note 1)		ZT2		(Note 1)		ZT3		@ IZT1 = 5 mA		Max
			(Note 1)			(Ohms)		Current			(Note 1)		(Ohms)		(Note 1)		(Ohms)		@ IZT1 = 5 mA		Max
Type						@ I	=	IR		V			@ I	=			@ I	=			@ VR = 0
Number	Marking	Nom		Min	Max	ZT1		μ	@	R	Min	Max	ZT2		Min	Max	ZT3		Min	Max	f = 1 MHz
Number	Marking	Nom		Min	Max	5 mA		A		Volts	Min	Max	1 mA		Min	Max	20 mA		Min	Max
BZX84C2V4LT1	Z11	2.4		2.2	2.6	100		50		1	1.7	2.1	600		2.6	3.2	50		±3.5	0	450
BZX84C2V7LT1	Z12	2.7		2.5	2.9	100		20		1	1.9	2.4	600		3	3.6	50		±3.5	0	450
BZX84C3V0LT1	Z13	3		2.8	3.2	95		10		1	2.1	2.7	600		3.3	3.9	50		±3.5	0	450
BZX84C3V3LT1	Z14	3.3		3.1	3.5	95		5		1	2.3	2.9	600		3.6	4.2	40		±3.5	0	450
BZX84C3V6LT1	Z15	3.6		3.4	3.8	90		5		1	2.7	3.3	600		3.9	4.5	40		±3.5	0	450

BZX84C3V9LT1	Z16	3.9		3.7	4.1	90		3		1	2.9	3.5	600		4.1	4.7	30		±3.5	±2.5	450
BZX84C4V3LT1	W9	4.3		4	4.6	90		3		1	3.3	4	600		4.4	5.1	30		±3.5	0	450
BZX84C4V7LT1	Z1	4.7		4.4	5	80		3		2	3.7	4.7	500		4.5	5.4	15		±3.5	0.2	260
BZX84C5V1LT1	Z2	5.1		4.8	5.4	60		2		2	4.2	5.3	480		5	5.9	15		±2.7	1.2	225
BZX84C5V6LT1	Z3	5.6		5.2	6	40		1		2	4.8	6	400		5.2	6.3	10		±2.0	2.5	200

BZX84C6V2LT1	Z4	6.2		5.8	6.6	10		3		4	5.6	6.6	150		5.8	6.8	6		0.4	3.7	185
BZX84C6V8LT1	Z5	6.8		6.4	7.2	15		2		4	6.3	7.2	80		6.4	7.4	6		1.2	4.5	155
BZX84C7V5LT1	Z6	7.5		7	7.9	15		1		5	6.9	7.9	80		7	8	6		2.5	5.3	140
BZX84C8V2LT1	Z7	8.2		7.7	8.7	15		0.7		5	7.6	8.7	80		7.7	8.8	6		3.2	6.2	135
BZX84C9V1LT1	Z8	9.1		8.5	9.6	15		0.5		6	8.4	9.6	100		8.5	9.7	8		3.8	7.0	130

BZX84C10LT1	Z9	10		9.4	10.6	20		0.2		7	9.3	10.6	150		9.4	10.7	10		4.5	8.0	130
BZX84C11LT1	Y1	11		10.4	11.6	20		0.1		8	10.2	11.6	150		10.4	11.8	10		5.4	9.0	130
BZX84C12LT1	Y2	12		11.4	12.7	25		0.1		8	11.2	12.7	150		11.4	12.9	10		6.0	10.0	130
BZX84C13LT1	Y3	13		12.4	14.1	30		0.1		8	12.3	14	170		12.5	14.2	15		7.0	11.0	120
BZX84C15LT1	Y4	15		13.8	15.6	30		0.05		10.5	13.7	15.5	200		13.9	15.7	20		9.2	13.0	110

BZX84C16LT1	Y5	16		15.3	17.1	40		0.05		11.2	15.2	17	200		15.4	17.2	20		10.4	14.0	105
BZX84C18LT1	Y6	18		16.8	19.1	45		0.05		12.6	16.7	19	225		16.9	19.2	20		12.4	16.0	100
BZX84C20LT1	Y7	20		18.8	21.2	55		0.05		14	18.7	21.1	225		18.9	21.4	20		14.4	18.0	85
BZX84C22LT1	Y8	22		20.8	23.3	55		0.05		15.4	20.7	23.2	250		20.9	23.4	25		16.4	20.0	85
BZX84C24LT1	Y9	24		22.8	25.6	70		0.05		16.8	22.7	25.5	250		22.9	25.7	25		18.4	22.0	80

													ZZT2
						ZZT1							Below				ZZT3
						Below							@ IZT4 =				Below		dVZ/dt
		VZ1 Below				@ IZT1 =					VZ2 Below		0.5 mA		VZ3 Below		@ IZT3 =		(mV/k) Below
		@ IZT1 = 2 mA				2 mA					@ IZT2 = 0.1 mA		(Note 2)		@ IZT3 = 10 mA		10 mA		@ IZT1 = 2 mA
BZX84C27LT1	Y10	27		25.1	28.9	80		0.05		18.9	25	28.9	300		25.2	29.3	45		21.4	25.3	70
BZX84C30LT1	Y11	30		28	32	80		0.05		21	27.8	32	300		28.1	32.4	50		24.4	29.4	70
BZX84C33LT1	Y12	33		31	35	80		0.05		23.1	30.8	35	325		31.1	35.4	55		27.4	33.4	70
BZX84C36LT1	Y13	36		34	38	90		0.05		25.2	33.8	38	350		34.1	38.4	60		30.4	37.4	70
BZX84C39LT1	Y14	39		37	41	130		0.05		27.3	36.7	41	350		37.1	41.5	70		33.4	41.2	45

BZX84C43LT1	Y15	43		40	46	150		0.05		30.1	39.7	46	375		40.1	46.5	80		37.6	46.6	40
BZX84C47LT1	Y16	47		44	50	170		0.05		32.9	43.7	50	375		44.1	50.5	90		42.0	51.8	40
BZX84C51LT1	Y17	51		48	54	180		0.05		35.7	47.6	54	400		48.1	54.6	100		46.6	57.2	40
BZX84C56LT1	Y18	56		52	60	200		0.05		39.2	51.5	60	425		52.1	60.8	110		52.2	63.8	40
BZX84C62LT1	Y19	62		58	66	215		0.05		43.4	57.4	66	450		58.2	67	120		58.8	71.6	35

BZX84C68LT1	Y20	68		64	72	240		0.05		47.6	63.4	72	475		64.2	73.2	130		65.6	79.8	35
BZX84C75LT1	Y21	75		70	79	255		0.05		52.5	69.4	79	500		70.3	80.2	140		73.4	88.6	35

NOTES: 1. Zener voltage is measured with a pulse test current (IZ) applied at an ambient temperature of 25°C.

2. The zener impedance, ZZT2, for the 27 through 75 volt types is tested at 0.5 mA rather than the test current of 0.1 mA used for VZ2.

225 mW SOT-23 Data Sheet	Motorola TVS/Zener Device Data
7-142

GENERAL DATA Ð 225 mW SOT-23

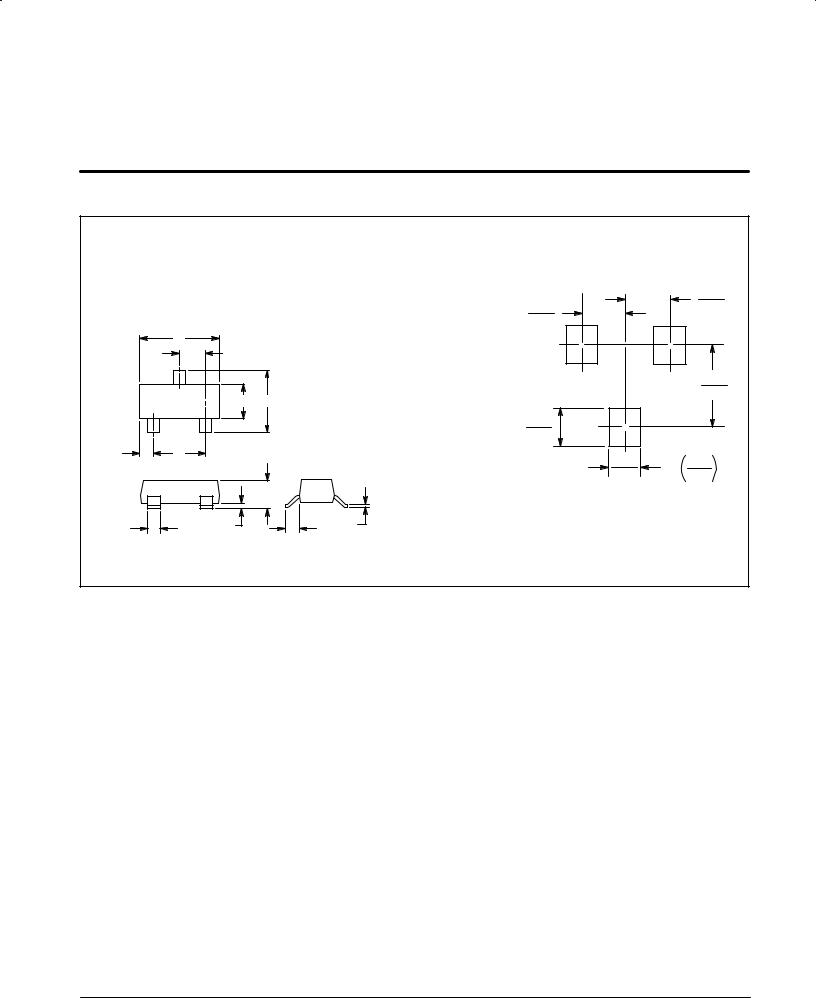

Zener Voltage Regulator Diodes Ð Surface Mounted

225 mW SOT-23

NOTES:

1.DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2.CONTROLLING DIMENSION: INCH.

3.MAXIMUM LEAD THICKNESS INCLUDES LEAD FINISH THICKNESS. MINIMUM LEAD THICKNESS IS THE MINIMUM THICKNESS OF BASE MATERIAL.

	A
	L
	3	S
	B	S
1	2
V	G

	INCHES		MILLIMETERS
DIM	MIN	MAX	MIN	MAX
A	0.1102	0.1197	2.80	3.04
B	0.0472	0.0551	1.20	1.40
C	0.0350	0.0440	0.89	1.11
D	0.0150	0.0200	0.37	0.50
G	0.0701	0.0807	1.78	2.04
H	0.0005	0.0040	0.013	0.100
J	0.0034	0.0070	0.085	0.177
K	0.0180	0.0236	0.45	0.60
L	0.0350	0.0401	0.89	1.02
S	0.0830	0.0984	2.10	2.50
V	0.0177	0.0236	0.45	0.60

STYLE 8:

PIN 1. ANODE

2.NO CONNECTION

3.CATHODE

		C
D	H	K	J

CASE 318-07

PLASTIC

0.037

0.037 0.95

0.95

0.079

2.0

0.035

0.9

0.031

inches

0.8mm

SOT-23 Footprint

(Refer to Section 10 for Surface Mount, Thermal Data and Footprint Information.)

MULTIPLE PACKAGE QUANTITY (MPQ)

REQUIREMENTS

Package Option	Type No. Suffix	MPQ (Units)

Tape and Reel	T1	3K

Tape and Ammo	T3	10K

(Refer to Section 10 for more information on Packaging Specifications.)

Motorola TVS/Zener Device Data	225 mW SOT-23 Data Sheet
