MMSZ5221BT1, MMSZ4678T1, MMSZ2V4T1 Series

ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted [1]), (VF = 0.9 V Max. @ IF = 10 mA for all types)

		Zener Voltage							Max Reverse
			VZ @ IZT						Max Reverse
			VZ @ IZT			Test	Max Zener		Leakage
				Volts		Test			Leakage
				Volts		Current			Current	Test
			[1] [2]			Current	Impedance [3]		Current	Test
						IZT			IR @ VR	Voltage
Type							ZZT	ZZK		VR
Type							@ IZ = IZT	@ IZK = 0.25 mA
Number	Marking	Nom		Min	Max	mA	Ω	Ω	μA	Volts
MMSZ5256BT1	M1	30		28.50	31.50	4.2	49	600	0.1	23
MMSZ5257BT1	M2	33		31.35	34.65	3.8	58	700	0.1	25
MMSZ5258BT1	M3	36		34.20	37.80	3.4	70	700	0.1	27
MMSZ5259BT1	M4	39		37.05	40.95	3.2	80	800	0.1	30
MMSZ5260BT1	M5	43		40.85	45.15	3.0	93	900	0.1	33

MMSZ5261BT1	N1	47		44.65	49.35	2.7	105	1000	0.1	36
MMSZ5262BT1	N2	51		48.45	53.55	2.5	125	1100	0.1	39
MMSZ5263BT1	N3	56		53.20	58.80	2.2	150	1300	0.1	43
MMSZ5264BT1	N4	60		57.00	63.00	2.1	170	1400	0.1	46
MMSZ5265BT1	N5	62		58.90	65.10	2.0	185	1400	0.1	47

MMSZ5266BT1	P1	68		64.60	71.40	1.8	230	1600	0.1	52
MMSZ5267BT1	P2	75		71.25	78.75	1.7	270	1700	0.1	56
MMSZ5268BT1	P3	82		77.90	86.10	1.5	330	2000	0.1	62
MMSZ5269BT1	P4	87		82.65	91.35	1.4	370	2200	0.1	68
MMSZ5270BT1	P5	91		86.45	95.55	1.4	400	2300	0.1	69

[1]Nominal zener voltage is measured with the device junction in thermal equilibrium at TL = 30°C ± 1°C.

[2]All part numbers shown indicate a VZ tolerance of ±5%.

[3]ZZT and ZZK are measured by dividing the AC voltage drop across the device by the AC current applied. The specified limits are for IZ(AC) = 0.1 IZ(DC), with the AC frequency = 1 kHz.

Motorola TVS/Zener Device Data	500 mW Leadless (SOD-123) Data Sheet
	7-149

MMSZ5221BT1, MMSZ4678T1, MMSZ2V4T1 Series

ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted [1], (VF = 0.9 V Max. @ IF = 10 mA for all types)

			Zener Voltage		Max Reverse		Test
			VZ @ IZT = 50 μA		Max Reverse		Test
			VZ @ IZT = 50 μA		Leakage		Voltage
			Volts		Leakage		Voltage
			Volts		Current		VR
Type			[1] [2]		Current		VR
Type					IR	@ VR
Number	Marking	Nom	Min	Max		μA	Volts

MMSZ4678T1	CC	1.8	1.71	1.89		7.5	1
MMSZ4679T1	CD	2.0	1.90	2.10		5	1
MMSZ4680T1	CE	2.2	2.09	2.31		4	1
MMSZ4681T1	CF	2.4	2.28	2.52		2	1
MMSZ4682T1	CH	2.7	2.57	2.84		1	1

MMSZ4683T1	CJ	3.0	2.85	3.15		0.8	1
MMSZ4684T1	CK	3.3	3.14	3.47		7.5	1.5
MMSZ4685T1	CM	3.6	3.42	3.78		7.5	2
MMSZ4686T1	CN	3.9	3.71	4.10		5	2
MMSZ4687T1	CP	4.3	4.09	4.52		4	2

MMSZ4688T1	CT	4.7	4.47	4.94		10	3
MMSZ4689T1	CU	5.1	4.85	5.36		10	3
MMSZ4690T1	CV	5.6	5.32	5.88		10	4
MMSZ4691T1	CA	6.2	5.89	6.51		10	5

MMSZ4692T1	CX	6.8	6.46	7.14		10	5.1
MMSZ4693T1	CY	7.5	7.13	7.88		10	5.7
MMSZ4694T1	CZ	8.2	7.79	8.61		1	6.2
MMSZ4695T1	DC	8.7	8.27	9.14		1	6.6
MMSZ4696T1	DD	9.1	8.65	9.56		1	6.9
MMSZ4697T1	DE	10	9.50	10.50		1	7.6

MMSZ4698T1	DF	11	10.45	11.55		0.05	8.4
MMSZ4699T1	DH	12	11.40	12.60		0.05	9.1
MMSZ4700T1	DJ	13	12.35	13.65		0.05	9.8
MMSZ4701T1	DK	14	13.30	14.70		0.05	10.6
MMSZ4702T1	DM	15	14.25	15.75		0.05	11.4

MMSZ4703T1	DN	16	15.20	16.80		0.05	12.1
MMSZ4704T1	DP	17	16.15	17.85		0.05	12.9
MMSZ4705T1	DT	18	17.10	18.90		0.05	13.6
MMSZ4706T1	DU	19	18.05	19.95		0.05	14.4
MMSZ4707T1	DV	20	19.00	21.00		0.01	15.2

MMSZ4708T1	DA	22	20.90	23.10		0.01	16.7
MMSZ4709T1	DZ	24	22.80	25.20		0.01	18.2
MMSZ4710T1	DY	25	23.75	26.25		0.01	19.00
MMSZ4711T1	EA	27	25.65	28.35		0.01	20.4
MMSZ4712T1	EC	28	26.60	29.40		0.01	21.2

MMSZ4713T1	ED	30	28.50	31.50		0.01	22.8
MMSZ4714T1	EE	33	31.35	34.65		0.01	25.0
MMSZ4715T1	EF	36	34.20	37.80		0.01	27.3
MMSZ4716T1	EH	39	37.05	40.95		0.01	29.6
MMSZ4717T1	EJ	43	40.85	45.15		0.01	32.6

[1]Nominal zener voltage is measured with the device junction in thermal equilibrium at TL = 30°C ± 1°C.

[2]All part numbers shown indicate a VZ tolerance of ± 5%

500 mW Leadless (SOD-123) Data Sheet	Motorola TVS/Zener Device Data
7-150

MMSZ5221BT1, MMSZ4678T1, MMSZ2V4T1 Series

ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted), (VF = 0.9 V Max. @ IF = 10 mA for all types)

		Zener Voltage				Max Zener	Max				Zener Voltage			Max Zener
				VZ1 (Volts)		Max Zener	Reverse				VZ2 (Volts)			Max Zener
				VZ1 (Volts)		Impedance	Reverse				VZ2 (Volts)			Impedance
		@ IZT1 = 5 mA				Impedance	Leakage				@ IZT2 = 1 mA			Impedance
		@ IZT1 = 5 mA				ZZT1	Leakage				@ IZT2 = 1 mA			ZZT2
			[1][2]			ZZT1	Current					[1]		ZZT2
						@ IZT1 = 5 mA								@ IZT1 = 1 mA
Type						[3]	IR		@ VR					[3]
Number	Marking	Nom		Min	Max	Ω	μA			Volts	Min		Max	Ω

MMSZ2V4T1	T1	2.4		2.28	2.52	100	50			1	1.7		2.1	600
MMSZ2V7T1	T2	2.7		2.57	2.84	100	20			1	1.9		2.4	600
MMSZ3V0T1	T3	3.0		2.85	3.15	95	10			1	2.1		2.7	600
MMSZ3V3T1	T4	3.3		3.14	3.47	95	5			1	2.3		2.9	600
MMSZ3V6T1	T5	3.6		3.42	3.78	90	5			1	2.7		3.3	600

MMSZ3V9T1	U1	3.9		3.71	4.10	90	3			1	2.9		3.5	600
MMSZ4V3T1	U2	4.3		4.09	4.52	90	3			1	3.3		4.0	600
MMSZ4V7T1	U3	4.7		4.47	4.94	80	3			2	3.7		4.7	500
MMSZ5V1T1	U4	5.1		4.85	5.36	60	2			2	4.2		5.3	480
MMSZ5V6T1	U5	5.6		5.32	5.88	40	1			2	4.8		6.0	400

MMSZ6V2T1	V1	6.2		5.89	6.51	10	3			4	5.6		6.6	150
MMSZ6V8T1	V2	6.8		6.46	7.14	15	2			4	6.3		7.2	80
MMSZ7V5T1	V3	7.5		7.13	7.88	15	1			5	6.9		7.9	80
MMSZ8V2T1	V4	8.2		7.79	8.61	15	0.7			5	7.6		8.7	80
MMSZ9V1T1	V5	9.1		8.65	9.56	15	0.5			6	8.4		9.6	100

MMSZ10T1	A1	10		9.50	10.50	20	0.2			7	9.3		10.6	150
MMSZ11T1	A2	11		10.45	11.55	20	0.1			8	10.2		11.6	150
MMSZ12T1	A3	12		11.40	12.60	25	0.1			8	11.2		12.7	150
MMSZ13T1	A4	13		12.35	13.65	30	0.1			8	12.3		14.0	170
MMSZ15T1	A5	15		14.25	15.75	30	0.05			10.5	13.7		15.5	200

MMSZ16T1	X1	16		15.20	16.80	40	0.05			11.2	15.2		17.0	200
MMSZ18T1	X2	18		17.10	18.90	45	0.05			12.6	16.7		19.0	225
MMSZ20T1	X3	20		19.00	21.00	55	0.05			14	18.7		21.1	225
MMSZ22T1	X4	22		20.80	23.10	55	0.05			15.4	20.7		23.2	250
MMSZ24T1	X5	24		22.80	25.20	70	0.05			16.8	22.7		25.5	250

		Zener Voltage				Max Zener	Max				Zener Voltage			Max Zener
			VZ1 (Volts)			Max Zener	Reverse				VZ2 (Volts)			Max Zener
			VZ1 (Volts)			Impedance	Reverse				VZ2 (Volts)			Impedance
		@ IZT1 = 2 mA				Impedance	Leakage				@ IZT2 = 0.1 mA			Impedance
		@ IZT1 = 2 mA				ZZT1	Leakage				@ IZT2 = 0.1 mA			ZZT2
			[1][2]			ZZT1	Current					[1]		ZZT2
						@ IZT1 = 2 mA								@ IZT1 = 0.5 mA
Type						[3]	IR	@ VR						[3][4]
Number	Marking	Nom		Min	Max	Ω	μA			Volts	Min		Max	Ω

MMSZ27T1	Y1	27		25.65	28.35	80	0.05		18.9		25		28.9	300
MMSZ30T1	Y2	30		28.50	31.50	80	0.05		21		27.8		32	300
MMSZ33T1	Y3	33		31.35	34.65	80	0.05		23.1		30.8		35	325
MMSZ36T1	Y4	36		34.20	37.80	90	0.05		25.2		33.8		38	350
MMSZ39T1	Y5	39		37.05	40.95	130	0.05		27.3		36.7		41	350

MMSZ43T1	Z1	43		40.85	45.15	150	0.05		30.1		39.7		46	375
MMSZ47T1	Z2	47		44.65	49.35	170	0.05		32.9		43.7		50	375
MMSZ51T1	Z3	51		48.45	53.55	180	0.05		35.7		47.6		54	400
MMSZ56T1	Z4	56		53.20	58.80	200	0.05		39.2		51.5		60	425
MMSZ62T1	Z5	62		58.90	65.10	215	0.05		43.4		57.4		66	450

MMSZ68T1	Z6	68		64.60	71.40	240	0.05		47.6		63.4		72	475
MMSZ75T1	Z7	75		71.25	78.75	255	0.05		52.5		69.4		79	500

[1]Zener voltage is measured with the zener current applied for PW = 1.0 ms.

[2]All part numbers shown indicate a VZ tolerance of ±5%.

[3]ZZT1 and ZZT2 are measured by dividing the AC voltage drop across the device by the AC current applied. The specified limits are for IZ(AC) = 0.1 IZ(DC), with the AC frequency = 1 kHz.

[4]The zener impedance, ZZT2, for the 27 through 75 volt types is tested at 0.5 mA rather than the test current of 0.1 mA used for VZ2.

Motorola TVS/Zener Device Data	500 mW Leadless (SOD-123) Data Sheet
	7-151

MMSZ5221BT1, MMSZ4678T1, MMSZ2V4T1 Series

INFORMATION FOR USING THE SOD-123 SURFACE MOUNT PACKAGE

MINIMUM RECOMMENDED FOOTPRINTS FOR

SURFACE MOUNT APPLICATIONS

0.91

0.036

Surface mount board layout is a critical portion of the total

design. The footprint for the semiconductor packages must be
the correct size to ensure proper solder connection interface						1.22
between the board and the package.			0.048
The minimum recommended footprint for the SOD-123 is
shown at the right.
shown at the right.		2.36
The SOD-123 package can be used on existing surface		0.093			mm
mount boards which have been designed for the leadless 34	4.19				mm
mount boards which have been designed for the leadless 34	4.19			inches

package style. The footprint compatibility makes conversion	0.165
package style. The footprint compatibility makes conversion	0.165

from leadless 34 to SOD-123 straightforward.

Figure 11. Minimum Recommended Footprint

SOD-123 POWER DISSIPATION

The power dissipation of the SOD-123 is a function of the pad size. This can vary from the minimum pad size for soldering to a pad size given for maximum power dissipation. Power dissipation for a surface mount device is determined by

TJ(max), the maximum rated junction temperature of the die, RθJA, the thermal resistance from the device junction to

ambient; and the operating temperature, TA. Using the values provided on the data sheet for the SOD-123 package, PD can be calculated as follows:

TJ(max) ± TA PD = RθJA

The values for the equation are found in the maximum

ratings table on the data sheet. Substituting these values into the equation for an ambient temperature TA of 25°C, one can calculate the power dissipation of the device which in this case is 0.37 watts.

PD = 150°C ± 25°C = 0.37 watts 340°C/W

The 340°C/W for the SOD-123 package assumes using recommended footprint shown on FR-4 glass epoxy printed circuit board. Another alternative is to use a ceramic substrate or an aluminum core board such as Thermal Clad . By using an aluminum core board material such as Thermal Clad, the power dissipation can be doubled using the same footprint.

GENERAL SOLDERING PRECAUTIONS

The melting temperature of solder is higher than the rated temperature of the device. When the entire device is heated to a high temperature, failure to complete soldering within a short time could result in device failure. Therefore, the following items should always be observed in order to minimize the thermal stress to which the devices are subjected.

•Always preheat the device.

•The delta temperature between the preheat and soldering should be 100°C or less.*

•When preheating and soldering, the temperature of the leads and the case must not exceed the maximum temperature ratings as shown on the data sheet. When

using infrared heating with the reflow soldering method, the difference shall be a maximum of 10°C.

•The soldering temperature and time shall not exceed 260°C for more than 10 seconds.

•When shifting from preheating to soldering, the maximum temperature gradient shall be 5°C or less.

•After soldering has been completed, the device should be allowed to cool naturally for at least three minutes. Gradual cooling should be used as the use of forced cooling will increase the temperature gradient and result in latent failure due to mechanical stress.

•Mechanical stress or shock should not be applied during cooling

* Soldering a device without preheating can cause excessive thermal shock and stress which can result in damage to the device.

500 mW Leadless (SOD-123) Data Sheet	Motorola TVS/Zener Device Data
7-152

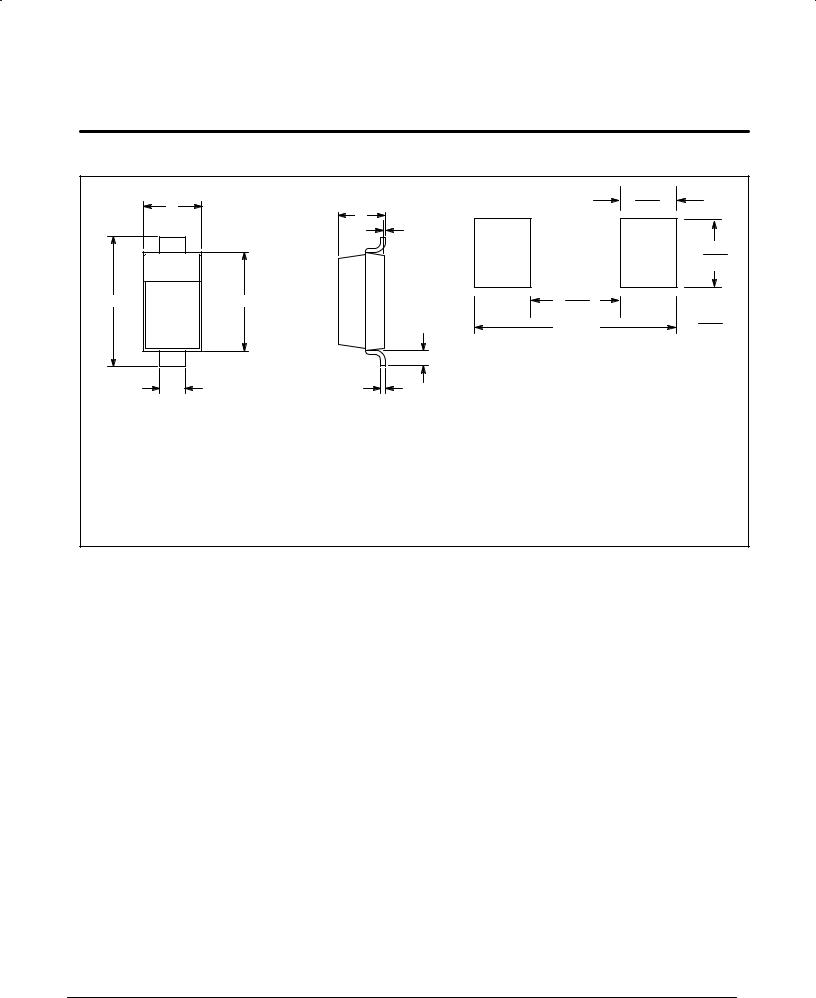

Zener Voltage Regulator Diodes Ð Surface Mounted

500 mW SOD-123

A		0.91
A	C	0.036
	C
	H
1			1.22
ÂÂ			1.22
ÂÂ			0.048
ÂÂÂ
K	B	2.36
K	B	0.093
		0.093	mm
		4.19	mm
		4.19	inches
		0.165	inches
		0.165
2	E	SOD-123 Footprint
	E	SOD-123 Footprint
D	J

NOTES:

1.DIMENSIONING AND TOLERANCING PER ANSI Y14.5M, 1982.

2.CONTROLLING DIMENSION: INCH.

3.425-01 THRU -03 OBSOLETE, NEW STANDARD

425-04.

	MILLIMETERS		INCHES
DIM	MIN	MAX	MIN	MAX
A	1.40	1.80	0.055	0.071
B	2.55	2.85	0.100	0.112
C	0.95	1.35	0.037	0.053
D	0.50	0.70	0.020	0.028
E	0.25	Ð	0.010	Ð
H	0.00	0.10	0.000	0.004
J	Ð	0.15	Ð	0.006
K	3.55	3.85	0.140	0.152

CASE 425	STYLE 1:
	PIN 1. CATHODE
PLASTIC	2. ANODE

(Refer to Section 10 for Surface Mount, Thermal Data and Footprint Information.)

MULTIPLE PACKAGE QUANTITY (MPQ)

REQUIREMENTS

Package Option	Type No. Suffix	MPQ (Units)

Tape and Reel	T1(1)	3K
Tape and Reel	T3(2)	10K

NOTE: 1. The numbers on the suffixes indicate the following:

1.7″ Reel. Cathode lead toward sprocket hole.

2.13″ Reel. Cathode lead toward sprocket hole.

(Refer to Section 10 for more information on Packaging Specifications.)

500 mW Leadless (SOD-123) Data Sheet	Motorola TVS/Zener Device Data
7-153
