GENERAL DATA Ð 225 mW SOT-23

ELECTRICAL CHARACTERISTICS (Pinout: 1-Anode, 2-NC, 3-Cathode) (VF = 0.9 V Max @ IF = 10 mA for all types.)

			Zener
		Test	Voltage	ZZK	ZZT	Max
		Current	VZ (± 5%)	ZZK	IZ = IZT	Max	@	VR
		IZT	Nominal	IZ = 0.25 mA	@ 10% Mod	IR	@	VR
Device	Marking	mA	(Note 1)	Ω Max	Ω Max	μA		V

MMBZ5221BLT1	18A	20	2.4	1200	30	100		1
MMBZ5222BLT1	18B	20	2.5	1250	30	100		1
MMBZ5223BLT1	18C	20	2.7	1300	30	75		1
MMBZ5224BLT1	18D	20	2.8	1400	30	75		1
MMBZ5225BLT1	18E	20	3	1600	29	50		1

MMBZ5226BLT1	8A	20	3.3	1600	28	25		1
MMBZ5227BLT1	8B	20	3.6	1700	24	15		1
MMBZ5228BLT1	8C	20	3.9	1900	23	10		1
MMBZ5229BLT1	8D	20	4.3	2000	22	5		1
MMBZ5230BLT1	8E	20	4.7	1900	19	5		2

MMBZ5231BLT1	8F	20	5.1	1600	17	5		2
MMBZ5232BLT1	8G	20	5.6	1600	11	5		3
MMBZ5233BLT1	8H	20	6	1600	7	5		3.5
MMBZ5234BLT1	8J	20	6.2	1000	7	5		4
MMBZ5235BLT1	8K	20	6.8	750	5	3		5

MMBZ5236BLT1	8L	20	7.5	500	6	3		6
MMBZ5237BLT1	8M	20	8.2	500	8	3		6.5
MMBZ5238BLT1	8N	20	8.7	600	8	3		6.5
MMBZ5239BLT1	8P	20	9.1	600	10	3		7
MMBZ5240BLT1	8Q	20	10	600	17	3		8

MMBZ5241BLT1	8R	20	11	600	22	2		8.4
MMBZ5242BLT1	8S	20	12	600	30	1		9.1
MMBZ5243BLT1	8T	9.5	13	600	13	0.5		9.9
MMBZ5244BLT1	8U	9	14	600	15	0.1		10
MMBZ5245BLT1	8V	8.5	15	600	16	0.1		11

MMBZ5246BLT1	8W	7.8	16	600	17	0.1		12
MMBZ5247BLT1	8X	7.4	17	600	19	0.1		13
MMBZ5248BLT1	8Y	7	18	600	21	0.1		14
MMBZ5249BLT1	8Z	6.6	19	600	23	0.1		14
MMBZ5250BLT1	81A	6.2	20	600	25	0.1		15

MMBZ5251BLT1	81B	5.6	22	600	29	0.1		17
MMBZ5252BLT1	81C	5.2	24	600	33	0.1		18
MMBZ5253BLT1	81D	5	25	600	35	0.1		19
MMBZ5254BLT1	81E	4.6	27	600	41	0.1		21
MMBZ5255BLT1	81F	4.5	28	600	44	0.1		21

MMBZ5256BLT1	81G	4.2	30	600	49	0.1		23
MMBZ5257BLT1	81H	3.8	33	700	58	0.1		25
MMBZ5258BLT1	81J	3.4	36	700	70	0.1		27
MMBZ5259BLT1	81K	3.2	39	800	80	0.1		30
MMBZ5260BLT1	18F	3	43	900	93	0.1		33

MMBZ5261BLT1	81M	2.7	47	1000	105	0.1		36
MMBZ5262BLT1	81N	2.5	51	1100	125	0.1		39
MMBZ5263BLT1	81P	2.2	56	1300	150	0.1		43
MMBZ5264BLT1	81Q	2.1	60	1400	170	0.1		46
MMBZ5265BLT1	81R	2	62	1400	185	0.1		47

MMBZ5266BLT1	81S	1.8	68	1600	230	0.1		52
MMBZ5267BLT1	81T	1.7	75	1700	270	0.1		56
MMBZ5268BLT1	81U	1.5	82	2000	330	0.1		62
MMBZ5269BLT1	81V	1.4	87	2200	370	0.1		68
MMBZ5270BLT1	81W	1.4	91	2300	400	0.1		69

NOTE 1. Zener voltage is measured with a pulse test current (IZT) applied at an ambient temperature of 25°C.

225 mW SOT-23 Data Sheet	Motorola TVS/Zener Device Data
7-144

MOTOROLA

SEMICONDUCTOR

TECHNICAL DATA

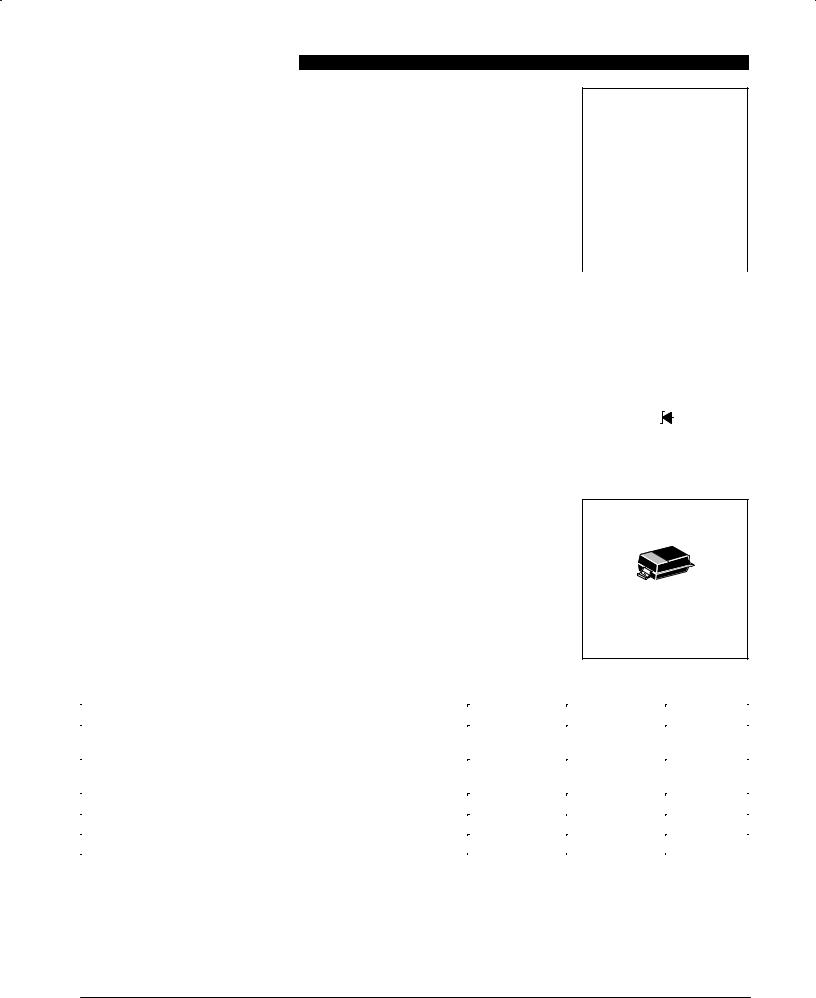

Designer's Data Sheet	MMSZ5221BT1-
	MMSZ5270BT1*
Surface Mount Silicon Zener Diodes
	MMSZ4678T1-
Plastic SOD%123 Package	MMSZ4717T1
Three complete series of Zener Diodes are offered in the convenient, surface mount	MMSZ2V4T1-
	MMSZ75T1
plastic SOD-123 package. These devices provide a convenient alternative to the leadless	MMSZ75T1

34 package style.	*Motorola Preferred Device Series
	*Motorola Preferred Device Series
• 500 mW Rating on FR-4 or FR-5 Board
• 500 mW Rating on FR-4 or FR-5 Board
• Package Designed for Optimal Automated Board Assembly
• Corrosion Resistant Finish, Easily Solderable	PLASTIC SURFACE
• ESD Rating of Class 3 (exceeding 16 kV) per the Human Body Model		MOUNT
• Small Package Size for High Density Applications	ZENER DIODES
• Available in 8 mm Tape and Reel	500 MILLIWATTS
Add ªT1º to the device number to order the 7 inch/3000 unit reel.	1.8 ± 91 VOLTS

Add ªT3º to the device number to order the 13 inch/10,000 unit reel.

• Wafer Fab Location: Phoenix, Arizona
• Wafer Fab Location: Phoenix, Arizona
Assembly/Test Location: Seremban, Malaysia	1		2
MMSZ5221BT1 thru MMSZ5270BT1

		1: CATHODE
		1: CATHODE
• General Purpose, Medium Current		2: ANODE
• Wide Voltage Range Ð 2.4 to 91 Volts

MMSZ4678T1 thru MMSZ4717T1

•Low Operating Currents, Low Leakage, Sharp Breakdown Characteristics

•Wide Voltage Range Ð 1.8 to 43 Volts

MMSZ2V4T1 thru MMSZ75T1

•Specified Similar to European BZV55C Series

•Wide Voltage Range Ð 2.4 to 75 Volts

CASE 425, STYLE 1

PLASTIC

DEVICE RATING (TA = 25°C unless otherwise noted)

Rating	Symbol	Value	Unit

Power Dissipation on FR-4 or FR-5 Board [1]	PD	500	mW
Derate above TL = 75°C	Ð	6.7	mW/°C
Thermal Resistance Junction to Lead [2]	RθJL	150	°C/W
Thermal Resistance Junction to Ambient [2]	RθJA	340	°C/W
Thermal Resistance Junction to Ambient [2]	RθJA	340
Junction Temperature Range	TJ	±55 to +150	°C
Storage Temperature Range	Tstg	±55 to +150	°C
Lead Solder Temperature ± Maximum (10 sec. duration)	Ð	260	°C

[1]FR-4 or FR-5 = 3.5 x 1.5 inches, using the Motorola minimum recommended footprint as shown in Figure 11.

[2]Thermal Resistance measurement obtained via Infrared Scan Method

Designer's Data for ªWorst Case'' Conditions Ð The Designer's Data Sheet permits the design of most circuits entirely from the information presented. Limit curves Ð representing boundaries on device characteristics Ð are given to facilitate ªworst case'' design.

Designer's is a trademark of Motorola, Inc.

Thermal Clad is a trademark of the Bergquist Company.

Preferred devices are Motorola recommended choices for future use and best overall value.

Motorola TVS/Zener Device Data	500 mW Leadless (SOD-123) Data Sheet
	7-145

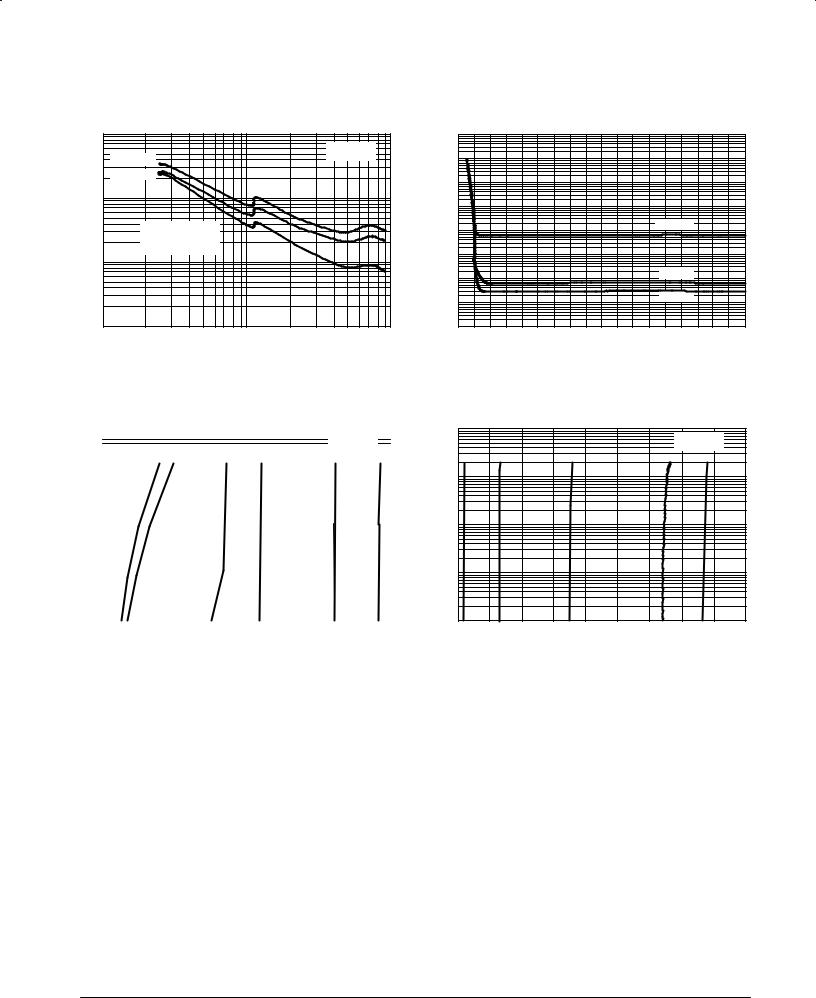

MMSZ5221BT1, MMSZ4678T1, MMSZ2V4T1 Series

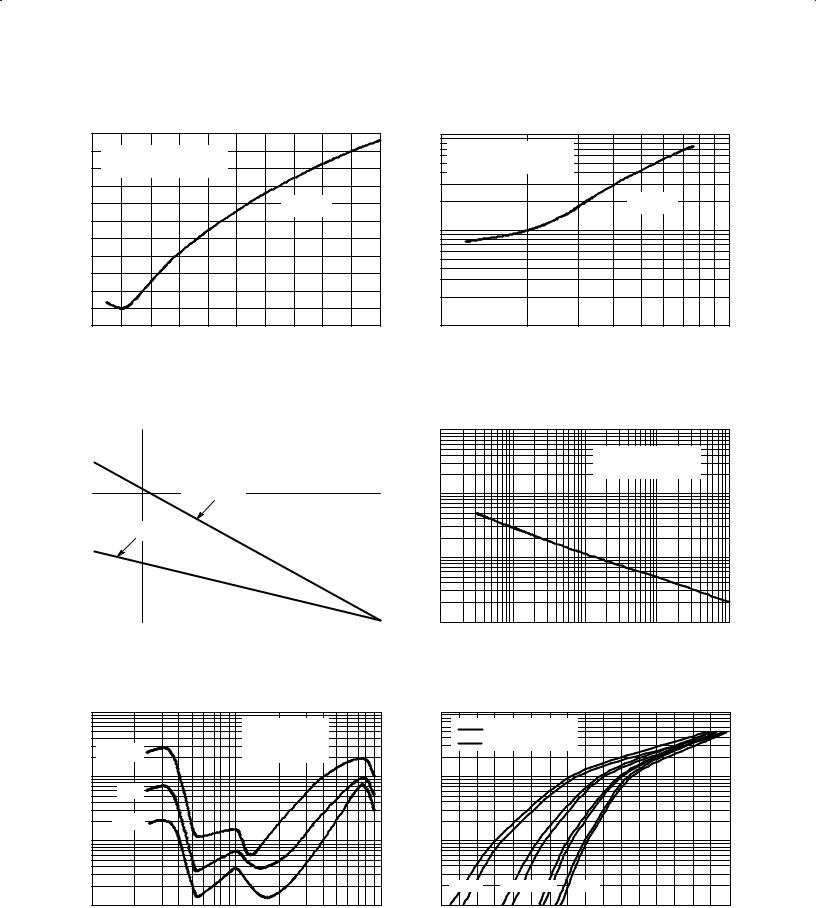

TYPICAL CHARACTERISTICS

(mV/°C)	8										(mV/°C)	100
	7	TYPICAL TC VALUES
	6	TYPICAL TC VALUES
		FOR MMSZ5221BT1 SERIES
COEFFICIENT		FOR MMSZ5221BT1 SERIES									COEFFICIENT
	5
	4							VZ @ IZT
	3							VZ @ IZT
	3											10

TEMPERATURE	2										TEMPERATURE
	2
	1
	0
	±1
,											,
VZ	± 2										VZ
θ	± 2										θ
θ											θ
	± 3	3	4	5	6	7	8	9	10	11	12	1
	2	3	4	5	6	7	8	9	10	11	12
				VZ, NOMINAL ZENER VOLTAGE (V)

	TYPICAL TC VALUES
	FOR MMSZ5221BT1 SERIES
	VZ @ IZT
10	100

VZ, NOMINAL ZENER VOLTAGE (V)

Figure 1. Temperature Coefficients	Figure 2. Temperature Coefficients
(Temperature Range ± 55°C to +150°C)	(Temperature Range ± 55°C to +150°C)

PD, POWER DISSIPATION (WATTS)

1.2
1.2
1.0
1.0				PD versus T
0.8				PD versus T		L
0.6
0.6		PD versus TA
		PD versus TA
0.4
0.4
0.2
0.2
0
0	0	25	50		75		100	125	150
				T, TEMPERATURE (°C)

	1000
(WATTS)				RECTANGULAR
(WATTS)				WAVEFORM, TA = 25°C
SURGE POWER	100
SURGE POWER
, PEAK	10
, PEAK
pk
P
	10.1	1	10	100	1000

PW, PULSE WIDTH (ms)

Figure 3. Steady State Power Derating

Figure 4. Maximum Nonrepetitive Surge Power

	1000					1000
			TJ = 25°C					75 V (MMSZ5267BT1)
)			IZ(AC) = 0.1 IZ(DC)		CURRENT(mA)			91 V (MMSZ5270BT1)
IMPEDANCE(Ω		IZ = 1 mA	f = 1 kHz
IMPEDANCE(Ω	100					100
	100					100
DYNAMIC,		5 mA			FORWARD
DYNAMIC,		20 mA			FORWARD
		20 mA
	10					10
ZT					F
					,
Z					I
							150°C	75°C	25°C	0°C
	1	1	10	100		1	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2
		1	10	100		0.4	0.5	0.6	0.7	0.8	0.9	1.0	1.1	1.2
			VZ, NOMINAL ZENER VOLTAGE						VF, FORWARD VOLTAGE (V)

	Figure 5. Effect of Zener Voltage on	Figure 6. Typical Forward Voltage
	Zener Impedance

500 mW Leadless (SOD-123) Data Sheet		Motorola TVS/Zener Device Data
7-146

		MMSZ5221BT1, MMSZ4678T1, MMSZ2V4T1 Series
			TYPICAL CHARACTERISTICS
	1000				1000
		0 V BIAS	TA = 25°C		100
		0 V BIAS		A)	100
		1 V BIAS		A)	10
		1 V BIAS		μ
C, CAPACITANCE (pF)				μ
				, LEAKAGE CURRENT (
	100				1
					1
		BIAS AT			0.1							+150°C
		BIAS AT			0.1
		50% OF VZ NOM			0.01
	10				0.01
	10											+ 25°C
					0.001							+ 25°C
				R	0.001
				R
				I								± 55°C
					0.0001							± 55°C
					0.0001
	1	10	100	0.00001		10	20	30	40	50	60	70	80	90
	1	10	100		0	10	20	30	40	50	60	70	80	90
		VZ, NOMINAL ZENER VOLTAGE (V)						VZ, NOMINAL ZENER VOLTAGE (V)

Figure 7. Typical Capacitance

Figure 8. Typical Leakage Current

	100
(mA)CURRENT	1						T	A = 25	°C



, ZENER	10


















Z	0.1
Z
I
I
	0.01





		0	2	4	6	8	10			12

VZ, ZENER VOLTAGE (V)

I Z , ZENER CURRENT (mA)

100

TA = 25°C

0.1

0.0110

VZ, ZENER VOLTAGE (V)

Figure 9. Zener Voltage versus Zener Current	Figure 10. Zener Voltage versus Zener Current
(VZ Up to 12 V)	(12 V to 91 V)

Motorola TVS/Zener Device Data	500 mW Leadless (SOD-123) Data Sheet
	7-147

MMSZ5221BT1, MMSZ4678T1, MMSZ2V4T1 Series

ELECTRICAL CHARACTERISTICS (TA = 25°C unless otherwise noted [1]), (VF = 0.9 V Max. @ IF = 10 mA for all types)

		Zener Voltage							Max Reverse
			VZ @ IZT						Max Reverse
			VZ @ IZT			Test	Max Zener		Leakage
				Volts		Test			Leakage
				Volts		Current			Current	Test
			[1] [2]			Current	Impedance [3]		Current	Test
						IZT			IR @ VR	Voltage
Type							ZZT	ZZK		VR
Type							@ IZ = IZT	@ IZK = 0.25 mA
Number	Marking	Nom		Min	Max	mA	Ω	Ω	μA	Volts
MMSZ5221BT1	C1	2.4		2.28	2.52	20	30	1200	100	1
MMSZ5222BT1	C2	2.5		2.38	2.63	20	30	1250	100	1
MMSZ5223BT1	C3	2.7		2.57	2.84	20	30	1300	75	1
MMSZ5224BT1	C4	2.8		2.66	2.94	20	30	1400	75	1
MMSZ5225BT1	C5	3.0		2.85	3.15	20	30	1600	50	1

MMSZ5226BT1	D1	3.3		3.14	3.47	20	28	1600	25	1
MMSZ5227BT1	D2	3.6		3.42	3.78	20	24	1700	15	1
MMSZ5228BT1	D3	3.9		3.71	4.10	20	23	1900	10	1
MMSZ5229BT1	D4	4.3		4.09	4.52	20	22	2000	5	1
MMSZ5230BT1	D5	4.7		4.47	4.94	20	19	1900	5	2

MMSZ5231BT1	E1	5.1		4.85	5.36	20	17	1600	5	2
MMSZ5232BT1	E2	5.6		5.32	5.88	20	11	1600	5	3
MMSZ5233BT1	E3	6.0		5.70	6.30	20	7	1600	5	3.5
MMSZ5234BT1	E4	6.2		5.89	6.51	20	7	1000	5	4
MMSZ5235BT1	E5	6.8		6.46	7.14	20	5	750	3	5

MMSZ5236BT1	F1	7.5		7.13	7.88	20	6	500	3	6
MMSZ5237BT1	F2	8.2		7.79	8.61	20	8	500	3	6.5
MMSZ5238BT1	F3	8.7		8.27	9.14	20	8	600	3	6.5
MMSZ5239BT1	F4	9.1		8.65	9.56	20	10	600	3	7
MMSZ5240BT1	F5	10		9.50	10.50	20	17	600	3	8

MMSZ5241BT1	H1	11		10.45	11.55	20	22	600	2	8.4
MMSZ5242BT1	H2	12		11.40	12.60	20	30	600	1	9.1
MMSZ5243BT1	H3	13		12.35	13.65	9.5	13	600	0.5	9.9
MMSZ5244BT1	H4	14		13.30	14.70	9.0	15	600	0.1	10
MMSZ5245BT1	H5	15		14.25	15.75	8.5	16	600	0.1	11

MMSZ5246BT1	J1	16		15.20	16.80	7.8	17	600	0.1	12
MMSZ5247BT1	J2	17		16.15	17.85	7.4	19	600	0.1	13
MMSZ5248BT1	J3	18		17.10	18.90	7.0	21	600	0.1	14
MMSZ5249BT1	J4	19		18.05	19.95	6.6	23	600	0.1	14
MMSZ5250BT1	J5	20		19.00	21.00	6.2	25	600	0.1	15

MMSZ5251BT1	K1	22		20.90	23.10	5.6	29	600	0.1	17
MMSZ5252BT1	K2	24		22.80	25.20	5.2	33	600	0.1	18
MMSZ5253BT1	K3	25		23.75	26.25	5.0	35	600	0.1	19
MMSZ5254BT1	K4	27		25.65	28.35	4.6	41	600	0.1	21
MMSZ5255BT1	K5	28		26.60	29.40	4.5	44	600	0.1	21

[1]Nominal zener voltage is measured with the device junction in thermal equilibrium at TL = 30°C ± 1°C.

[2]All part numbers shown indicate a VZ tolerance of ±5%.

[3]ZZT and ZZK are measured by dividing the AC voltage drop across the device by the AC current applied. The specified limits are for IZ(AC) = 0.1 IZ(DC), with the AC frequency = 1 kHz.

500 mW Leadless (SOD-123) Data Sheet	Motorola TVS/Zener Device Data
7-148
