5. Заполните таблицу, распределив данные ниже слова в соответствующие колонки; составьте с этими словами свои предложения.

Source, special, comparatively, addition, definite, fractional, technically, frame, equal, feature, electricity, numerous, load, useful, commonly, mag-

1. Single-phase motors are known to perform a great variety of usefully services in the home.

2. Single-phase distribution are being using when loads are mostly lighting and heating, with few large electric motors.

3. A single-phase load may be powered from a three-phase distribution

systems neither by connection between a phase and neutral or by connecting the load between two phases.

4. Split phase systems are required less copper for the same voltage drop, final utilization voltage, and power transmitted than single phase systems. 5. Sinchronus motors, as the name implies, operated at synchronous speed for all values of load.

Д

7. Прочтите текст еще раз и ответьте на вопросы.

1.What kinds of motors are technically referred as “small motors”?

2.Under what conditions are they designed to operate?

3.Where can single-phase motors be used?

4.What types of such machines have been developed by the motormanufcturingindustry?

5.What type of motor works equally well both on direct and alternating current up to 60 cycles?

6.What characteristic features of such motors do you know?

7.What types of motors connected to a single-phase source of supply is the most widely used? И

56

8. Передайте смысл каждого абзаца текста в одном высказывании.

9. оставьте логический план текста. Подберите предложения, наиболее полно отвечающие на вопросы плана, и подготовьте

Срассказ об однофазном электродвигателе.

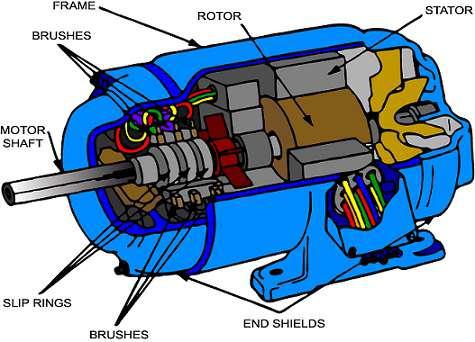

13. Определ те т п двигателя (рис. 13) и опишите его.

и бА

РисД. 13

TEXT 7

1.Просмотрите текст и выделите в нем ключевые слова, которые могут помочь вам понять содержание.

2.Выделите в тексте известные вам термины-названия приборов / устройств / процессов. Расскажите, что вы знаете о них.

3.Найдите среди данных ниже слов пары синонимов.И

Design, to convert, configuration, to decrease, type, value, primary, to transform, accelerate, balance, step down, degree, kind, proportion, step up, secondary, to increase.

57

4. Прочтите и переведите текст.

TRANSFORMERS

Unlike the generator, a transformer cannot be used to convert mechanical energy into electrical energy, it being able to transform electrical

Сenergy from one circuit at the same or some other voltage.

Essentially, a transformer consists of two coils, not electrically connected to each other, but wound over a common core. The core may also be of open type or it may be merely a tube of some insulating material, the latter being referred to as an air core.

и coil and inducesбАan e.m.f. therein. The value of this induced e.m.f. depends

If a varying voltage be applied to the primary coil, the electromagnetic field set up around the coil will rise and fall in accordance with the e.m.f. variations applied. This moving field cuts the turns in the secondary

upon the strength of the applied e.m.f. and the ratio of secondary turns to primary turns. Should there be twice as many turns in the secondary as in the primary, the voltage in the secondary would be twice that applied to the primary. If there were half as many turns in the secondary, the voltage would be half that applied to the primary. This voltage steps up or step down in proportion to turn ratio will hold good for all combinations. Where the voltage is raised, however, amperage is lost in the same proportions, and vice versa. Therefore, the power in watts supplied to the trans-

cy to about 90 percent. Д Transformers are classed according to the use they are designed for.

former is the same as that drawn from it, assuming the transformer to be 100 per cent efficient. The copper losses, or ohmic resistance of the windings, and the core losses due to induction of eddy currents in the core mate-

rial, as well as hysteresis or molecular friction caused by changing polarity

of the current applied, all combined to reduce modern transformer efficien- И

Where it is desired to step up a low-voltage a.c. supply to a value useful for radio receivers and transmitters, a power transformer is used. The windings are sufficiently heavy to carry the current without undue heating, and the

secondary may consist of two or more separate windings to provide various voltages from the one input source.

As the iron core increases, the inductive reactance of the transformer increases, and inasmuch as this type of reactance also increases. With the frequency of the applied alternating current, there is a limit to the frequencies that can be efficiently used in transformers with metallic cores. Where very high frequency alternating current is used, such as in the r-f circuits of

58

receivers and transmitters, air core transformers must be used to eliminate prohibitive core losses.

6. Прочтите слова вслух и назовите их эквиваленты на русском языке.

Generator; refer; strength; primary; assume; winding; efficiency; circuit; apply; ratio; secondary; ohmic; hysteresis; prohibitive.

7. Подберите к каждому выделенному слову из колонки А подходящее значение из колонки В. Обратите внимание, что в колонке В присутствует несколько лишних значений.

59

ошибки и исправьте их, используя следующие выражения:

It’s true. Exactly so. Definitely so. That’s right. – eсли предложение со-

держит достоверную информацию;

Nothing of the kind. That’s wrong. It’s false. On the contrary. – eсли

предложение содержит недостоверную информацию.

1. A transformer is a device that transfers electrical energy from one circuit to another through inductively coupled electrical conductors.

2.A current passing through the primary coil creates a magnetic field.

3.The voltage induced across the secondary coil may be calculated from Ohm’s law of induction.
