The analysis of the obtained results of modeling is expressed via a dependency captured in Fig. 1 and shows that a 20 % increase in porosity causes smaller velocities due to changes in porous properties of a wave propagation medium. Nevertheless using differential methods of measurement, we can see this happening with a great degree of certainty, which allows fundamental insight into a dynamic nature of a medium presented in Fig. 2 and indicating influences of micropores on propagation of an elastic wave. This is not just a change in the velocity of its propagation but also of its absorption. Energy dissipation is expressed through component transformation of waves at the boundary between an elastic and gaseous medium of pores. Fig. 3 and 4 show dependencies of changes in the velocity of propagation of a longitudinal elastic wave in materials (both for solid cement and materials saturated with gas). Graphs have a linear dependence which shows elastic energy of waves is redistributed on concentrations of stresses and cracks. A dynamic modulus changes in the identical fashion except its sign which is also indicative of residual resources of a cement concrete pavement.

Conclusions

1.The authors suggest the use of the method of acoustic emission based on reading elastic wave signals arising as microdefects occur in the structure of a material under the impact of mechanical loads and allowing detection of defects as they emerge.

2.The designed graphs show that the velocity of propagation of an elastic acoustic wave decreases as a material becomes more porous and dynamic connections between the components of a medium increase. There is a dependency of the velocity of waves on the density за materials: an increase in the latter causes a decrease in the former.

3.The developed physical and mathematical model of the formation of elastic waves of acoustic emission as the microstructure of a cement concrete material fails, it allows one to address further performance and residual resource of an airfield pavement. The connection identified between the characteristics of propagation of elastic waves and physical and mechanical properties of a medium contributes to the accuracy of predicting possible failures.

References

1.Belyx, A. G. Rasprostranenie udarnyx voln v betonnyx pokrytiyax ae'rodroma pri silovom vozdejstvii kolesnyx opor vozdushnyx sudov. / A. G. Belyx, L. A. Kukarskix // Sb. st. Mezhdunar. nauch. in-ta Educatio. — 2014. — № 4. — S. 128—131.

2.Bykovcev, G. I. O rasprostranenii voln v uprugo-vyazko-plasticheskoj srede / G. I. Bykovcev, N. D. Vervejko // Inzhenernyj zhurnal MTT. — 1966. — № 4. — S. 111—123.

61

Scientific Herald of the Voronezh State University of Architecture and Civil Engineering. Construction and Architecture

3.Vasil'ev, N. E. Ae'rodromnye pokrytiya: sovremennyj vzglyad / N. E. Vasil'ev, V. A. Kul'chickij, V. A. Mokogonov. — M.: Fiz.-mat. lit., 2002. — 528 s.

4.Grushko, I. M. Voprosy teorii struktury, prochnosti i razrusheniya betonov / I. M. Grushko, V. D. Altuxov // Texnologicheskaya mexanika betona: sb. nauch. tr. — Riga: Rizhskij politexnich. in-t, 1986. — S. 15—29.

5.Zajcev, Yu. V. Modelirovanie deformacii i prochnosti betona metodami mexaniki razrusheniya / Yu. V. Zajcev. — M.: Strojizdat, 1982. — 196 s.

6.Lange, Yu. V. Akusticheskie nizkochastotnye metody i sredstva kontrolya mnogoslojnyx konstrukcij / Yu. V. Lange. — M.: Mashinostroenie,1991. — 276 s.

7.Nigmatulin, R. I. Udarnye volny i fazovye prevrashheniya v zheleze / R. I. Nigmatulin // Prikladnaya mexanika i texnicheskaya fizika. — 1976. — № 5. — S. 128—135.

8.Rossixin, Yu. A. O rasprostranenii voln v uprugo-vyazko-plasticheskoj srede / Yu. A. Rossixin // Prikladnaya mexanika. — 1969. — T. V, vyp. 5. — S. 82—88.

9.Semashko, N. A. Akusticheskaya e'missiya v e'ksperimental'nom materialovedenii / N. A. Semashko, V. I. Shport. — M.: Mashinostroenie, 2002. — S. 32—36.

10.Tomas, T. Plasticheskoe techenie i razrushenie v tverdyx telax / T. Tomas. — M.: Mir, 1964. — 308 s.

11.Biot, M. A. Theory propagation of elastic waves in a fluid-saturated porous solid. I. Low-Frequency Range / M. A. Biot // Journal of the Acoustical Society of America. — 1956. — V. 28, N 2. — P. 168—178.

12. Hamstad, M. A. Effects of lateral dimensions on acoustic emission signals from dipole sources / M. A. Hamstad, A. O. Gallagher, J. Gary // Journal of acoustic emission. — 2007. — V. 19. — P. 258—274.

13.Krajcinovich, D. Statistical Damage Mechanics. Part I: Theory / D. Krajcinovich, A. Rinaldi // Applied Mechanics. — 2005. — V. 72, N 1. — P. 76—85.

14.Theobald, P. Velocity sensitivity calibration of AE sensors using the through wave method and laser interferometry [E'lektronnyj resurs] / P. Theobald, R. Pocklington // EWGAE—2010. — Vienna, 2010. — Rezhim dostupa: http://www.ndt.net/article/ewgae2010/papers/54_Theobald.pdf.

62

UDC 625.084

R. V. Kupriyanov1, V. A. Luzgachev2, A. F. Zubkov3

DETERMINING THE TEMPERATURE OF THE ASPHALT MIX

DURING THE CONSTRUCTION

OF ASPHALT CONCRETE NON-RIGID PAVEMENT

Tambov State Technical University

Russia, Tambov, tel.: (4752)63-09-20, e-mail: r.kupriyanoff@yandex.ru 1PhD student of Dept. of Urban Construction and Roadways

2PhD in Engineering, Assoc. Prof. of Dept. of Natural Resources and Environmental Protection 3D. Sc. in Engineering, Prof., Assoc. Prof. of Dept. of Urban Construction and Roadways

Statement of the problem. The lack of analytical expressions for calculating the temperature of the hot mix taking into account the simultaneous influence of various factors, does not allow one to specify the duration of technological processes of construction of road surfaces the non-rigid type. Therefore, for the proper organization of construction of laying of hot asphalt mixes and processes the laying and compaction within the specified temperature ranges, one must identify the dependency, which enables the determination of the temperature of the hot mixture taking into account the effect of all of these factors.

Results. In the article the mathematical dependence of the factors affecting the cooling rate of the hot asphalt mix, which resulted in the calculated dependence for determining the temperature of the hot asphalt mix at some point in time is identified. The influence of the thickness of a layer, air temperature, wind speed, temperature of the mix during a technological process in designing nonrigid road pavements is established. An analytical dependence to calculate the temperature of the hot mix considering the time of cooling, weather conditions and construction parameters of road pavement is obtained.

Conclusions. The dependence used to calculate the temperature of the mix, taking into account the temperature of the mixture, wind speed, thickness of the stacked layer, the air temperature at a specific point in time helps one to account for the influence of the time of technological processes on the construction of non-rigid road pavements.

Keywords: temperature, asphalt mix, thickness of the layer, wind speed.

Introduction

The quality of the construction of non-rigid pavements depends on the properties of a material and compliance to the requirements concerning industrial laying of hot asphalt mixes.

© Kupriyanov R. V., Luzgachev V. А., Zubkov А. F., 2016

63

Scientific Herald of the Voronezh State University of Architecture and Civil Engineering. Construction and Architecture

The analysis of technologies employed in the construction of pavements showed that choice of machinery and their operation modes depend on the properties of a material that are characterized with the temperature of the hot mix [1—5]. The current guidelines and regulations specify the temperature of making, laying and compacting hot mixes in the construction of asphalt concrete pavements [6, 7].

The practice of construction of roadways shows that depending on specific working and weather conditions, the cooling rate of the hot mix layer in a pavement can vary, which affects times spent on laying, compaction and thus the output quality. Current regulations on the temperature of the hot mix depending on weather conditions and construction parameters of pavements are underpinned by experimental data and do not allow for the effects of the mix temperature at a certain point in the production affected by a number of specific weather and industrial factors [8].

1. Identifying factors influencing cooling of an asphalt concrete mix. Experimental studies show that cooling of a hot asphalt concrete mix of a pavement is exponential regardless of the composition, air temperature and wind speed [9]. Road pavements are known to heat due to solar radiation with their temperatures given by the formula [10]

where tв is the air temperature, °С.

This dependence allows one to determine the temperature of a paving surface. In their research B.I. Ladygin and N.V. Gorelysheva do so by introducing a coefficient allowing for effects of the temperature of the base course while paving is being laid [5, 10].

The construction time of non-rigid pavements considering the air temperature and thickness of a pavement layer is calculated [2]. The suggested construction times allow for a specific temperature of a mix when it is being laid notwithstanding that it may vary considerably on site as well as shortly after the work commences (Table 1).

64

The pre sented dat a allow for a whole r ange of factors contri buting to th e construction at a

stribute and cooling of a surfacing layer being speedier. Works are performed at po sitive air tempera tures and t heir time de pend on the air tempe rature.

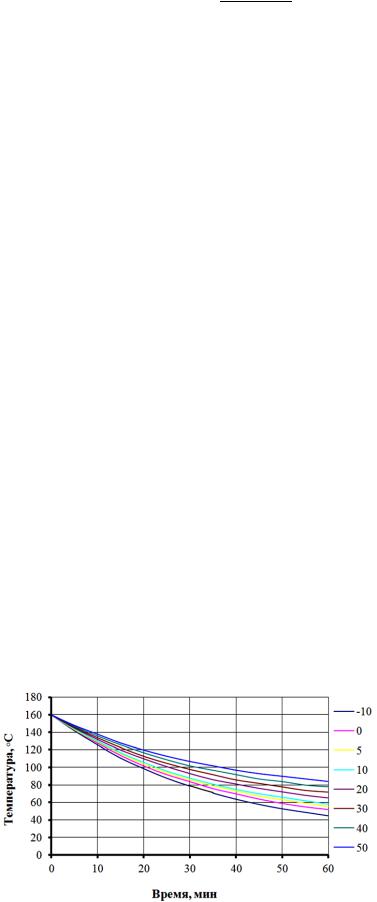

2. Ana ysis of the result of mathemat cal modeling. In ord er to identify laws co ncerning cooling of a hot as phalt concrete mix in the constr ction of road surfacin g and common dependencies of the temperature of the hot mix on a range of fa ctors, ther mal proces ses were modeled using a software developed at the Department of Urban Construction and Roadways of Tambov State Tech ical University [12]. Fig. 1 and Table 2 present the r esults of

air temperature, 0С: 1 — 10; 2 — 0; 3 — 5; 4 — 10; 5 — 20; 6 — 30; 7 — 4 0; 8 — 50
