where MRBWS is a matrix of type RIGID_SCALE and MRB is a matrix of type RIGID.​

•​AFFINE:​

No constraints apply to this matrix, so it contains twelve degrees of freedom. This type of Frame of Reference Transformation​ Matrix allows shearing in addition to rotation, translation and scaling.​

For a RIGID type of Frame of Reference Transformation Matrix, the inverse is easily computed using the following formula (inverse​ of an orthonormal matrix):​

For RIGID_SCALE and AFFINE types of Registration Matrices, the inverse cannot be calculated using the above equation, and must​ be calculated using a conventional matrix inverse operation.​

- Standard -​

- Standard -​

Q Breast Imaging Report (Informative)​

Q.1 Breast Imaging Report Content Tree Structure​

The templates for the Breast Imaging Report are defined in PS3.16. Relationships defined in the Breast Imaging Report templates​ are by-value. This template structure may be conveyed using the Enhanced SR SOP Class or the Basic Text SR SOP Class.​

Breast Imaging

Report (CONTAINER)

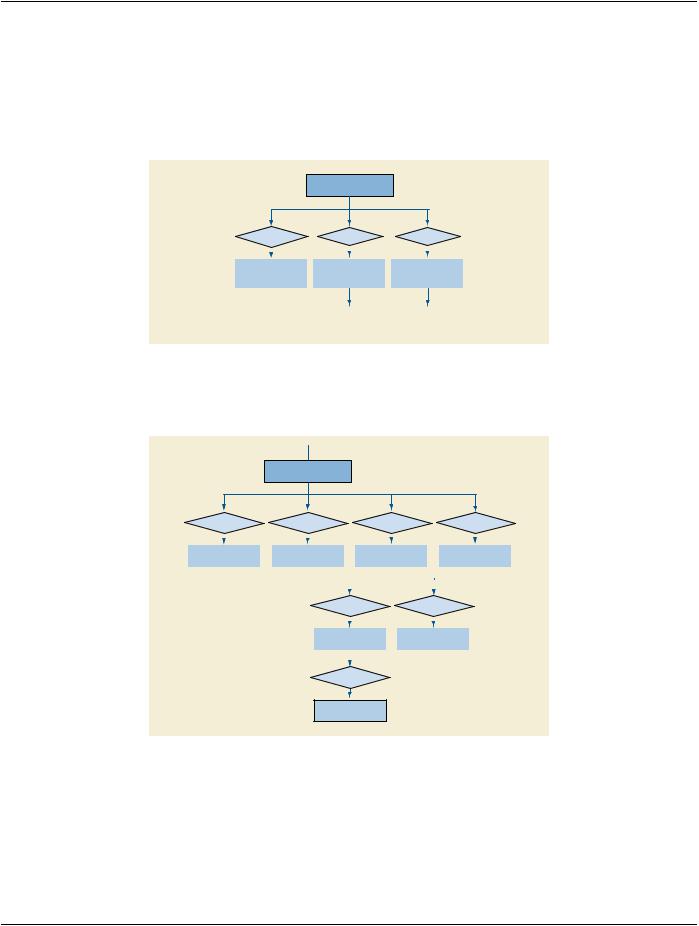

Figure Q.1-1. Top Level of Breast Imaging Report Content Tree​

As shown in Figure Q.1-1, the Breast Imaging Report Narrative and Breast Imaging Report Supplementary Data sub-trees together​ form the content tree of the Breast Imaging Report.​

Breast Imaging

Procedure Reported

(CODE)

HAS

PROPERTIES

Laterality

(CODE)

Figure Q.1-2. Breast Imaging Procedure Reported Content Tree​

The Breast Imaging Procedure Reported sub-tree is a mandatory child of the Supplementary Data content item, to describe all of the​ procedurestowhichthereportappliesusingcodedterminology.Itmayalsobeusedasasub-treeofsectionswithintheSupplementary​ Data sub-tree, for the instance in which a report covers more than one procedure, but different sections of the Supplementary Data​ record the evidence of a subset of the procedures.​

- Standard -​

Narrative Summary

(CONTAINER)

CONTAINS

DCID (6052)

Breast Imaging Report

Section Title (CONTAINER)

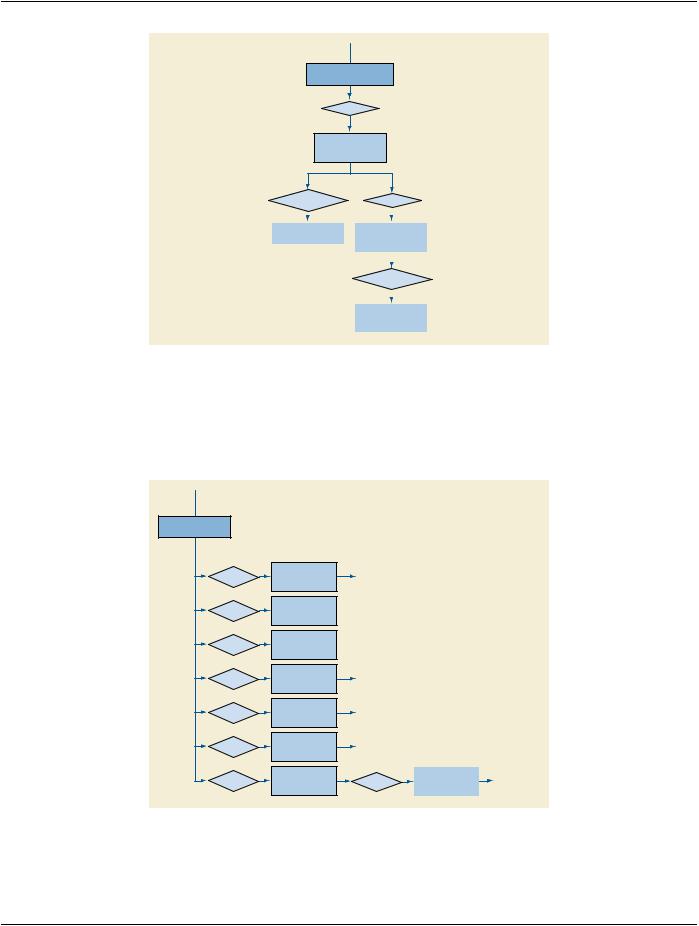

Figure Q.1-3. Breast Imaging Report Narrative Content Tree​

An instance of the Breast Imaging Report Narrative sub-tree contains one or more text-based report sections, with a name chosen​ from CID 6052 “Breast Imaging Report Section Title”. Within a report section, one or more observers may be identified. This sub-tree​ is intended to contain the report text as it was created, presented to, and signed off by the verifying observer. It is not intended to​ convey the exact rendering of the report, such as formatting or visual organization. Report text may reference one or more image or​ other composite objects on which the interpretation was based.​

Figure Q.1-4. Breast Imaging Report Supplementary Data Content Tree​

AninstanceoftheBreastImagingReportSupplementaryDatasub-treecontainsoneormoreof:BreastImagingProcedureReported,​

BreastCompositionSection,BreastImagingReportFindingSection,BreastImagingReportInterventionSection,OverallAssessment.​

- Standard -​

Thissub-treeisintendedtocontainthesupportingevidencefortheBreastImagingReportNarrativesub-tree,usingcodedterminology​ and numeric data.​

Breast Imaging

Assessment

(INCLUDE)

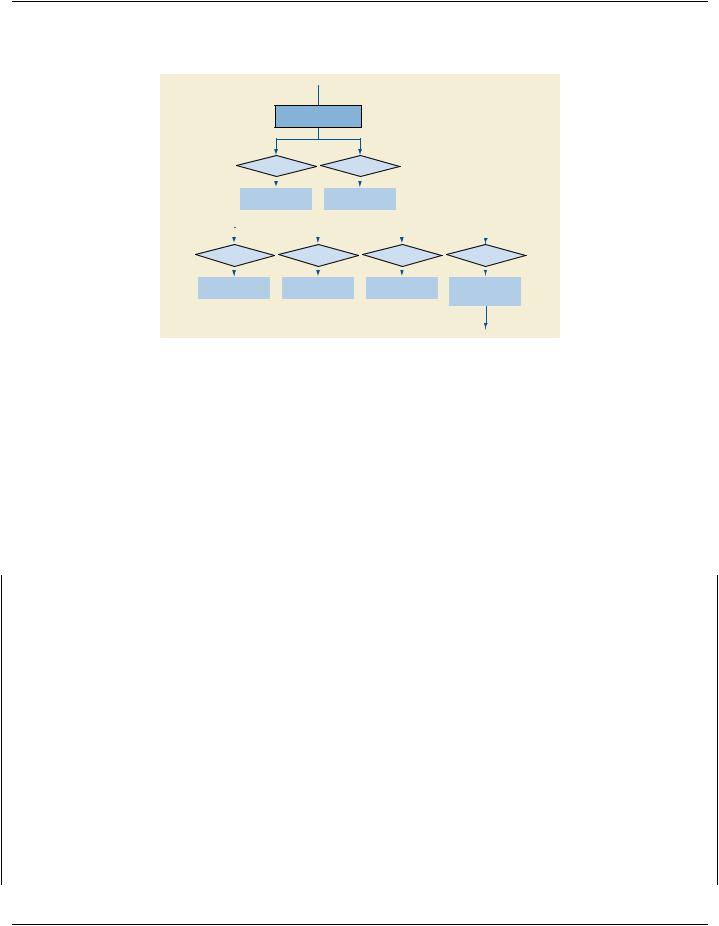

Figure Q.1-5. Breast Imaging Assessment Content Tree​

The Breast Imaging Assessment sub-tree may be instantiated as the content of an Overall Assessment section of a report (see Fig-​ ure Q.1-4), or as part of a Findings section of a report (see TID 4206 “Breast Imaging Report Finding Section”). Reports may provide​ an individual assessment for each Finding, and then an overall assessment based on an aggregate of the individual assessments.​

Q.2 Breast Imaging Report Examples​

The following are simple illustrations of encoding Mammography procedure based Breast Imaging Reports.​

Q.2.1 Example 1: Screening Mammogram With Negative Findings​

Ascreeningmammographycase,i.e.,therearetypicallyfourfilmsandnosuspiciousabnormalities.Theresultisanegativemammogram​ with basic reporting. This example illustrates a report encoded as narrative text only:​

Example Q.2-1. Report Sample: Narrative Text Only​

Procedure reported

Film screen mammography, both breasts.

Reason for procedure

Screening

Findings

Comparison was made to exam from 11/14/2001. The breasts are heterogeneously dense. This may lower the sensitivity of mammography. No significant masses, calcifications, or other abnormalities are present. There is no significant change from the prior exam.

Impressions

BI-RADS® Category 1: Negative. Recommend normal interval follow-up in 12 months
