Page 376​

DICOM PS3.17 2020a - Explanatory Information​

Hanging​

Image​

ImageSize​ISO Teeth Designation​

Protocol​

Location​

(typical)​

Name​

Code​



DL-C009A​

10​

Standard​ 47, 46, 45​



11​

44, 43, 42​



12​

42, 41, 31, 32​



13​

32, 33, 34​



14​

35, 36, 37​

Reference: DL-C009-U0L1​

15​

Occlusal​ 48, 47, 46, 45, 44, 43, 42,​



41, 31, 32, 33​



16​

46, 45, 44, 43, 42, 41, 31,​





32, 33, 34, 35, 36​



17​

43, 42, 41, 31, 32, 33, 34,​





35, 36, 37, 38​

Reference: DL-C009-U0L2​

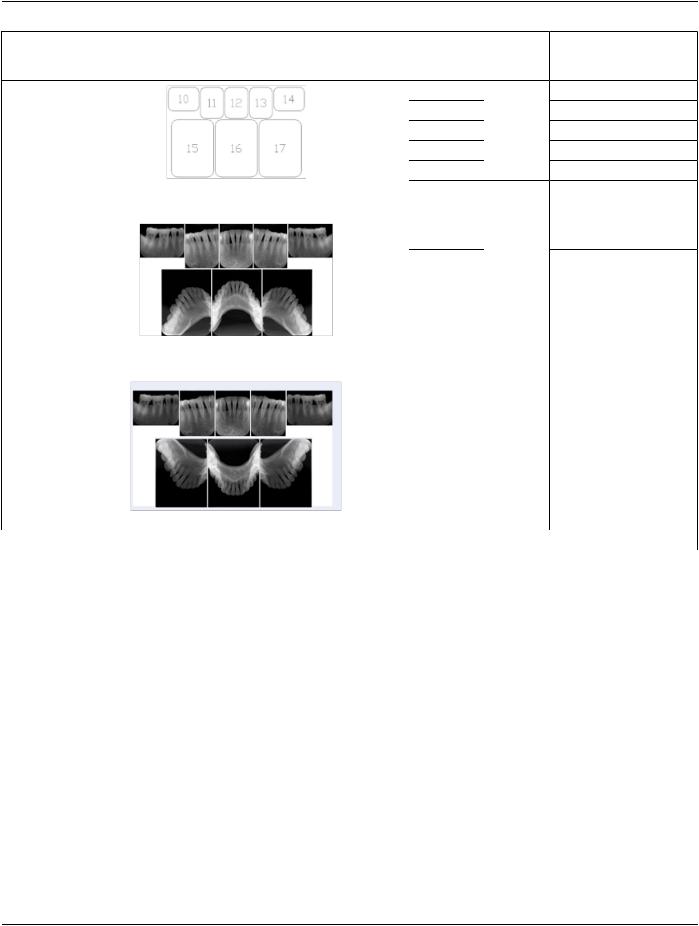

7 Standard + 3 Occlusal Maxilla A Dental Image Layout​

- Standard -​

DICOM PS3.17 2020a - Explanatory Information​

Page 377​

Hanging​

Image​

ImageSize​ISO Teeth Designation​

Protocol​

Location​



(typical)​

Name​

Code​





DL-C010A​

00​

Standard​ 18, 17, 16​



01​



16, 15, 14​



02​



14, 13, 12​



03​



12, 11, 21, 22​



04​



22, 23, 24​

Reference: DL-C010A-U1L0​

05​



24, 25, 26​



06​



26, 27, 28​



07​

Occlusal​

18, 17, 16, 15, 14, 13, 12,​







11, 13, 12, 11, 21, 22, 23​



08​



16, 15, 14, 13, 12, 11, 13,​







12, 11, 21, 22, 23, 24, 25,​







26​

Reference: DL-C010A-U2L0​

09​



13, 12, 11, 21, 22, 23, 24,​





25, 26,27, 28​







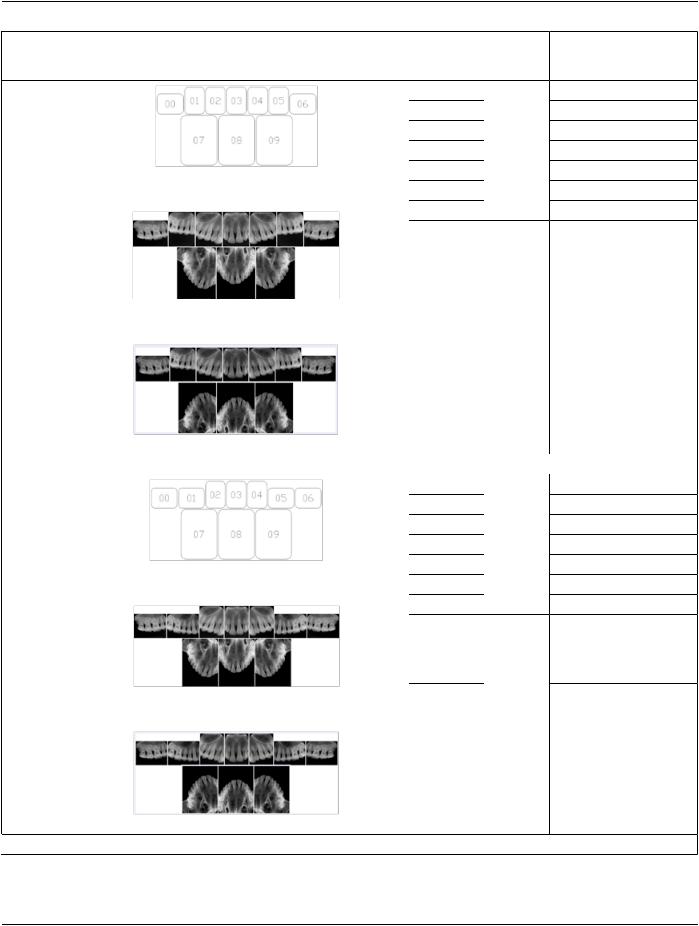

7 Standard + 3 Occlusal Maxilla B Dental Image Layout​





DL-C010B​

00​

Standard​ 18, 17, 16​



01​

16, 15, 14​



02​

14, 13, 12​



03​

12, 11, 21, 22​



04​

22, 23, 24​

Reference: DL-C010B-U1L0​

05​

24, 25, 26​



06​

26, 27, 28​



07​

Occlusal​ 48, 47, 46, 45, 44, 43, 42,​





41, 31, 32, 33​



08​

46, 45, 44, 43, 42, 41, 31,​





32, 33, 34, 35, 36​



09​

43, 42, 41, 31, 32, 33, 34,​

Reference: DL-C010B-U2L0​



35, 36, 37, 38​

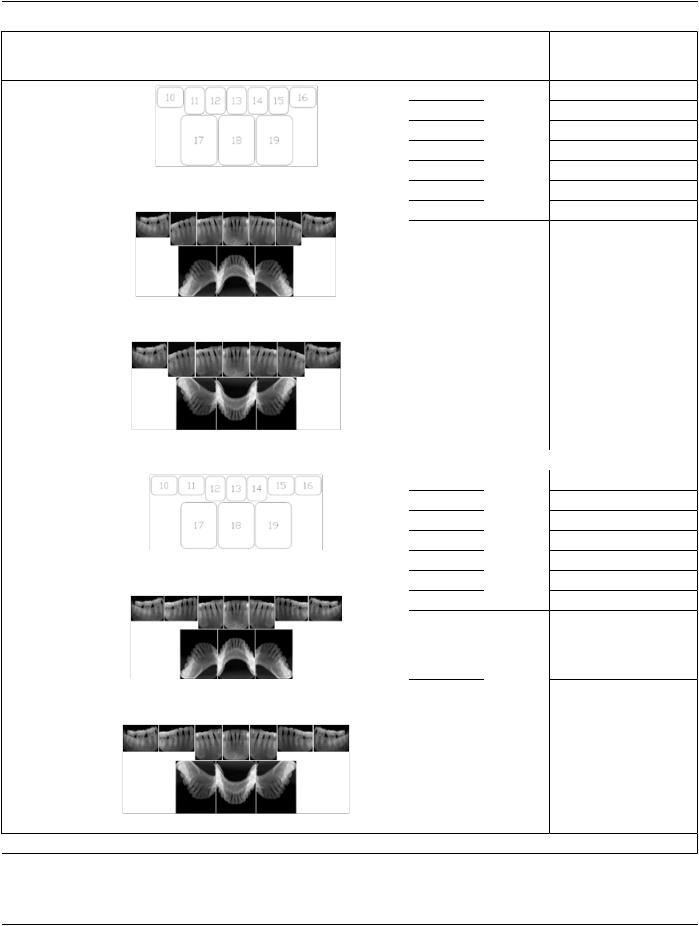

7 Standard + 3 Occlusal Mandible A Dental Image Layout​

- Standard -​

Page 378​

DICOM PS3.17 2020a - Explanatory Information​

Hanging​



Image​

ImageSize​ISO Teeth Designation​

Protocol​



Location​

(typical)​

Name​



Code​



DL-C011A​



10​

Standard​ 48, 47, 46​





11​

46, 45, 44​





12​

44, 43, 42​





13​

42, 41, 31, 32​





14​

32, 33, 34​

Reference: DL-C011A-U0L1​

15​

34, 35, 36​





16​

36, 37, 38​





17​

Occlusal​ 18, 17, 16, 15, 14, 13, 12,​







11, 13, 12, 11, 21, 22, 23​





18​

16, 15, 14, 13, 12, 11, 13,​







12, 11, 21, 22, 23, 24, 25,​







26​

Reference: DL-C011A-U0L2​

19​

13, 12, 11, 21, 22, 23, 24,​



25, 26,27, 28​







7 Standard + 3 Occlusal Mandible B Dental Image Layout​





DL-C011B​

10​

Standard​ 48, 47, 46​



11​

46, 45, 44​



12​

44, 43, 42​



13​

42, 41, 31, 32​

Reference: DL-C011B-U0L1​

14​

32, 33, 34​

15​

34, 35, 36​





16​

36, 37, 38​



17​

Occlusal​ 48, 47, 46, 45, 44, 43, 42,​





41, 31, 32, 33​



18​

46, 45, 44, 43, 42, 41, 31,​





32, 33, 34, 35, 36​

Reference: DL-C011B-U0L2​

19​

43, 42, 41, 31, 32, 33, 34,​



35, 36, 37, 38​

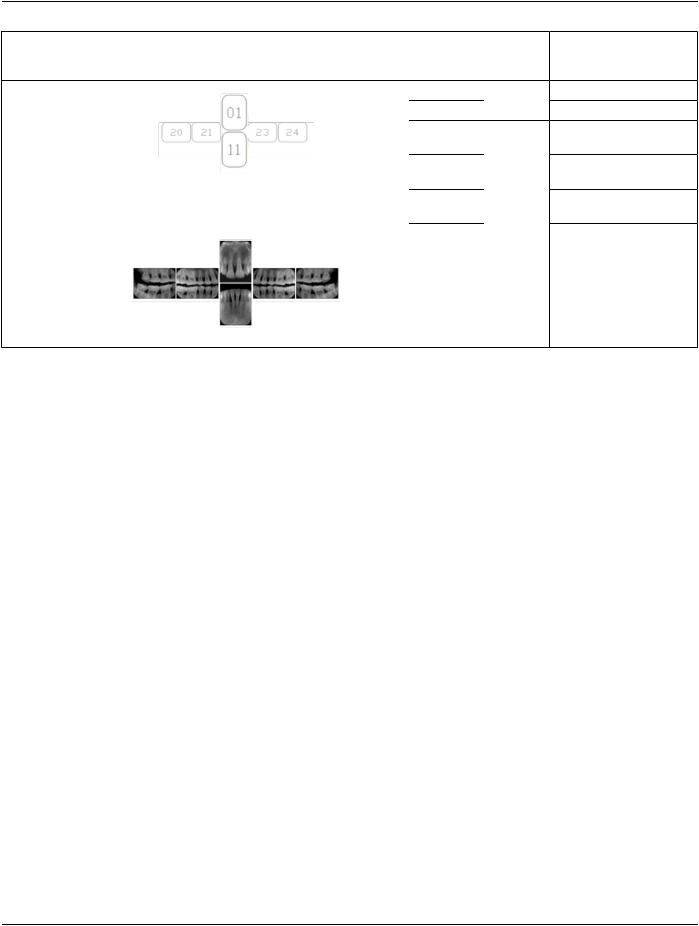

6 Standard + 4 Bitewing C Dental Image Layout​

- Standard -​



DICOM PS3.17 2020a - Explanatory Information​

Page 379​

Hanging​

Image​

ImageSize​ISO Teeth Designation​

Protocol​

Location​



(typical)​

Name​

Code​





DL-P002E​

01​

Standard​ 11, 12, 21, 22​



11​



32, 31, 41, 42​



20​

Bitewing​

18, 17, 16, 15, 48, 47, 46,​







45​



21​



17, 16, 15, 14 47, 46, 45,​







44​

Reference:​

23​



27, 26, 25, 24, 37, 36, 35,​





34​









24​



28, 27, 26, 25, 38, 37, 36,​







35​

OO.1.2 Ophthalmology​

1.​A patient in rural Canada visits a general ophthalmologist and is found to have diabetic macular edema. The general ophthalmo-​ logist would like to discuss the case with a retina specialist before performing laser surgery. A fluorescein angiogram is done​ with multiple retinal images taken in a timed series after an intravenous injection. The images along with a Structured Display​ are shared via a Health Information Exchange with a retina specialist in Calgary, who opens them using his Ophthalmology EMR​ software and consults via phone with the general ophthalmologist. Both physicians view the images in the same layout so the​ retina specialist can provide accurate guidance for treating the patient.​

2.​A patient in rural Iowa visits his primary care physician for management of diabetes. Three non-mydriatic (patient's eyes are not​ dilated) photographs are taken of the back of each eye, and forwarded electronically along with a Structured Display to an oph-​ thalmologist in Iowa City. The ophthalmologist reads the photos in an agreed upon layout so there is no mistake about what​ portion of which eye is being viewed. The ophthalmologist is able to tell the primary care physician that his patient does not need​ to come to Iowa City for face to face ophthalmologic care, but that there is a particular view of the left eye that should be photo-​ graphed again in 6 months.​

- Standard -​

Page 380​

DICOM PS3.17 2020a - Explanatory Information​

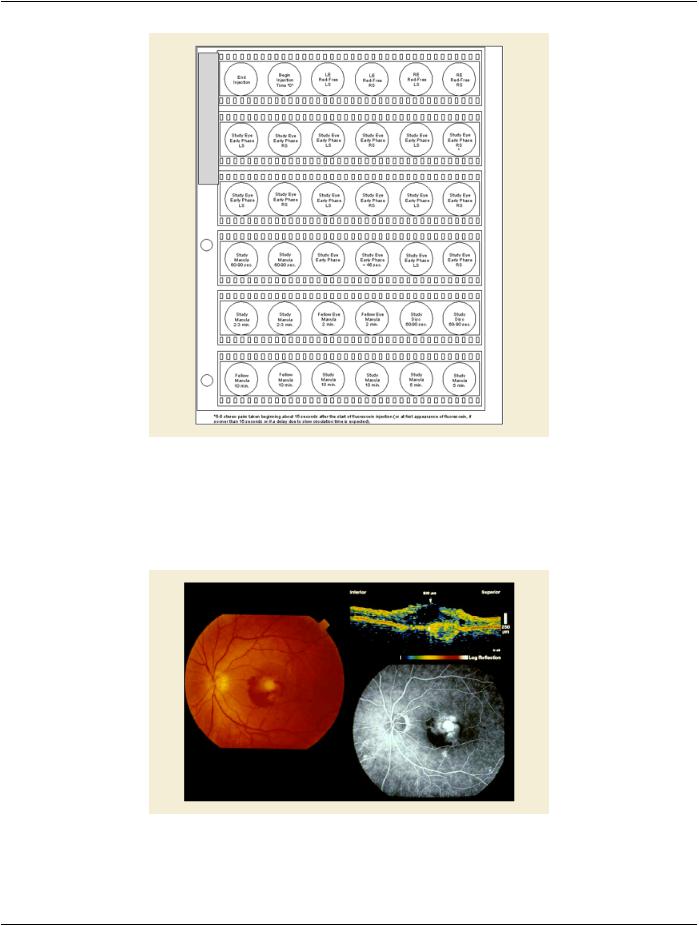

Figure OO-3. Ophthalmic Retinal Study Structured Display​

3.​A patient in rural Minnesota experiences sudden vision loss and goes to a general ophthalmologist, who acquires OCT images​ and forwards them electronically along with a Structured Display to a retina specialist six travel hours away. The retina specialist​ is able to view the images in the standard layout that he is comfortable with, and to confirm that the patient has a choroidal​ neovascular membrane. He determines that is would be worthwhile for the patient to travel for treatment.​

Figure OO-4. OCT Retinal Study with Cross Section and Navigation Structured Display​

- Standard -​
