The Future of Hydrogen Chapter 4: Present and potential industrial uses of hydrogen

Current

2030

Long-term

Low-carbon hydrogen supply

Sector

hydrogen

hydrogen role

demand

Opportunities

Challenges

demand

7% of primary

steel

All options

production

Retrofit DRI

Steel demand

require higher

takes place via

facilities with

keeps rising,

production costs

the direct

CCUS. Around

A doubling

even after

and/or changes

reduction of

30% of natural

under existing

accounting for

to processes.

iron (DRI)

gas can be

policies as the

increased

Direct

route, which

substituted for

DRI route is

materials

applications of

Iron and

requires

electrolytic

used more,

efficiency. 100%

CCUS are usually

steel

hydrogen. The

hydrogen in the

relative to the

hydrogen-based

projected to have

production

blast furnace

current DRI

currently

production could

lower costs,

route

route. Fully

dominant

dramatically

although these

produces by-

convert steel

blast furnace

increase demand

are highly

product

plants to utilise

route.

for low-carbon

uncertain. Long-

hydrogen as a

hydrogen as the

hydrogen in the

term competition

mixture of

key reducing

long term.

from direct

gases, which

agent.

electrification.

are often used

on site.

Virtually no

Hydrogen from

Hydrogen

9% increase

any source could

expected to

dedicated

in high-

replace natural

compete poorly

hydrogen

Heat demand

temperature

gas, e.g. in

with biomass and

High-

production for

likely to rise

heat demand

industrial

direct CCUS in

temperature

generating

further, providing

under existing

clusters or near

general, but may

heat

heat. Some

an opportunity

policies. No

hydrogen

prove

(excluding

limited use of

for hydrogen if it

additional

pipelines. Blends

competitive with

chemicals

hydrogen-

can compete on

hydrogen use

with natural gas

direct

and iron and

containing off-

cost in the

without

are more

electrification.

steel)

gases from the

prevailing policy

significant

straightforward

Full fuel switches,

iron and steel

environment.

policy

but less

or CCUS, tend to

and chemical

support.

environmentally

entail significant

sectors.

beneficial.

investment.

Hydrogen in oil refining

Oil refining – turning crude oil into various end-user products such as transport fuels and petrochemical feedstock – is one of the largest users of hydrogen today. Some 38 MtH2/yr, or 33% of the total global demand for hydrogen (in both pure and mixed forms), is consumed by refineries as feedstock, reagent and energy source. Around two-thirds of this hydrogen is produced in dedicated facilities at refineries or acquired from merchant suppliers (together called “on-purpose” supply). Hydrogen use is responsible for around 20% of total refinery emissions, and produces around 230 MtCO2/yr. Refineries’ existing large-scale demand for hydrogen is set to grow as regulations for sulphur content of oil products tighten. This provides a potential early market for hydrogen from cleaner pathways, which could lower the emissions intensity of transport fuels.

PAGE | 91

The Future of Hydrogen

Chapter 4: Present and potential industrial uses of hydrogen

How does the refining sector use hydrogen today?

Hydrotreatment and hydrocracking are the main hydrogen-consuming processes in the refinery. Hydrotreatment is used to remove impurities, especially sulphur (it is often simply referred to as desulphurisation)23 and accounts for a large share of refinery hydrogen use globally. Today refineries remove around 70% of naturally incurring sulphur from crude oils. With concerns about air quality increasing, there is growing regulatory pressure to further lower the sulphur content in final products. By 2020 40% less sulphur will be allowed in refined products than in 2005 despite the continued growth in demand (Figure 33).

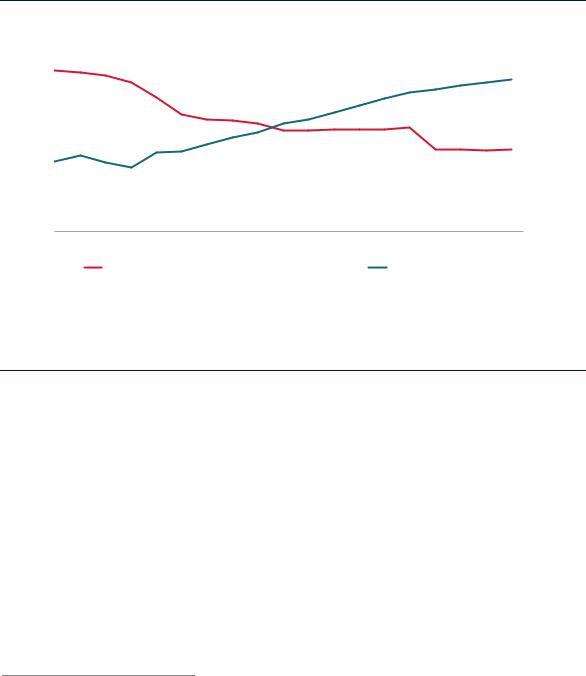

Figure 33.		Allowed sulphur content in oil products
per year	25										110
	25										110
	15									90
Milliontonnes	15									90
	20										100
	10										80


	5									70
	2005	2007	2009	2011	2013	2015	2017	2019	2021	2023
		Allowed sulphur content in refined products						Oil demand (right axis)

Note: mb/d = million barrels per day.

Source: IEA (2018a), World Energy Outlook 2018.

mb/d

The quantity of allowed sulphur in refined products continues to decrease, while oil demand continues to increase.

Hydrocracking is a process that uses hydrogen to upgrade heavy residual oils into higher-value oil products. Demand for light and middle distillate products is growing and demand for heavy residual oil is declining, leading to an increase in the use of hydrocracking. In addition to hydrotreatment and hydrocracking, some hydrogen that is used or produced by refineries cannot be economically recovered and is burned as fuel as part of a mixture of waste gases.

The United States, the People’s Republic of China (“China”) and Europe are the largest consumers of hydrogen in refineries. The three regions represent around half of total refinery hydrogen consumption, reflecting the volume of crude oil they process and the stringency of their product quality standards.

Hydrogen is also used for upgrading oil sands and hydrotreating biofuels. For oil sands, the amount of hydrogen needed to remove sulphur from the raw bitumen varies considerably depending on the upgrading technology and the quality of the synthetic crude oil produced.

23 It also treats other chemical components – nitrogenand oxygen-containing compounds or metals – that are unfavourable to fuel quality and/or refining equipment, such as catalysts.

PAGE | 92

The Future of Hydrogen

Chapter 4: Present and potential industrial uses of hydrogen

Overall around 10 kg of hydrogen is used per tonne of bitumen processed.24 The resulting synthetic crude oil still needs to be refined at a refinery, using hydrogen. For biofuels, hydrotreatment removes oxygen and improves the fuel quality of vegetable oils and animal fats processed into diesel substitutes. This process requires around 38 kg of hydrogen per tonne of biodiesel produced, but no further hydrogen is needed in subsequent refining steps.

Sources and costs of hydrogen for refinery use

Globally, refinery hydrogen demand is met through the use of on-site by-products, dedicated on-site production, or merchant supply (Figure 34).

On-site by-product hydrogen comes largely from catalytic naphtha reforming, a process that produces high-octane gasoline blending components and generates hydrogen at the same time. Refineries with integrated petrochemical operations also derive by-product hydrogen from steam cracking. However, on-site by-product hydrogen is unable to fully cover refinery hydrogen demand, except in small refineries running on very low sulphur crude oils and with relatively low yields of road transport fuels. On average, on-site by-product hydrogen meets one-third of refinery hydrogen demand. The gap needs to be met, either by dedicated on-site production (about 40% globally) or procurement from merchant suppliers (around a quarter).

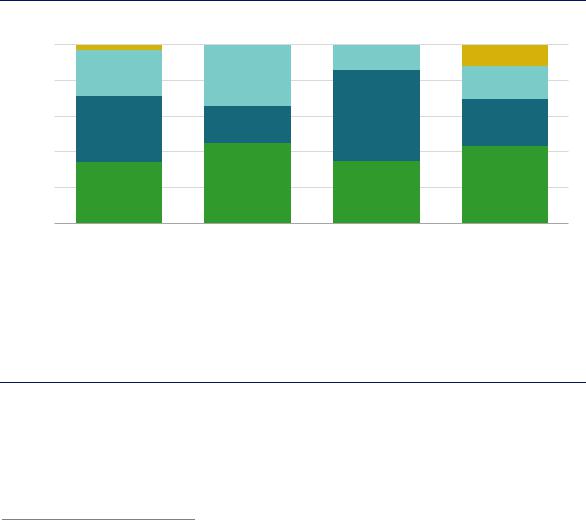

Figure 34. Sources of hydrogen supply for refineries in selected regions, 2018

100%

80%

60%

40%

20%

0%


World		United States		Europe	China
	Refinery by-product		On-site SMR	Merchant supply	On-site coal

Notes: SMR = steam methane reformer. For China, refinery by-product also includes hydrogen produced from refinery-integrated crackers.

Refinery hydrogen by-product covers only a third of hydrogen requirements, with the gap filled by dedicated on-site production and merchant supply.

Most dedicated on-site production uses natural gas feedstock, but light fractions of oil distillation and heavier feedstocks – petroleum coke, vacuum residues and coal – are also used in some regions. Use of heavier feedstocks is mostly restricted to India and China, where

24 Around 0.6 MtH2/yr is used to process 1 mb/d of bitumen.

PAGE | 93

The Future of Hydrogen

Chapter 4: Present and potential industrial uses of hydrogen

gas needs to be imported. Coal gasification is routinely included in new refinery setups in China as a main or auxiliary hydrogen production unit.

Merchant supply of hydrogen is an option in densely industrialised areas where developed hydrogen pipeline infrastructure exists, such as the US Gulf Coast and Europe’s Amsterdam- Rotterdam-Antwerp hub. As with dedicated on-site production, merchant hydrogen is mostly produced from natural gas, although a certain amount also comes from chemical processes, where it is a by-product of operations such as steam cracking and chlorine production. In regions such as the US Gulf Coast, merchant hydrogen can meet over a third of total hydrogen demand.

Hydrogen production costs vary widely, largely reflecting differences in natural gas prices. US production costs are among the world’s lowest, while costs are substantially higher in Europe and Asia. In the United States, hydrogen costs amount to around USD 1.1/kgH2 or USD 0.7 per barrel of oil refined. This may seem a relatively small cost component for refineries overall, for example in comparison with crude costs, but even a small cost advantage in hydrogen costs can have a notable impact on refining margins, which are generally thin in what is a very competitive market (Figure 35).

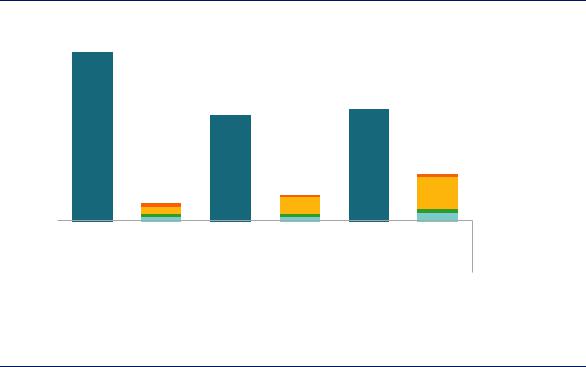

Figure 35. Hydrogen production costs compared to refining margins, 2018

barrelper	8	CO2price
	8
	6

USD		Fuel costs (gas)




	4	OPEX


		CAPEX

	2


		Average refining




		margin (2010-18)

0	Refining	Hydrogen	Refining	Hydrogen	Refining	Hydrogen
0

	margin	cost	margin	cost	margin	cost
	United States		European Union			Asia

Note: Based on production costs via natural-gas based SMR. More information on the assumptions is available at www.iea.org/hydrogen2019.

In many regions, hydrogen costs are a significant drain on refinery profits.

Potential for future hydrogen demand in oil refining

In recent decades, refinery hydrogen demand has grown substantially as a result of growing refining activity and rising requirements for hydrotreating and hydrocracking. This trend is set to continue as fuel specifications globally further reduce acceptable levels of sulphur content. Many countries, including China, have already reduced sulphur content requirements in road transport fuels such as gasoline or diesel to under 0.0015%, and others may introduce similar standards. The International Maritime Organization has also introduced new bunker fuel regulations that limit the sulphur content of marine fuels to no more than 0.5% from 2020 (IEA, 2019a), and this is likely to lead to a significant increase in hydrogen requirements for marine

PAGE | 94

The Future of Hydrogen

Chapter 4: Present and potential industrial uses of hydrogen

fuel production. However, hydrogen demand is also a function of inherent sulphur content in crude oils. The average quality of crude oil supply has been getting lighter and sweeter in recent years, due primarily to surging US tight oil output, and this is likely to moderate the need for hydrogen to some degree. Under current trends, overall hydrogen demand in refineries is set to grow by 7% to 41 MtH2/yr in 2030.

Beyond 2030 current trends and policies suggest the pace of hydrogen demand growth to slow down, as the scope to tighten product quality standards decreases and as oil demand for transport fuels is affected by a combination of efficiency improvements and electrification. Refiners are also likely to increase the efficiency of hydrogen recovery from waste refinery gases, lowering requirements for additional hydrogen production. Refinery hydrogen demand would decline in a scenario compatible with the objectives of the Paris Agreement, with the impact of declining oil demand more than offsetting that of higher hydrogen intensity.

Irrespective of the future trajectory of global energy demand, one common aspect is the dominant share of existing refineries in projected hydrogen demand. There is already sufficient refining capacity globally to fulfil the expected need for oil products. Together with the long lifetime of refineries, this limits the scope for substantial addition of new refining capacity. As a result, some 80–90% of cumulative on-purpose hydrogen supply (including both dedicated onsite production and merchant procurement) between today and 2030 would come from existing refineries in both scenarios (Figure 36).

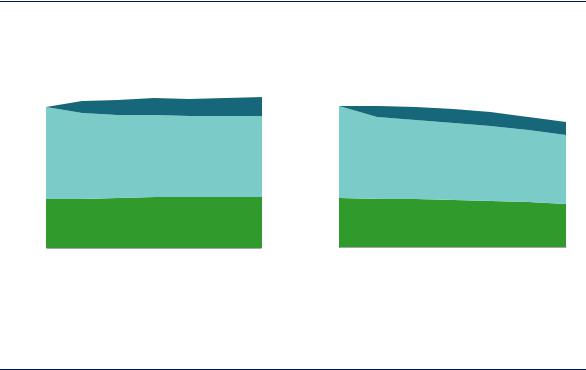

Figure 36. Future hydrogen demand in oil refining under two different pathways

			In line with current trends						In line with the Paris Agreement
/yr	50						/yr	50
	50							50

2							2
MtH	40						MtH	40
	40							40
	30							30
	30							30
	20							20
	20							20
	10							10
	10							10
	0							0
	2018		2022	2026		2030		2018	2022		2026	2030
		Refinery by-product			On-purpose supply (existing refineries)					On-purpose supply (new refineries)

Note: On-purpose supply refers to both dedicated on-site production and merchant procurement.

Future hydrogen demand in the refining sector comes mostly from today’s existing capacity.

Meeting future hydrogen demand in oil refining while reducing emissions

Hydrogen production – unless supplied as a by-product of refining operations – currently results in considerable CO2 emissions. Globally the production of hydrogen for use in refineries contributes some 230 MtCO2/yr emissions, which is around 20% of total refinery emissions.

PAGE | 95
