Page 326​

DICOM PS3.16 2020a - Content Mapping Resource​

CAD Operating Point​

Additional information to use when Rendering Intent is "Presentation Optional". A CAD Operating Point​



of zero is not sent, and is encoded as a Rendering Intent of "Presentation Required". See Section O.2​



“Structured Reporting Storage SOP Class SCU and SCP Behavior” in PS3.4 and Section E.4 “CAD​



Operating Point” in PS3.17.​

Certainty of Finding​

The certainty of the CAD device that the finding detected and classified by the Single Image Finding​



CODE specified is in fact that type of finding.​

TID 4105 Chest CAD Descriptors​

This Template provides qualitative detail for a Single Image Finding or Composite Feature. It is applied to Chest CAD Composite​ Feature (TID 4102 “Chest CAD Composite Feature”) and Chest CAD Single Image Finding (TID 4104 “Chest CAD Single Image​ Finding”).​

Type:​

Non-Extensible​

Order:​

Significant​

Root:​

No​

Table TID 4105. Chest CAD Descriptors​

NL​ Rel with​

VT​

Concept Name​

VM​

Req​ Condition​ Value Set Constraint​

Parent​







Type​



1​

CODE​

EV (112025, DCM, "Size​

1​

U​

DCID6118“SizeDescriptor”​





Descriptor")​







2​

CODE​

EV (112026, DCM, "Width​

1​

U​

DCID 6107 “Width​





Descriptor")​





Descriptor”​

3​

CODE​

EV (112015, DCM, "Border​

1​

U​

DCID 6119 “Chest Border​





shape")​





Shape”​

4​

CODE​

EV (112007, DCM, "Border​

1​

U​

DCID 6120 “Chest Border​





definition")​





Definition”​

5​

CODE​

EV(112014,DCM,"Orientation​

1​

U​

DCID 6121 “Chest​





Descriptor")​





Orientation Descriptor”​

6​

CODE​

EV (112009, DCM, "Type of​

1-n​

U​

DCID 6122 “Chest Content​





Content")​





Descriptor”​

7​

CODE​

EV (112027, DCM, "Opacity​

1​

U​

DCID 6123 “Chest Opacity​





Descriptor")​





Descriptor”​

8​

CODE​

EV(112013,DCM,"Locationin​

1​

U​

DCID 6124 “Location in​





Chest")​





Chest”​

9​

CODE​

EV (272741003, SCT,​

1​

U​

DCID 244 “Laterality”​





"Laterality")​







10​

CODE​

EV(112006,DCM,"Distribution​ 1-n​

U​

DCID 6128 “Chest​





Descriptor")​





Distribution Descriptor”​

11​

CODE​

EV (112028, DCM, "Abnormal​

1​

U​

DCID 6108 “Chest Anatomic​





Distribution of Anatomic​





Structure Abnormal​





Structure")​





Distribution”​

12​

CODE​

EV (112008, DCM, "Site​

1-n​

U​

DCID 6129 “Chest Site​





involvement")​





Involvement”​

13​

CODE​

EV (246112005, SCT,​

1​

U​

DCID 6130 “Severity​





"Severity")​





Descriptor”​

14​

CODE​

EV (112010, DCM, "Texture​

1​

U​

DCID 6131 “Chest Texture​





Descriptor")​





Descriptor”​

15​

CODE​

EV (112030, DCM,​

1​

U​

DCID 6132 “Chest​





"Calcification Descriptor")​





Calcification Descriptor”​

16​

NUM​

DCID 6142 “Calculated Value”​ 1-n​

U​



- Standard -​









DICOM PS3.16 2020a - Content Mapping Resource​

Page 327​



NL​ Rel with​

VT​

Concept Name​

VM​

Req​ Condition​ Value Set Constraint​





Parent​







Type​



17​

>​

HAS​

CODE​

EV(121401,DCM,"Derivation")​

1​

M​

DCID 6140 “Calculation​





CONCEPT​







Methods”​





MOD​











18​

>​

INFERRED​NUM​

EV (112032, DCM, "Threshold​

1​

U​

UNITS = EV ([hnsf'U],​





FROM​



Attenuation Coefficient")​





UCUM, "Hounsfield unit")​

19​

>​

INFERRED​TEXT​

EV(112034,DCM,"Calculation​

1​

U​







FROM​



Description")​







20​





NUM​

DCID 6141 “Attenuation​

1-n​

U​

UNITS = EV ([hnsf'U],​









Coefficient Measurements”​





UCUM, "Hounsfield unit")​

TID 4106 Response Evaluation​

This Template provides a means to report response evaluation to cancer treatment, based on a method such as RECIST or WHO.​

Type:​

Non-Extensible​

Order:​

Significant​

Root:​

No​

Table TID 4106. Response Evaluation​



NL​ RelwithParent​ VT​

Concept Name​

VM​

Req​ Condition​Value Set Constraint​













Type​



1​





CONTAINER​EV(112020,DCM,"Response​

1​

M​











Evaluation")​







2​

>​

HAS OBS​

CODE​

EV(112021,DCM,"Response​

1​

M​

DT (112022, DCM,​





CONTEXT​



Evaluation Method")​





"RECIST") or​















DT (112029, DCM,​















"WHO")​

3​

>​

CONTAINS​

CODE​

EV (112048, DCM, "Current​

1​

U​

DCID 6143 “Lesion​









Response")​





Response”​

4​

>​

CONTAINS​

CODE​

EV (112049, DCM, "Best​

1​

U​

DCID 6143 “Lesion​









Overall Response")​





Response”​

5​

>​

CONTAINS​

NUM​

EV (112051, DCM,​

1​

U​

UNITS not specified​









"Measurement of Response")​







TID 4107 Chest CAD Geometry​

All geometry Template invocations require specification of either the location of the center of the object, the outline, or both. Geometry​ isapropertyofsingleimagefindings(seeTID4104“ChestCADSingleImageFinding”)andcompositefeatures(seeTID4103“Chest​ CAD Composite Feature Body”).​

Type:​

Non-Extensible​

Order:​

Significant​

Root:​

No​



Table TID 4107. Chest CAD Geometry​



NL​ Rel with Parent​ VT​

ConceptName​ VM​ Req Type​ Condition​

Value Set Constraint​

1​

SCOORD​

EV (111010,​ 1​

MC​

At least one of rows​GRAPHIC TYPE =​





DCM,"Center")​



1, 4 shall be present.​{POINT}​

2​

>​ SELECTED​ IMAGE​

1​

MC​

XOR row 3​





FROM​









- Standard -​

Page 328​



DICOM PS3.16 2020a - Content Mapping Resource​





NL​ Rel with Parent​ VT​

ConceptName​ VM​ Req Type​ Condition​

Value Set Constraint​

3​

>​

R-SELECTED​

IMAGE​

1​

MC​

XOR row 2​

Shall reference an IMAGE​





FROM​









Content Item in the​















(111028, DCM, "Image​















Library")​

4​





SCOORD​

EV (111041,​ 1​

MC​

At least one of rows​









DCM,"Outline")​



1, 4 shall be present.​

5​

>​

SELECTED​

IMAGE​

1​

MC​

XOR row 6​

Shall reference the same​





FROM​









Content Item as row 2​

6​

>​

R-SELECTED​

IMAGE​

1​

MC​

XOR row 5​

Shall reference the same​





FROM​









Content Item as row 3​

TID 4108 Tracking Identifier​

This Template provides a means to identify an object for longitudinal tracking, potentially across multiple Structured Reports, over​ time.​

Type:​

Non-Extensible​

Order:​

Significant​

Root:​

No​



Table TID 4108. Tracking Identifier​



NL​Rel with​ VT​

Concept Name​

VM​Req Type​

Condition​

Value Set Constraint​



Parent​













1​

TEXT​

EV (112039, DCM,​

1​

MC​

At least one of row 1 or​A string of characters with​





"Tracking Identifier")​





2 shall be present.​

case being non-significant.​















Leading and trailing spaces​















and control characters are​















forbidden.​

2​

UIDREF​EV (112040, DCM,​

1​

MC​

At least one of row 1 or​





"Tracking Unique​





2 shall be present.​







Identifier")​











Content Item Descriptions​



Tracking Identifier​

A human readable identifier for longitudinal tracking, e.g., "Watchlist Nodule 1".​

Tracking Unique Identifier​

This is distinct from the Observation UID (0040,A171) that may be present in the Data Set for​



each Content Item, which identifies only a specific observation, not an object tracked over time,​



and each tracked object may have many observations.​

Colon CAD SR IOD Templates ​

The Templates that comprise the Colon CAD SR IOD are interconnected as in Figure A-9b. In Figure A-9b, '···' indicates possible​ recursive application of subordinate Templates.​

- Standard -​

DICOM PS3.16 2020a - Content Mapping Resource​

Page 329​

TID 4120





TID 4015



TID 4017



TID 4019

Colon CAD





Detections



Detection



CAD Algorithm

Document Root





Performed



Performed



Identification







TID 4016



TID 4018



TID 4019







Analyses



Analysis



CAD Algorithm







Performed



Performed



Identification

TID 1204







Language of







Content Item and







Descendants







TID 4121

TID 4125



TID 4125

Colon CAD

Composite



Composite

Findings Summary

Feature



Feature

TID 4122

TID 4127

TID 4108

TID 4019

CAD Common

Single Image

Tracking Identifier

CAD Algorithm

Image Properties

Finding

Identification



Entry











TID 4014

TID 4127





Image Quality

Single Image





Finding











TID 4022

TID 4022





CAD Observation

CAD Observation





Context

Context





TID 4019

TID 4108





CAD Algorithm

Tracking





Identification

Identifier

TID 4129



TID 4126



TID 4129

Colon CAD



Composite



Colon CAD

Geometry



Feature Body



Geometry

TID 4128







TID 4128

Colon CAD

Colon CAD

Descriptors

Descriptors

TID 300, 1400,

TID 300, 1400,

1401, 1402, 1406

1401, 1402, 1406

Measurement

Measurement

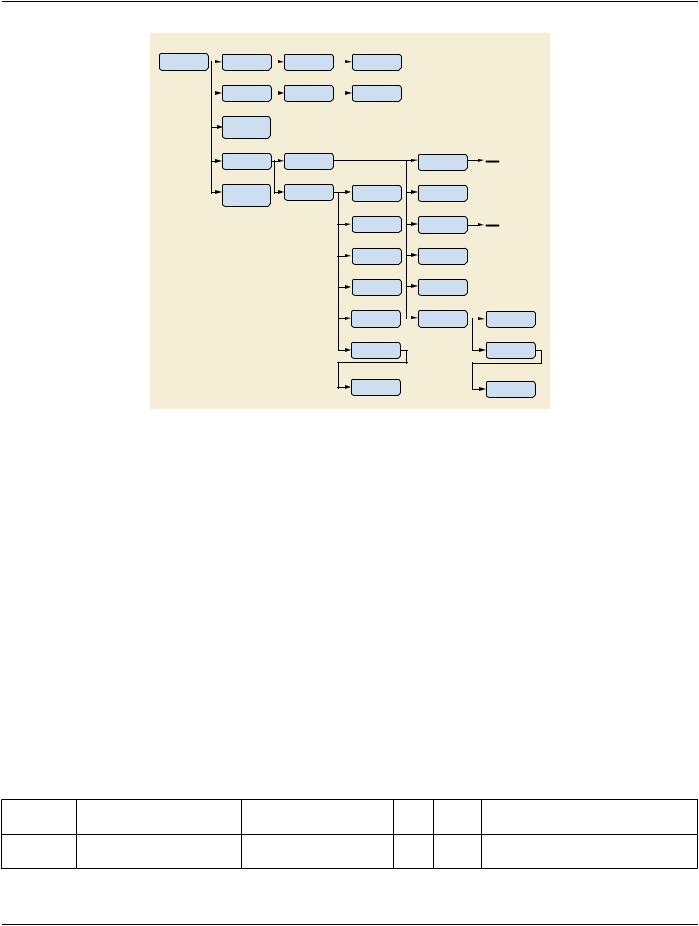

Figure A-9b. Colon CAD SR IOD Template Structure​

TID 4120 Colon CAD Document Root​

This Template forms the top of a content tree that allows a colon CAD device to describe the results of detection and analysis of colon​ evidence. This Template, together with its subordinate Templates, describes both the results for presentation to radiologists and​ partial product results for consumption by colon CAD devices in subsequent colon CAD reports.​

This Template defines a Container that contains the CAD results and summaries of the detection and analysis algorithms performed.​

The atomic CAD results of Single Image Findings and Composite Features are described in the Colon CAD Findings Summary sub-​ tree.​

The Summary of Detections and Summary of Analyses sub-trees gather lists of algorithms attempted, grouped by success/failure​ status. Algorithms not attempted are not mentioned in these sub-trees. This information forms the basis for understanding why a​ colon CAD report may produce no (or fewer than anticipated) results. Colon CAD results are constructed bottom-up, starting from​ Single Image Findings (see TID 4127 “Colon CAD Single Image Finding”), associated as Composite Features (see TID 4125 “Colon​ CAD Composite Feature”).​

See Figure SS.1-1 “Top Levels of Colon CAD SR Content Tree” in PS3.17.​

Type:​

Non-Extensible​

Order:​

Significant​

Root:​

Yes​

Table TID 4120. Colon CAD Document Root​



NL​RelwithParent​ VT​

Concept Name​

VM​

Req​ Condition​

Value Set​









Type​

Constraint​

1​

CONTAINER​EV (112220, DCM, "Colon​

1​

M​

Root node​





CAD Report")​







- Standard -​

Page 330​



DICOM PS3.16 2020a - Content Mapping Resource​





NL​RelwithParent​ VT​

Concept Name​

VM​

Req​

Condition​

Value Set​













Type​



Constraint​

2​

>​

HASCONCEPT​INCLUDE​

DTID 1204 “Language of​

1​

M​









MOD​



Content Item and​

















Descendants”​









3​

>​

CONTAINS​

INCLUDE​

DTID 4122 “CAD Common​ 1-n​

M​













Image Properties Entry”​









4​

>​

CONTAINS​

INCLUDE​

DTID 4121 “Colon CAD​

1​

M​













Findings Summary”​









5​

>​

CONTAINS​

CODE​

EV (111064, DCM,​

1​

M​



DCID 6042 “Status​









"Summary of Detections")​







of Results”​

6​

>>​

INFERRED​

INCLUDE​

DTID4015“CADDetections​ 1​

MC​ Shall be present​ $DetectionCode =​





FROM​



Performed”​





unlessthevalueof​DCID 6201 “Colon​















row 5 is (111225,​Finding or Feature”​















DCM, "Not​

















Attempted")​



7​

>​

CONTAINS​

CODE​

EV (111065, DCM,​

1​

M​



DCID 6042 “Status​









"Summary of Analyses")​







of Results”​

8​

>>​

INFERRED​

INCLUDE​

DTID 4016 “CAD Analyses​

1​

MC​ Shall be present​ $AnalysisCode =​





FROM​



Performed”​





unlessthevalueof​DCID6137“Typesof​















row 7 is (111225,​CAD Analysis”​

DCM, "Not​

Attempted")​

Content Item Descriptions​

Detections Performed​

Analyses Performed​

The "Detections Performed" and "Analyses Performed" sections of the Content Tree​ (TID 4120 “Colon CAD Document Root”, rows 6 and 8) together shall reference all​ ImageSOPInstancesincludedintheCurrentRequestedProcedureEvidenceSequence​ (0040,A375) attribute of the SR Document General module.​

TID 4121 Colon CAD Findings Summary​

ThecontentsofthisTemplatedescribethefindingsandaggregatefeaturesthatthecolonCADdevicedetectedforthecolonevidence​ presented. This Template forms the colon CAD results sub-tree of the Colon CAD Document Root (TID 4120 “Colon CAD Document​ Root”). The data from which the details are inferred are expressed in the Composite Features (see TID 4125 “Colon CAD Composite​ Feature”) and/or Single Image Findings (see TID 4127 “Colon CAD Single Image Finding”), of which there may be several.​

The sub-tree headed by this Template is illustrated in Figure F.1-2 “Example of CAD Processing and Findings Summary Sub-Tree​ of Chest CAD SR Content Tree” in PS3.17.​

Type:​

Non-Extensible​

Order:​

Significant​

Root:​

No​

Table TID 4121. Colon CAD Findings Summary​



NL​ Rel with Parent​ VT​

Concept Name​

VM​

Req​ Condition​Value Set Constraint​













Type​



1​





CODE​

EV (111017, DCM, "CAD​

1​

M​

DCID 6047 “CAD​









Processing and Findings​





Processing and​









Summary")​





Findings Summary”​

2​

>​

HAS​

CODE​

EV (112222, DCM, "Colon​

1​

U​

DCID 6200 “Colon​





PROPERTIES​



Overall Assessment")​





Overall Assessment”​

3​

>​

INFERRED​

INCLUDE​ DTID 4125 “Colon CAD​

1-n​

U​







FROM​



Composite Feature”​







- Standard -​
