0.0033s

ECG Lead 1 sampling at 300Hz

ECG Lead 2 sampling at 300Hz

time

Nominal start time of

ECG Acquisition Time

0.01s

Start ECG sampling

1s

Start time of Image Acquisition

0.033s

Multi-frame Image Acquisition, at 30fps

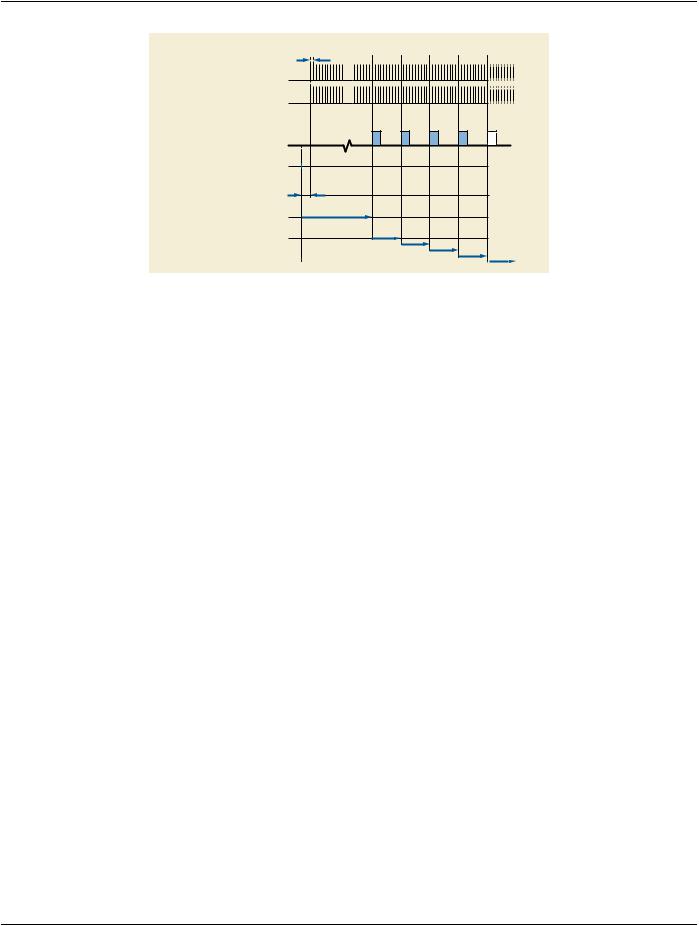

Figure FFF.2.1-2. Example of ECG Recording at Acquisition Modality​

FFF.2.1.1.4.1 Enhanced XA Image Without Cardiac Synchronization​

In this example, the Enhanced XA image does not contain information of the cardiac cycle phases.​

The Attributes that define the two different SOP Instances (Enhanced XA and General ECG) of this example are described in Fig-​ ure FFF.2.1-3.​

Enhanced XA SOP Instance​

- Standard -​

Figure FFF.2.1-3. Attributes of ECG Recording at Acquisition Modality​

- Standard -​

FFF.2.1.1.4.2 Enhanced XA Image With Cardiac Synchronization​

In this example, the heart rate is 75 beats per minute. As the image is acquired during a period of four seconds, it contains five​ heartbeats.​

The ECG signal is analyzed to determine the R-peaks and to relate them to the angiographic frames. Thus the Enhanced XA image​ contains information of this relationship between the ECG signal and the frames.​

Image time

Nominal start time of

ECG Acquisition Time

Frame “i” Reference Time

10ms

Start ECG sampling

1s

Start time of Image Acquisition

Multi-frame Image Acquisition, at 30fps

33ms

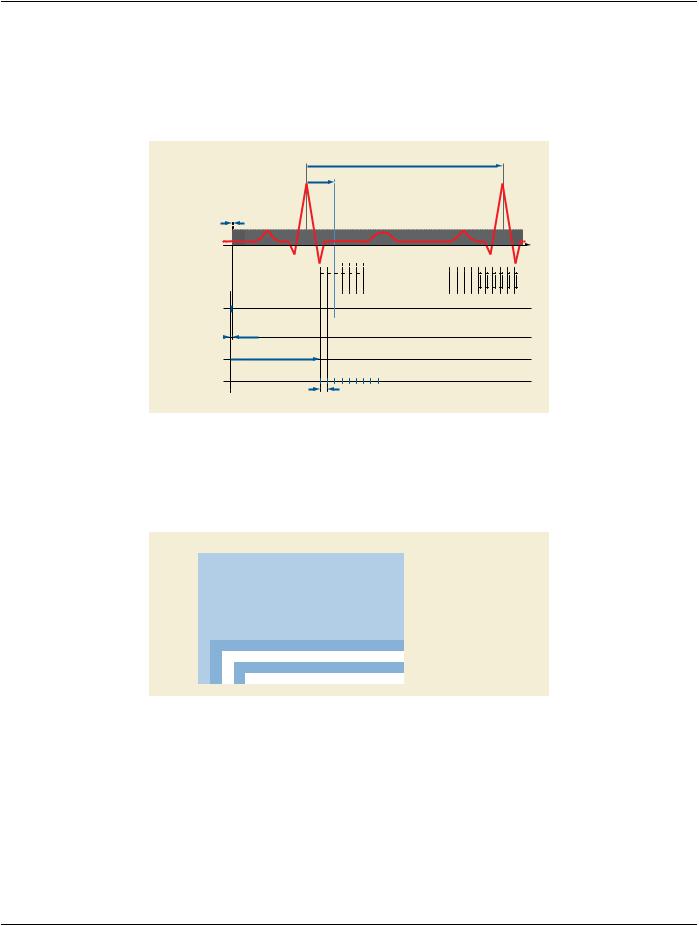

Figure FFF.2.1-4. Example of ECG information in the Enhanced XA image​

The Attributes that define the two different SOP Instances (Enhanced XA and General ECG) of this example are described in the​ figures of the previous example, in addition to the Attributes described in Figure FFF.2.1-5.​

Enhanced XA SOP Instance​

Figure FFF.2.1-5. Attributes of Cardiac Synchronization in ECG Recording at Acquisition Modality​

FFF.2.1.2 Multi-modality Waveform Synchronization​

TheseapplicationcasesarerelatedtotheresultsofanX-RayacquisitionandsimultaneousECGdatarecordingondifferentequipment.​ The concepts of synchronized time and triggers are involved.​

The two modalities may share references on the various entity levels below the Study, i.e., Series and Image UID references using​ non-standard mechanisms. Nothing in the workflow requires such references. For more details about UID referencing, refer to the​ previous application case "ECG Recording at Acquisition Modality" (see Section FFF.2.1.1).​

- Standard -​

If both modalities share a common data store, a dedicated post-processing station can be used for combined display of waveform​ and image information, and/or combined functional analysis of signals and pixel data to time relate the cardiac cycle phases to the​ angiographic frames. The storage of the waveform data and images to PACS or media will preserve the combined functional capab-​ ilities.​

In these application cases, this post-processing activity is outside the scope of the acquisition modalities. For more details about the​ relationship between cardiac cycle and angiographic frames, refer to the previous application case "ECG Recording at Acquisition​ Modality" (see Section FFF.2.1.1).​

FFF.2.1.2.1 Both Modalities Synchronized Via NTP​

FFF.2.1.2.1.1 User Scenario​

Image runs are taken by the image acquisition modality. Waveforms are recorded by the waveform acquisition modality. Both modal-​ ities are time synchronized via NTP. The time server may be one of the modalities or an external server. The resulting objects will​ include the time synchronization concept.​

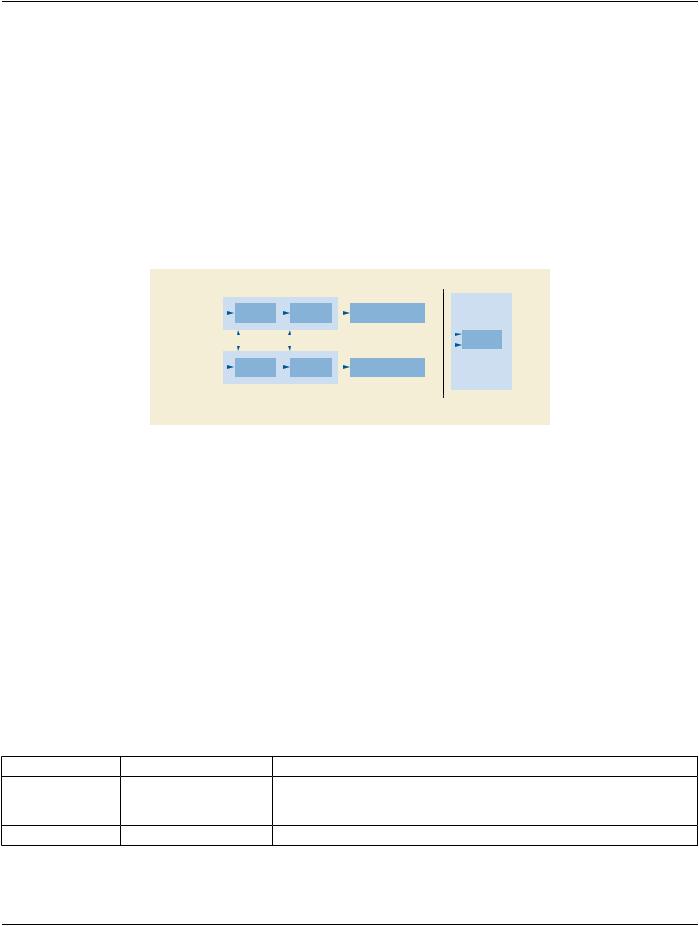

Figure FFF.2.1-6. Scenario of Multi-modality Waveform Synchronization​

FFF.2.1.2.1.2 Encoding Outline​

Dedicated Waveform IODs exist to store captured waveforms. In this case, General ECG IOD is used to store the waveform data.​

Depending on the degree of coupling of the modalities involved, the usage of references on the various entity levels can vary. While​ there is a standard DICOM service to share Study Instance UID between modalities (i.e., Worklist), there are no standard DICOM​ services for sharing references below the Study level, so any UID reference to the Series and Image levels is shared in a proprietary​ manner.​

With the Synchronization Module information, the method to implement the common time-base can be documented.​

The Enhanced XA IOD provides a detailed "per frame" timing to encode timing information related to each frame.​

FFF.2.1.2.1.3 Encoding Details​

This section provides detailed recommendations of the key Attributes to address this particular scenario.​

FFF.2.1.2.1.3.1 Enhanced XA Image​

Table FFF.2.1-12. Enhanced X-Ray Angiographic Image IOD Modules​

- Standard -​

FFF.2.1.2.1.3.1.2 Enhanced XA/XRF Image Module Recommendations​

This module includes the acquisition date and time of the image, which is in the same time basis as the acquisition date and time of​ the ECG in this scenario.​

FFF.2.1.2.1.3.1.3 Frame Content Macro Recommendations​

In this scenario the timing information is important to correlate each frame to any externally recorded waveform.​

Table FFF.2.1-15. Frame Content Macro Recommendations​

FFF.2.1.2.1.3.2 Waveform Object​

The ECG recording system will take care of filling in the waveform-specific contents in the General ECG SOP Instance. This section​ will address only the specifics for Attributes related to synchronization.​

Table FFF.2.1-16. Waveform IOD Modules​
