Page 656​

DICOM PS3.17 2020a - Explanatory Information​



Attribute Name​



Tag​

N-GET​

N-GET Response (SCP)​







Request​







(SCU)​



>>>>>Item #4 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

45​

>>>>>Luminance Value​



(0028,701F)​

-​

7.11​

>>>>>Item Delimiter of Item #4 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #5 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

60​

>>>>>Luminance Value​



(0028,701F)​

-​

11.12​

>>>>>Item Delimiter of Item #5 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #6 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

75​

>>>>>Luminance Value​



(0028,701F)​

-​

16.75​

>>>>>Item Delimiter of Item #6 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #7 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

90​

>>>>>Luminance Value​



(0028,701F)​

-​

24.07​

>>>>>Item Delimiter of Item #7 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #8 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

105​

>>>>>Luminance Value​



(0028,701F)​

-​

33.67​

>>>>>Item Delimiter of Item #8 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #9 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

120​

>>>>>Luminance Value​



(0028,701F)​

-​

46.24​

>>>>>Item Delimiter of Item #9 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #10 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

135​

>>>>>Luminance Value​



(0028,701F)​

-​

63.12​

>>>>>Item Delimiter of Item #10 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #11 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

150​

>>>>>Luminance Value​



(0028,701F)​

-​

83.94​

>>>>>Item Delimiter of Item #11 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​









>>>>>Item #12 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​



(0028,7017)​

-​

160​

- Standard -​

DICOM PS3.17 2020a - Explanatory Information​

Page 657​

Attribute Name​

Tag​

N-GET​

N-GET Response (SCP)​





Request​





(SCU)​



>>>>>Luminance Value​

(0028,701F)​

-​

110.6​

>>>>>Item Delimiter of Item #12 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​







>>>>>Item #13 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​

(0028,7017)​

-​

180​

>>>>>Luminance Value​

(0028,701F)​

-​

144.9​

>>>>>Item Delimiter of Item #13 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​







>>>>>Item #14 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​

(0028,7017)​

-​

195​

>>>>>Luminance Value​

(0028,701F)​

-​

190.1​

>>>>>Item Delimiter of Item #14 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​







>>>>>Item #15 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​

(0028,7017)​

-​

210​

>>>>>Luminance Value​

(0028,701F)​

-​

246.3​

>>>>>Item Delimiter of Item #15 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​







>>>>>Item #16 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​

(0028,7017)​

-​

225​

>>>>>Luminance Value​

(0028,701F)​

-​

317.8​

>>>>>Item Delimiter of Item #16 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​







>>>>>Item #17 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​

(0028,7017)​

-​

240​

>>>>>Luminance Value​

(0028,701F)​

-​

406.4​

>>>>>Item Delimiter of Item #17 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​







>>>>>Item #18 of Luminance Result Sequence​

(FFFE,E000)​

-​



>>>>>DDL Value​

(0028,7017)​

-​

255​

>>>>>Luminance Value​

(0028,701F)​

-​

520.9​

>>>>>Item Delimiter of Item #18 of Luminance Result​

(FFFE,E00D)​

-​



Sequence​







>>>>>Sequence Delimiter of Luminance Response​

(FFFE,E0DD)​

-​



Sequence​







>>>>Reflected Ambient Light​

(2010,0160)​

-​

0.408​

>>>>Ambient Light Source​

(0028,7025)​

-​

MEASURED​

>>>>Item Delimiter of Item #1 of Luminance Result​

(0028,e00D)​

-​



Sequence​







>>>>Sequence Delimiter of Luminance Result​

(0028,e0DD)​

-​



Sequence​







>>>Item #1 Configuration QA Results Sequence​

(0028,e00D)​

-​



- Standard -​

Page 658​

DICOM PS3.17 2020a - Explanatory Information​



Attribute Name​



Tag​

N-GET​

N-GET Response (SCP)​







Request​







(SCU)​



>>>Sequence Delimiter of Configuration QA Results​

(0028,e0DD)​

-​



Sequence​









>>Item Delimiter of Item #1 of Display System QA​

(0028,e00D)​

-​



Results Sequence​









>Sequence Delimiter of Display System QA Results​

(0028,e0DD)​

-​



Sequence​









>Item Delimiter of Item #1 of QA Results Sequence​

(0028,e00D)​

-​



>Item #2 of QA Results Sequence​



(FFFE,E000)​

-​



>Display Subsystem ID​



(0028,7003)​

-​

3​

…​





-​ The SCP will return the values for​









Display Subsystem ID=3.​

>Item Delimiter of Item #2 of QA Results Sequence​

(0028,e00D)​

-​



>Sequence Delimiter of QA Results Sequence​

(0028,e0DD)​

-​



PPP.3.2 An Example of A Tablet Display​

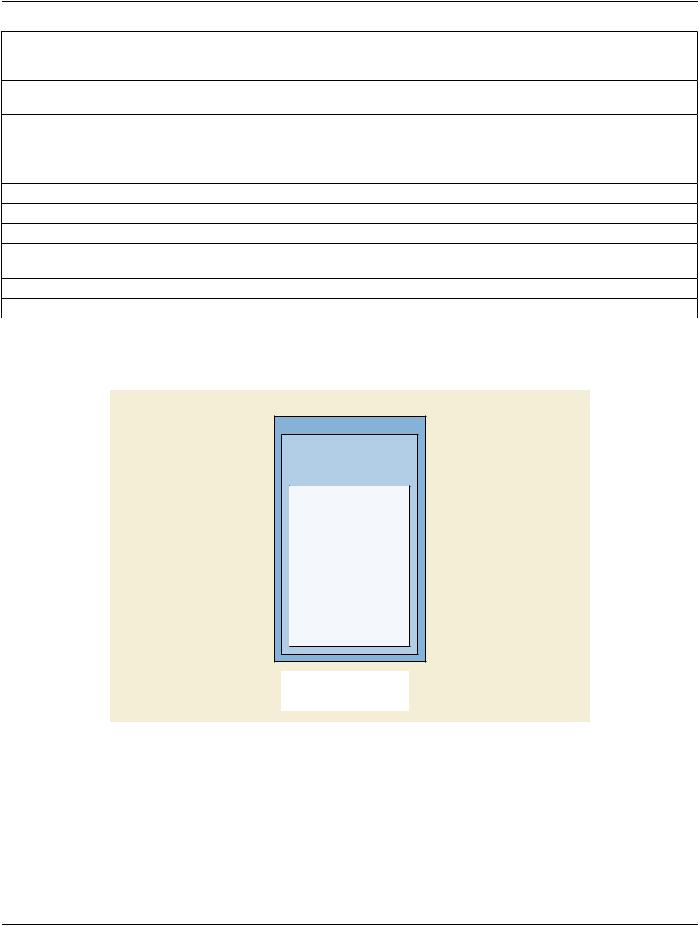

A Tablet Display System is shown in Figure PPP.3.2-1.​

Display System Y

DSS

Name = DS1

ID = 1

DD

H: 1536

V: 2048

Legend:

DSS = Display Subsystem

DD = Display Device

Figure PPP.3.2-1. A Tablet Display System​

The following is an example of an N-GET Request/Response pair for the Display System SOP Class.​

This example is encoded with Undefined Sequence Length and Undefined Item Length, so it contains Sequence Delimitation Items​ and Item Delimitation Items.​

N-GET:​

ANP​Attribute Not Present.​

- Standard -​

DICOM PS3.17 2020a - Explanatory Information​

Page 659​

VNP​Attribute Present but Value Not Present.​

-​ Not specified.​

Table PPP.3.2-1. N-GET Request/Response Example​

Attribute Name​

Tag​

N-GETRequest​N-GETResponse(SCP)​





(SCU)​

SOP Common and Workstation Modules​

Specific Character Set​

(0008,0005)​

Manufacturer​

(0008,0070)​

Institution Name​

(0008,0080)​

Institution Address​

(0008,0081)​

Device Serial Number​

(0018,1000)​

Station Name​

(0008,1010)​

Institutional Department Name​

(0008,1040)​

Manufacturer's Model Name​

(0008,1090)​

Equipment Administrator Sequence​

(0028,7000)​

>Item #1 of Equipment Administrator Sequence​

(FFFE,E000)​

>Person Name​

(0040,A123)​

>Person Identification Code Sequence​

(0040,1101)​

>>Item #1 of Person Identification Code Sequence​

(FFFE,E000)​

>>Code Value​

(0008,0110)​

>>Coding Scheme Designator​

(0008,0102)​

>>Code Meaning​

(0008,0104)​

>>Item Delimiter of Item #1 of Person Identification​

(FFFE,E00D)​

Code Sequence​



>>Sequence Delimiter of Person Identification Code​

(FFFE,E0DD)​

Sequence​



>Person's Address​

(0040,1102)​

>Person's Telephone Number​

(0040,1103)​

>Institution Name​

(0008,0080)​

>Item Delimiter of Item #1 of Equipment Administrator​

(FFFE,E00D)​

Sequence​



>Sequence Delimiter of Equipment Administrator​

(FFFE,E0DD)​

Sequence​



Display System Module​

Number of Display Subsystems​

(0028,7001)​

Display Subsystem Sequence​

(0028,7023)​

Item #1 of Display Subsystem Sequence​

(FFFE,E000)​

>Display Subsystem ID​

(0028,7003)​

>Display Subsystem Name​

(0028,7004)​

>Display Subsystem Description​

(0028,7005)​

>Display Device Type Code Sequence​

(0028,7022)​

>>Item #1 of Display Device Type Code Sequence​

(FFFE,E000)​

ANP​

\ISO 2022 IR 87​

VNP​

Tablet Corp.​

VNP​

JIRA Hospital​

VNP​

Bunkyo-ku,Tokyo,Japan​

VNP​

AA1B22CCCC3D​

VNP​

TABLET1​

VNP​

Radiology Dept.​

VNP​

MC706J/A​

VNP​



-​



-​

Yamada^Tarou= ^ ​



= ^ ​

-​



-​



-​

111111​

-​

LOCAL​

-​

Yamada^Tarou​

-​



-​



-​



-​

EXT. 1234​

-​

IT Support Div.​

-​



-​



VNP​

1​

VNP​



-​



-​

1​

-​

DS1​

-​

Embedded LCD​

-​



-​



- Standard -​

Page 660​

DICOM PS3.17 2020a - Explanatory Information​



Attribute Name​



Tag​

N-GETRequest​N-GETResponse(SCP)​







(SCU)​



>>Code Value​



(0008,0100)​

-​

109992​

>>Coding Scheme Designator​



(0008,0102)​

-​

DCM​

>>Code Meaning​



(0008,0104)​

-​

Liquid Crystal Display​

>>Item Delimiter of Item #1 of Display Device Type​

(FFFE,E00D)​

-​



Code Sequence​









>>Sequence Delimiter of Display Device Type Code​

(FFFE,E0DD)​

-​



Sequence​









>Manufacturer​



(0008,0070)​

-​

Tablet Corp.​

>Device Serial Number​



(0018,1000)​

-​

AA1B22CCCC3D​

>Manufacturer's Model Name​



(0008,1090)​

-​

MC706J/A​

>System Status​



(0028,7006)​

-​

NORMAL​

>System Status Comment​



(0028,7007)​

-​



>Display Subsystem Configuration Sequence​

(0028,700A)​

-​



>>Item #1 of Display Subsystem Configuration​

(FFFE,E000)​

-​



Sequence​









>>Configuration ID​



(0028,700B)​

-​

1​

>>Configuration Name​



(0028,700C)​

-​

DS1Config1​

>> Configuration Description​



(0028,700D)​

-​

Configuration1ofDisplay​









Subsystem ID1​

>>Referenced Target Luminance Characteristics ID​

(0028,700E)​

-​

1​

>>Item Delimiter of Item #1 of Display Subsystem​

(FFFE,E00D)​

-​



Configuration Sequence​









>>Sequence Delimiter of Display Subsystem​

(FFFE,E0DD)​

-​



Configuration Sequence​









>Current Configuration ID​



(0028,7002)​

-​

1​

>Measurement Equipment Sequence​



(0028,7012)​

-​



>Sequence Delimiter of Measurement Equipment​

(FFFE,E0DD)​

-​



Sequence​









>ItemDelimiterofItem#1ofDisplaySystemSequence​

(FFFE,E00D)​

-​



>SequenceDelimiterofDisplaySubsystemSequence​

(FFFE,E0DD)​

-​





Target Luminance Characteristics Module​



Target Luminance Characteristics Sequence​

(0028,7008)​

VNP​



>Item #1 of Target Luminance Characteristics​

(FFFE,E000)​

-​



Sequence​









>Luminance Characteristics ID​



(0028,7009)​

-​

1​

>Display Function Type​



(0028,7019)​

-​

GAMMA​

>Target Minimum Luminance​



(0028,701D)​

-​

0.75​

>Target Maximum Luminance​



(0028,701E)​

-​

300​

>Gamma Value​



(0028,701A)​

-​

2.2​

>Item Delimiter of Item #1 of Target Luminance​

(FFFE,E00D)​

-​



Characteristics Sequence​









>Sequence Delimiter of Target Luminance​

(FFFE,E0DD)​

-​



Characteristics Sequence​









QA Result Module​

- Standard -​
