SURFACE MOUNT PACKAGES

Package Outline Dimensions

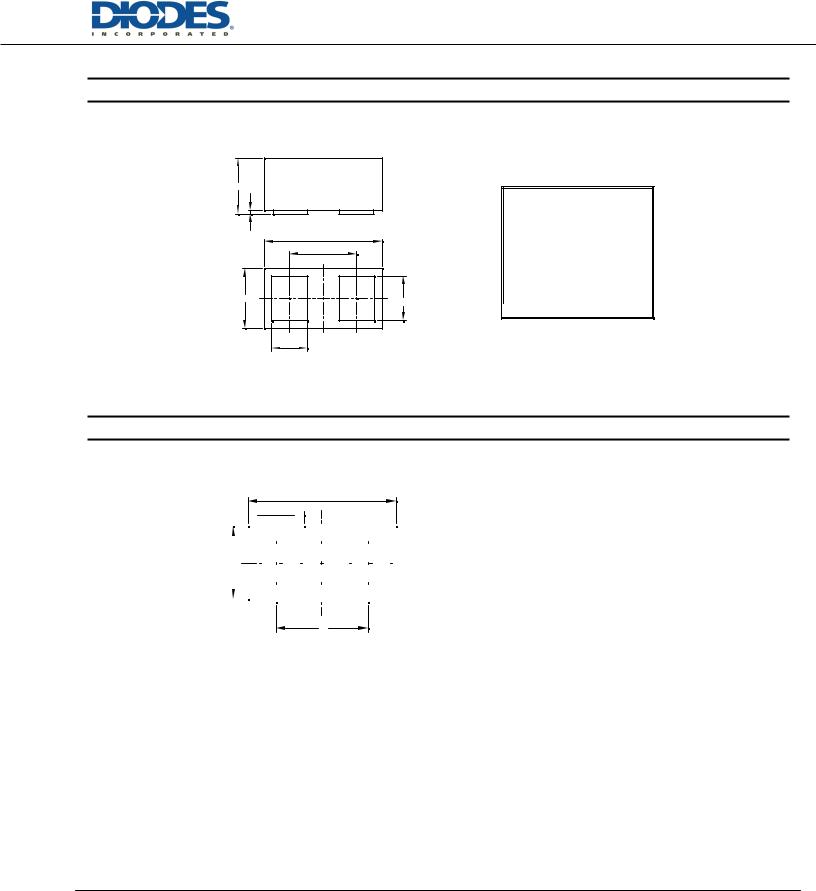

X2-DFN0603-2

A

E

























































X2-DFN0603-2



















































Seating Plane

Dim

Min

Max



Typ















D

















A

0.27

0.35



0.30





























































A1

0.00

0.03



0.02





















e

































































b

0.19

0.29



0.24























































































































































D

0.595

0.645



0.62







































































































































































E

0.295

0.345



0.32























































e

-

-



0.355









































































































L3

0.14

0.24



0.19



























































All Dimensions in mm















































b2x







































































































































































































































L32x

Suggested Pad Layout

X2-DFN0603-2



























X1



















































































































































































































































































































Dimensions

Value



















































(in mm)





















































Y













































X

0.230































































































X1

0.610



















































Y

0.300













































































































X

ALL DIMENSIONS ARE NOMINAL VALUES SHOWN IN MILLIMETERS

Note: The suggested land pattern dimensions have been provided for reference only, as actual pad layouts may vary depending on application. These numbers may be modified based on user equipment capability or fabrication criteria. A more robust pattern may be desired for wave soldering and is calculated by adding 0.2 mm to the ‘Z’ dimension. For further information, please reference document IPC-7351A, Naming Convention for Standard SMT Land Patterns, and for International grid details, please see document IEC, Publication 97.

Rev. 76

9 of 263

Package Outline Dimensions



www.diodes.com

Suggested Pad Layout





© Diodes Incorporated

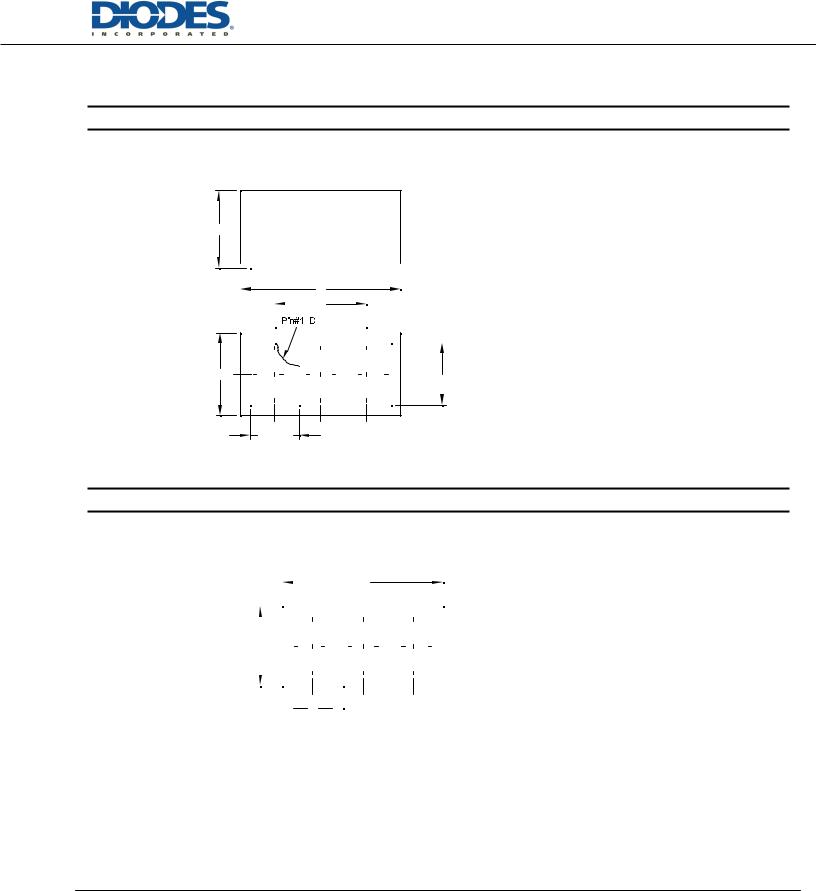

Package Outline Dimensions

X3-DFN0603-2

A



A1



D



e

E

b (2X)





L (2x)

X3-DFN0603-2

Dim

Min

Max

Typ

A

0.27

0.35

0.30

A1

0.00

0.03

0.02

b

0.19

0.29

0.24

D

0.595

0.645

0.62

E

0.295

0.345

0.32

e

-

-

0.355

L

0.14

0.24

0.19

All Dimensions in mm

Suggested Pad Layout

X3-DFN0603-2

X1

X











































Dimensions

Value





















































































(in mm)





















































































C

0.380

Y



































X

0.230

































































































X1

0.610











































Y

0.300

C

ALL DIMENSIONS ARE NOMINAL VALUES SHOWN IN MILLIMETERS

Note: The suggested land pattern dimensions have been provided for reference only, as actual pad layouts may vary depending on application. These numbers may be modified based on user equipment capability or fabrication criteria. A more robust pattern may be desired for wave soldering and is calculated by adding 0.2 mm to the ‘Z’ dimension. For further information, please reference document IPC-7351A, Naming Convention for Standard SMT Land Patterns, and for International grid details, please see document IEC, Publication 97.

Rev. 76

10 of 263

Package Outline Dimensions



www.diodes.com

Suggested Pad Layout





© Diodes Incorporated
