anionite. There is some water in it due to hydration of the functional groups that are positively charged (see Fig. 1). A decrease in the moisture content indicates a drop in their amount. This indirect fact proves the data from determining the total volumetric capacity of the anionite before and after it was sifted through water (Fig. 3).

Note that the difference between the total exchange capacity and the number of strongly ionized groups is that of the low-base, i.e. weakly dissociated groups. It is 0.72…0.75 mgequiv/l in the sample for sale (3.89––3.15) as well as in the other portions of the anionite. Thus during filtration of water anionite loses only strong-based functional groups. As a result, the total exchange capacity drops. I.e. there is deaminization of the anionite (a decrease in the amount of nitrogen-containing fragments (Fig. 1)) [18]:

R-CH2N (CH3)3OH + H2O R-CH2OH + NH (CH3)3OH.

Since the destruction products are constantly removed from the ionite, the balance of the reaction constantly moves to the right, i.e. to its deaminization. How long is this process going to occur? This is a very important question as the substances washed out of the anionite АV-17-8 pollute the purified water at the final stage of desalination.

The obtained results directly indicate a constant removal of the impurities from the ionexchangers even in distilled water. In the “dummy” experiment the total exchange capacity dropped from 3.15 to 2.34 mg-equiv/g, i.e. these indices are absolutely the same as for the experiment with 50 regenerations when 100000 volumes of water were sifted. The only difference is that the proportion of the destroyed granules is not over 14.2 % compared to 34.0 % in the experiments with the regeneration of the anionite.

I.e. we can safely say that in the dynamic mode 14 % of the anionite is destroyed simply by a water flow and the treatment with the alkaline solution causes another 20 % of the loading to

81

Russian Journal of Building Construction and Architecture

crack. This is inevitable since as the alkaline solution comes into the filter, the anionite grain shrinks according to the osmosis law as well as the anionite is converted from the saline (a carbon-dioxide, poorly swelling form) into the hydroxide high-water ionic form causing the volume of the grain to increase.

During the design of the above GOST 16187-70 the recommemded treatment was considered sufficient as there was no data regarding the behavior of ionites during water desalination. Later on, when some better-quality water was becessary to produce large intergral schemes, the problem of preliminary preparation of the ion-exchangers emerged once again.

4. Studies of the efficiency of different ways of purification commenced many years ago [17]. Deep washing of ionites from impurities was performed using a Soxhlet extractor [9]. A solvent is poured into a flask. At the mouth of the flask there is a glass tube with a sealed porous partition with an ionite. As the flask heats up, the water steam goes through the weighed portion of the ionite and comes into a reflux condenser where it is condensed with the resulting water flowing into the flask. Therefore there is multiple washing of the ionite with the solvent steam with the same amount of water being evaporated. After 20 hours of the extraction, the solvent was replaced.

The samples for sale (original) of ionites were tested (as a comparison item) as well as those prepared in two ways: in accordance with the GOST 16187-70 (method I) and following the treatment of the ionite with a 1.5 mole/l solution of hydrochloric acid washing with water with a 0.5 mole/l solution of caustic soda and water again (method II) [9].

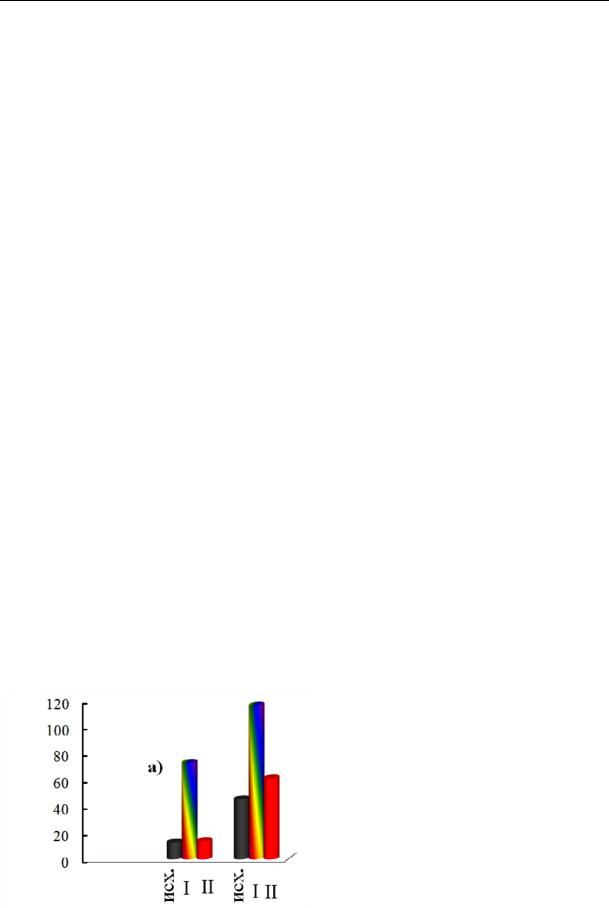

The way the sample is treated appeared to impact the way the ionite is washed from impurities in the extractor. The total amount of the reducing impurities extracted from the cationite КU-2-8 is shown in Fig. 4.

82

Based on the data obtained in [9], the sample for sale (original) produce less water pollution, i.e. more slowly than the prepared ones. This means that they will pollute the water for infinitely long. It might be due to the fact that during the treatment of the anionite using the method I the type (NaCI, NaOH, HCI) and concentration of the reagents changed as well as the ionic form of the cationite, which caused the granules to shrink or expand. This led the ionite “to breathe”, which made it easier for the impurities to come out of the opened pores. It is clearly seen that an emission of the substances is larger from the sample prepared using the method I that was kept for even swelling in the concentrated solution of NaCI. A change in the amount of the washed organic substances in the oxidability units along the cycles is shown in Fig. 5.

According to the position and form of the curved lines in Fig. 5, the oxidability indices dropped sharply over the first four extraction cycles. Further on, the result did not change much, which makes it unreasonable to continue the washing. This is proved by the results of the objective identification of the optical density of the extracts in all of the cycles measured at the wavelength of 215 nm.

It can be concluded that there is constantly some amount of reducing compounds coming out of the cationite КU-2-8. This is considered as solubility, or the result of the destruction of the cationite.

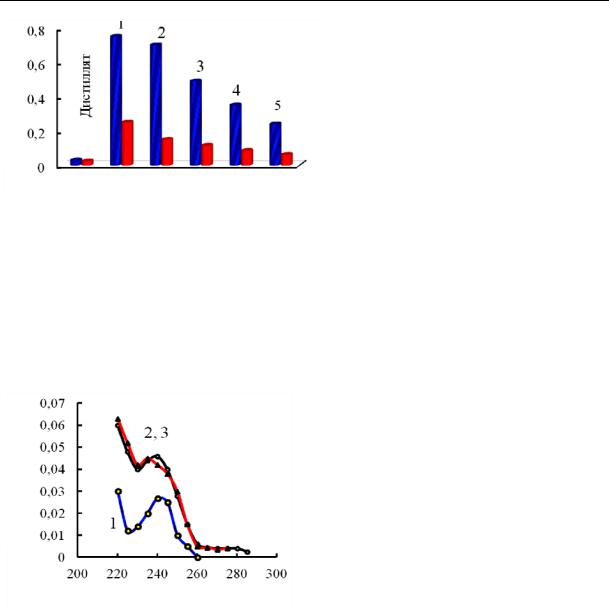

The comparison of the optical density of the extracts from the cationite КU-2-8 and anionite АV-17-8 allows one to conclude that the cationite has a lower chemical stability, which is indicated by higher scores on this test (Fig. 6).

These ion-exchangers are synthesized using the same matrix – an interpolymer of styrene and divinylbenzene. What is different is the type of a carrier of functional groups: they are introduced into the cationite by means of sulfonating and the anionite using amination. There might be polluting substances coming into the ionites or forming there at this stage.

83

Russian Journal of Building Construction and Architecture

The solvents, i.e. dioxane and benzene, were used while searching for an effective way of washing the ionites. In this series of the experiments extraction was performed over 100 hours. One cycle was 20 hours. 50 ml of the ionite and 100 ml of the solvent was used. After 20 hours the amount of the solvent was changed. The extracts were analyzed and the results of measuring their optical density are given in Fig. 7.

As shown in Fig. 7, the dioxane as well as the water steam extracts the impurities from the ionite. As a result, the optical density of the solvent rises both following the contact with the sample for sale as well as with a preliminarily prepared sample of the cationite КU-2-8. Note that the same dependence is found in the investigation of the benzene extracts with the absorption maximum being not at 240 but at 250 nm.

Therefore treatment of the ionites using benzene and dioxane also failed to prevent the impurities from washing away. Ion-exchanging materials seem to constantly pollute purified water and their pure forms are impossible to obtain [9]. This misfortunate fact is concluded based on the results of the study [25].

We have investigated the influence of the multiplicity of interchangeable treatment of the anionites АV-17-2P and АV-17-10P with the solutions of КОН and НС1 per the amount of

84

the sifted distilled water that was estimated according to its optical density at = 205 nm and the length of the ditch of 100 mm as well as the permanganate oxidability of the washed water and regenerates [25].

We might have been able to free these two samples of the anionite exchangers from impurities completely. We concluded that based on the fact that as they were held in distilled water for a long time, their optical density did not increase. However, stopping the non-polymerized monomers and other side products from being extracted became possible by means of a huge consumption of the reagents and water: in the laboratory setting 50 equiv. of NaOH, 30 equiv. of HCl and 900 fold volumes of a distillate per 1 l of the ionite was consumed [25]. The use of the sorbents prepared in such a way for water desalination revealed that the anionites do not emit but, on the contrary, absorb its organic substances with the optical desnity dropping from 0.39 to 0,14 (АV-17-10P) and from 0,39 to 0,075 (АV-17-2P). However, this consumption is a source of a plethora of environmental issues. Thus technology experts seek to perform preliminary treatment of ionites in a more environmentally-friendly manner.

The authors [3] concluded: there are ionites that emit biologically active impurities into water whatever washing method is used. These are anionite АNT-251 based on divinylbenzene and 2-methyl-vinylpyridine. They cannot be used in the technologies that process water contact food products. They emit phenol (КU-1) into water, formaldehyde (anionites based on the anionite IИА-2), plastic polyamines (anionites АV-16GS, EDE-10P, АN-31, etc.) The amount of the emitted monomers is more than the maximum permissible concentration.

The chemical stability of ionites in the above studies [12, 14, 25] was investigated in water solutions. The authors [7] explored the behavior of ionites in sugar solutions as they were used to remove the coloring substances in the refined sugar production at a high temperature. The extract is obtained using ionites: 1 volume of the ionite and 7 volumes of water held for 1 and 8 hours at the temperature of 80 оС. Besides the oxidability, the bromine absorption number (non-specific compounds) and solid residual (fixed substances). All these groups of the impurities were found in the extracts. IR-spectra indicate that there are fragments of ionexchangers. I.e. the ionites based on styrene are partially converted into the soluble condition in water as well as the sugar solutions. According to [7], they are mostly extracted from the parties of the ionites that are in use in industrial filters.

The latter data was of interest to us as in ion-exchanging setups of desalination ionexchangers are operated for years. The influence of an operating cationite on the composition of water impurities was investigated using an industrial ion-exchanging setups of desalination of river water with the productivity of 40 m3/h.

85
