Russian Journal of Building Construction and Architecture

BUILDING MATERIALS AND PRODUCTS

UDC691

Ercan Işık1, Mesut Özdemi2

CONSISTENCY OF CONCRETE MATERIAL MODELS THAT USED

FOR RC BUILDINGS

Bitlis Eren University

Turkey, Bitlis, tel.: +90 (434) 222 00 97, e-mail: ercanbitliseren@gmail.com 1Assistant Professor, Civil Engineering Dept.

2Lecturer, Bitlis Eren University, Vocational School of Technical Sciences

Statement of the problem. Knowing the stress-strain relationship of the concrete used in building structures is important on calculation and design processes of construction made of this material. Results. There are several mathematical models in the literature to define the stress-strain relationship of concrete. In this study, calculations are made for a two-story structure, taking four different concrete models into account. For each model, displacement amount for X and Y axes and base shear force-displacement graphs are drawn. The obtained values are compared and suggestions are made. Conclusions. The static pushover curves obtained for four different models of concrete are found to be compatible with each other.

Keywords: Concrete, concrete model, performance, pushover.

Introduction

Designing economic structures with adequate safety is the primary function of a civil engineer. The concept of safety means constructing structures that do not exceed thresholds regarding load and strain. External load affecting structures converts into internal forces in the structures which convert into stress. The stress may be analyzed under two headings; normal stress and shear stress. Normal stress results in strain such as elongation or shortening, while shear stress causes angular strain. Material features may be acquired from stress strain measurements.

Knowing the stress-strain relationship of the concrete used in building structures is important on calculation and design processes. For any material, the stress-strain relationship may be defined by mathematical models. In the design of concrete structures, these mathematical models are used.

© Işık Ercan, Özdemi Mesut,2017

92

Reinforced concrete (RC) is a structural material which is commonly used in world combined by steel and concrete. Concrete has got strong compressive strength and steel has got strong in tension strength. The idea of compressive stresses was covered by concrete and tensile stresses were covered by steel in the structures that revealed RC materials. Steel and concrete give common response to loads and forces. Any defect in concrete or steel element affects on all of the structures. The adherence between these materials improves properties of RC elements. The first defect was related to concrete for RC buildings which were damaged as following an earthquake. Since the weak material is concrete in RC building [1]. Materials models are taken into account in the design of RC buildings. The model on material is one of the important parameter to build design.

There are a number of mathematical models related to concrete. In this study, effects of concrete models on structural performance of reinforced concrete building have been investigated. Calculations have been made for each concrete model which was selected as Mander et al (1988) [2], Ilkı et al (2003) [3], Chang and Mander (1994) [4] and KapposKonstandinis (1999) [5]. Pushover analyses were used in both directions of the selected building. Consequently, the structural behaviour of RC buildings with different concrete models has been compared and evaluated according to analysis results in detail.

Concrete Material Models

Concrete is a composite material of using various materials such as aggregate, cement and water. Production of concrete is possible and easy in any case all over the world. Furthermore, the step number of concrete production is too much such as calculation of composition, transportation, concreting, compaction and curing of concrete. The defects of materials that were used in concrete affects on concrete strength directly. Steel production was made only in factories under control. This makes concrete weaker than steel. So the first defect was related to concrete for RC buildings that were damaged as following an earthquake.

Concrete is a construction material with widespread use that is easily shaped by molds and has good resistance against pressure. While it has good resistance against pressure, it does not have sufficient ductility. For this reason, concrete elements need to be confined. Core concrete is confined with transverse reinforcement at certain intervals. Concrete cover is used in order to protect vertical and transverse reinforcements from external effects. The amount, diameter, interval, strength and order of transverse reinforcements, as well as reinforcement order, concrete strength and axial load affect concrete behavior. The typical stress-strain relationship of any concrete is given in Fig. 1.

93

Russian Journal of Building Construction and Architecture

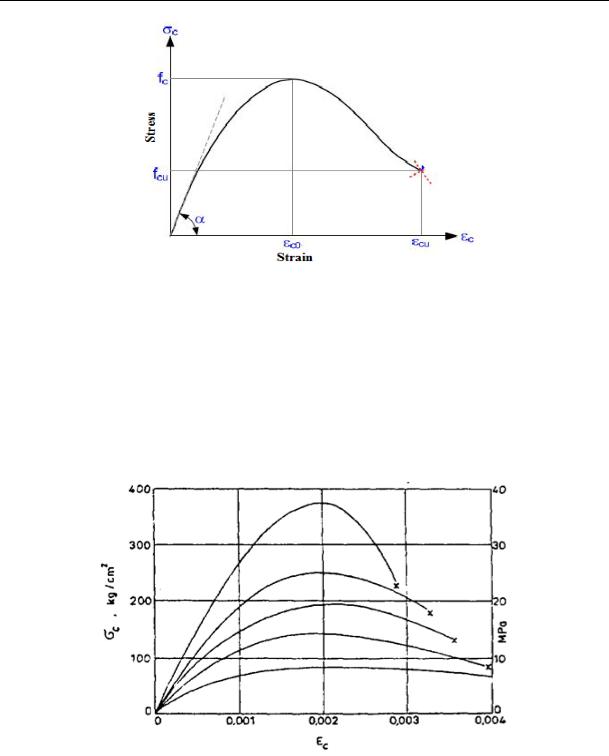

Fig. 1. Stress-strain relation for any concrete class [6]

Concrete does not break when it reaches the greatest stress, it breaks when it reaches a certain deformation. The stress-strain features of concrete vary per concrete quality. The more the concrete has compressive strength, the less it has strain capacity; meanwhile the tilt at the beginning of the stress-strain curve (modulus of elasticity) increases and the peak points sharpen (Fig. 2).

Fig. 2. Stressstrain relation for different concrete classes [7]

The graph which reveals the confined and unconfined concrete stress - strain relation is given at Fig. 3.

While the values regarding strength of materials used in structures are calculated, mathematical models are widely used. In the process of mathematically modeling for a material, the

94

stress-strain (σ-ε) relationship of that material is used. The stress-strain relationship is related to the connections between the balance equations resulting from stress or force and conformity equations showing strain in material. During the analysis regarding these factors, the error margin varies per accuracy of stress-strain relationship of the material. Therefore, in order to facilitate the analysis, the (σ-ε) curves are simplified by idealization.

Fig. 3. Stress-strain relation for confined and unconfined concrete [8]

The simplified (σ-ε) curves used in structure design and assessment are called mathematical models. Mathematical models are needed to define concrete behavior under load as the strength problems of concrete are multivariate. In this study, four different models are used.

Mander et al. Nonlinear Concrete Model

This uniaxial model with fixed confinement is suggested by Mander et al (1988) [2]. Mander et al (1988) [2], have developed a model for concrete subjected compressive loading, and confined with either circular or rectangular sections, under static and dynamic axial compressive loading [9].

In this model, transverse confinement reinforcement creates a fixed effect of confinement and this strain calculated by given rules is deemed to be same throughout the entire stress-strain per unit. In the definition of this model, concrete compressive strength (fc), tensile strength (ft), strain per unit at greatest stress, modulus of elasticity (Ec) and specific weight parameters are required [10]. This model is used in Turkish earthquake regulation. In this model, by using moment-curvature relationship, final deformation criteria and plastic hinge length (Lp = h/2) [11], the plastic rotation capacity and hinge features of each element are defined [12]. The graph presenting the stress-strain relationship of this model is given in Fig. 4.
