•​Abstract Prior Value: 1\1​

•​Image Set Label: "Prior Chest X-ray"​

•​Hanging Protocol User Identification Code Sequence: zero length​

•​Hanging Protocol User Group Name: "ABC Hospital"​

V.3.2 Hanging Protocol Environment Module​

•​Number of Screens: 2​

•​Nominal Screen Definition Sequence:​ •​Item 1:​

•​Number of Vertical Pixels: 2560​ •​Number of Horizontal Pixels: 2048​

•​Display Environment Spatial Position: 0.0\1.0\0.5\0.0, representing (0,1), (0.5,0)​ •​Screen Minimum Grayscale Bit Depth: 8​

•​Application Maximum Repaint Time: 100​ •​Item 2:​

•​Number of Vertical Pixels: 2560​ •​Number of Horizontal Pixels: 2048​

•​Display Environment Spatial Position: 0.5\1.0\1.0\0.0, representing (0.5,1), (1,0)​ •​Screen Minimum Grayscale Bit Depth: 8​

•​Application Maximum Repaint Time: 100​

V.3.3 Hanging Protocol Display Module​

•​Display Sets Sequence:​ •​Item 1:​

•​Display Set Number: 1​ •​Display Set Presentation Group: 1​ •​Image Set Number: 2​

•​Image Boxes Sequence:​ •​Item 1:​

•​Image Box Number: 1​

•​Display Environment Spatial Position: 0.0\1.0\0.25\0.0, representing (0,1), (0.25,0)​ •​Image Box Layout Type: "SINGLE"​

•​Filter Operations Sequence:​ •​o Item 1:​

- Standard -​

- Standard -​

•​Image Boxes Sequence:​ •​Item 1:​

•​Image Box Number: 1​

•​Display Environment Spatial Position: 0.5\1.0\0.75\1.0, representing (0.5,1), (0.75,0)​ •​Image Box Layout Type: "SINGLE"​

•​Filter Operations Sequence:​ •​Item 1:​

•​Selector Attribute: (0018,5101) [View Position]​ •​Selector Attribute VR: "CS"​

•​Selector CS Value: "PA"​ •​Selector Value Number: 1​ •​Filter-by Operator: "MEMBER_OF"​

•​Sorting Operations Sequence: zero length​

•​Display Set Patient Orientation: "R\F"​ •​Show Image True Size Flag: "NO"​ •​Show Graphic Annotation Flag: "NO"​

•​Item 4:​

•​Display Set Number: 4​ •​Display Set Presentation Group: 1​ •​Image Set Number: 1​

•​Image Boxes Sequence:​ •​Item 1:​

•​Image Box Number: 1​

•​Display Environment Spatial Position: 0.75\1.0\1.0\0.0, representing (0.75,1), (1,0)​ •​Image Box Layout Type: "SINGLE"​

•​Filter Operations Sequence:​ •​Item 1:​

•​Selector Attribute: (0018,5101) [View Position]​ •​Selector Attribute VR: "CS"​

•​Selector CS Value: "RL\LL"​ •​Selector Value Number: 1​ •​Filter-by Operator: "MEMBER_OF"​

•​Sorting Operations Sequence: zero length​

- Standard -​

•​Display Set Patient Orientation: "A\F"​ •​Show Image True Size Flag: "NO"​ •​Show Graphic Annotation Flag: "NO"​

•​Partial Data Display Handling: "MAINTAIN_LAYOUT"​

V.4 Neurosurgery Planning Hanging Protocol Example​

Goal: A Hanging Protocol for MR & CT of Head, for a neurosurgery plan. 1Kx1K screen on left shows orthogonal MPR slices through​ the acquisition volume, and in one presentation group has a 3D interactive volume rendering in the lower right quadrant. In all display​ sets the 1Kx1K screen is split into 4 512x512 quadrants. The 2560x2048 screen has a 4 row by 3 column tiled display area. There​ are 4 temporal presentation groups: CTnew, MR, combined CTnew and MR, combined CTnew and CTold.​

Display Environment Spatial Position Attribute values for image boxes are represented in terms of ratios in pixel space [(0/3072,​ 512/2560), (512/3072,0/2560)] rather than (0.0,0.0), (1.0,1.0) space, for ease of understanding the example.​

- Standard -​

(1.0, 1.0)

2560

1024

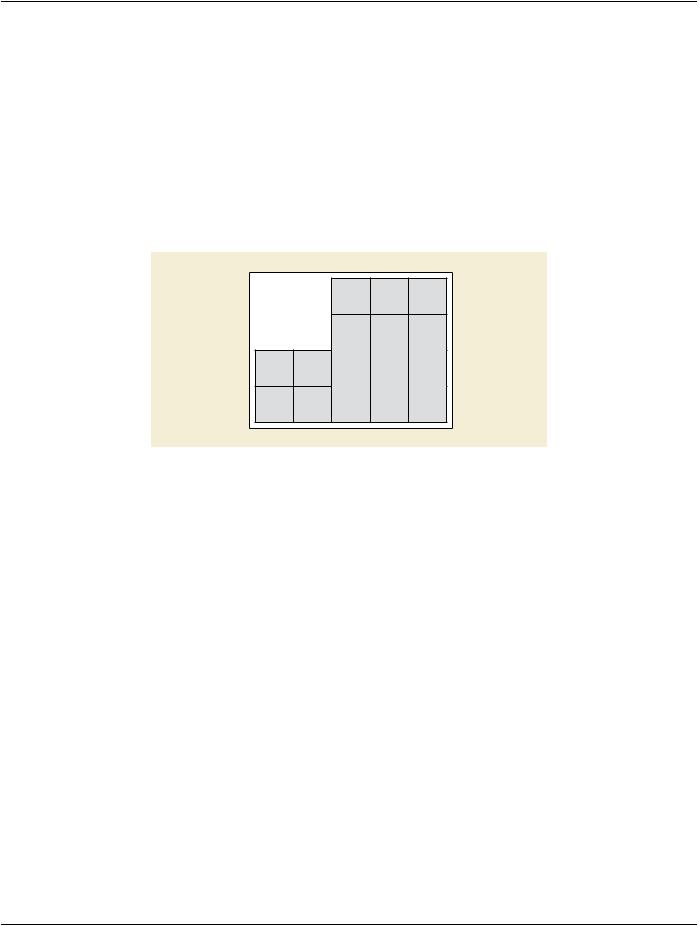

Figure V.4-1. Neurosurgery Planning Hanging Protocol Example​

V.4.1 Hanging Protocol Definition Module​

•​Hanging Protocol Name: "NeurosurgeryPlan"​

•​Hanging Protocol Description: "Neurosurgery planning, requiring MR and CT of head"​ •​Hanging Protocol Level: "SITE"​

•​Hanging Protocol Creator: "Smith^Joseph"​

•​Hanging Protocol Creation DateTime: "20020101104200"​ •​Hanging Protocol Definition Sequence:​
