DICOM PS3.17 2020a - Explanatory Information

•Item 1: •Modality: "MR"

•Anatomic Region Sequence: •Item 1: (69536005, SCT, "Head")

•Laterality: zero length

•Procedure Code Sequence:

•Item 1: (98765, 99Local, 1.5, "NeuroSurgery Plan Local5") •Reason for Requested Procedure Code Sequence:

•Item 1: (I67.1, I10, "Cerebral aneurysm") •Item 2:

•Modality: "CT"

•Anatomic Region Sequence: •Item 1: (69536005, SCT, "Head")

•Laterality: zero length

•Procedure Code Sequence:

•Item 1: (98765, 99Local, 1.5, "NeuroSurgery Plan Local5") •Reason for Requested Procedure Code Sequence:

•Item 1: (I67.1, I10, "Cerebral aneurysm") •Number of Priors Referenced: 1

•Image Sets Sequence: •Item 1:

•Image Set Selector Sequence: •o Item 1:

•Image Set Selector Usage Flag: "NO_MATCH" •Selector Attribute: (0018,0015) [Body Part Examined] •Selector Attribute VR: "CS"

•Selector CS Value: "HEAD" •Selector Value Number: 1

•Item 2:

•Image Set Selector Usage Flag: "NO_MATCH" •Selector Attribute: (0008,0060) [Modality] •Selector Attribute VR: "CS"

•Selector CS Value: "MR"

Page 251

- Standard -

Page 252

DICOM PS3.17 2020a - Explanatory Information

•Selector Value Number: 1 •Time Based Image Sets Sequence:

•o Item 1:

•Image Set Number: 1

•Image Set Selector Category: "RELATIVE_TIME" •Relative Time: 0\0

•Relative Time Units: "MINUTES" •Image Set Label: "Current MR Head"

•Item 2:

•Image Set Selector Sequence: •Item 1:

•Image Set Selector Usage Flag: "NO_MATCH" •Selector Attribute: (0018,0015) [Body Part Examined] •Selector Attribute VR: "CS"

•Selector CS Value: "HEAD" •Selector Value Number: 1

•o Item 2:

•Image Set Selector Usage Flag: "NO_MATCH" •Selector Attribute: (0008,0060) [Modality] •Selector Attribute VR: "CS"

•Selector CS Value: "CT" •Selector Value Number: 1 •Time Based Image Sets Sequence:

•Item 1:

•Image Set Number: 2

•Image Set Selector Category: "RELATIVE_TIME" •Relative Time: 0\0

•Relative Time Units: "MINUTES" •Image Set Label: "Current CT Head"

•Item 2:

•Image Set Number: 3

•Image Set Selector Category: "ABSTRACT_PRIOR" •Abstract Prior Value: 1\1

- Standard -

DICOM PS3.17 2020a - Explanatory Information

Page 253

•Image Set Label: "Prior CT Head"

•Hanging Protocol User Identification Code Sequence: zero length

•Hanging Protocol User Group Name: "ABC Hospital"

V.4.2 Hanging Protocol Environment Module

•Number of Screens: 2

•Nominal Screen Definition Sequence: •Item 1:

•Number of Vertical Pixels: 1024 •Number of Horizontal Pixels: 1024

•Display Environment Spatial Position: 0.0\0.28\0.33\0.0, representing (0.0, 0.28), (0.33, 0.0) •Screen Minimum Color Bit Depth: 8

•Application Maximum Repaint Time: 70 •Item 2:

•Number of Vertical Pixels: 2560 •Number of Horizontal Pixels: 2048

•Display Environment Spatial Position 0.33\1.0\1.0\0.0, representing (0.33, 1.0), (1.0, 0.0) •Screen Minimum Grayscale Bit Depth: 8

•Application Maximum Repaint Time: 10

V.4.3 Hanging Protocol Display Module

•Display Sets Sequence:

•

(1.0, 1.0)

DS 5:

TRV

				2560
		DS 2:	DS 3:	2560
		DS 2:
		MPR
		MPR	TRV
		SAG	TRV
		SAG
1024
1024		DS 1:	DS 4:
		DS 1:	DS 4:
		MPR	3D
		COR	VOL
(0.0, 0.0)

	1024		2048

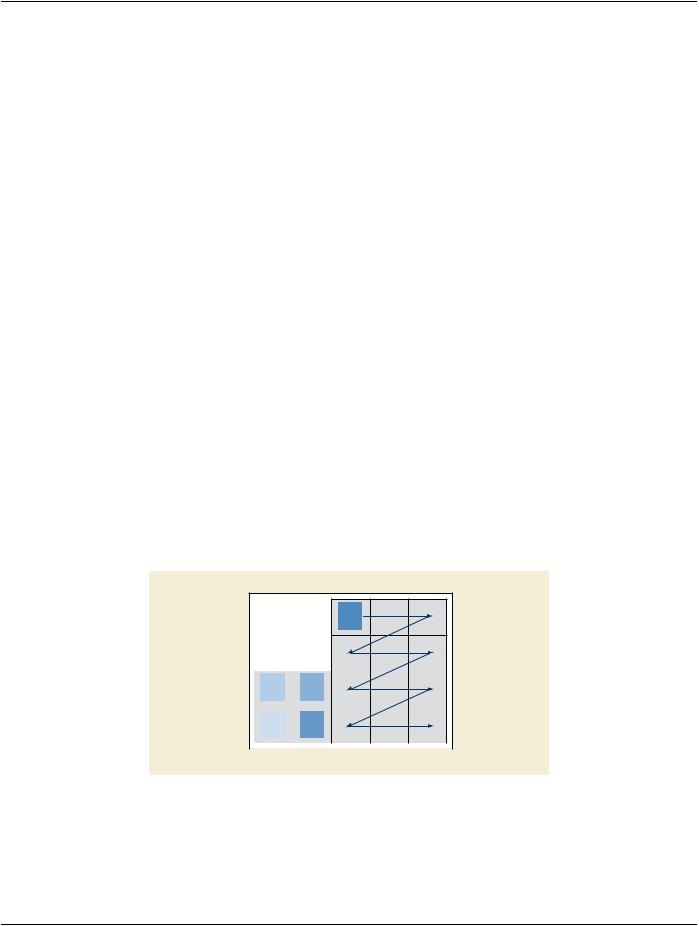

Figure V.4.3-1. Group #1 is CT only display (current CT)

•Item 1:

•Display Set Number: 1

- Standard -

Page 254

DICOM PS3.17 2020a - Explanatory Information

•Display Set Presentation Group: 1 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [lower left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 512/2560), (512/3072,0/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR"

•Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "CORONAL" •Display Set Patient Orientation: "L\F"

•VOI Type: BRAIN

•Display Set Presentation Group Description: "Current CT only" •Item 2:

•Display Set Number: 2 •Display Set Presentation Group: 1 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [upper left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 1024/2560), (512/3072, 512/2560) •Image Box Layout Type: "STACK"

- Standard -

DICOM PS3.17 2020a - Explanatory Information

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR"

•Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "SAGITTAL" •Display Set Patient Orientation: "P\F"

•VOI Type: BRAIN •Item 3:

•Display Set Number: 3 •Display Set Presentation Group: 1 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [upper right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 1024/2560), (1024/3072, 512/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

Page 255

- Standard -
