DICOM PS3.17 2020a - Explanatory Information

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•VOI Type: BRAIN

•Show Graphic Annotation Flag: "YES" •Item 4:

•Display Set Number: 4 •Display Set Presentation Group: 1 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [lower right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 512/2560), (1024/3072, 0/2560) •Image Box Layout Type: "PROCESSED"

•Filter Operations Sequence: •Item 1:

•Selector Attribute: (0008,0008) [Image Type] •Selector Attribute VR: "CS"

•Selector CS Value: "LOCALIZER " •Selector Value Number: 3

•Filter-by Operator: "NOT_MEMBER_OF" •Sorting Operations Sequence: zero length

•Reformatting Operation Type: "3D_RENDERING" •Reformatting Operation Initial View Direction: "CORONAL" •3D Rendering Type: "VOLUME"

•Display Set Patient Orientation: "X\F" •Show Graphic Annotation Flag: "NO"

•Item 5:

•Display Set Number: 5 •Display Set Presentation Group: 1 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [entire 2048x2560 space]

- Standard -

DICOM PS3.17 2020a - Explanatory Information

•Image Box Number: 1

•Display Environment Spatial Position: (1024/3072, 2560/2560), (3072/3072, 0/2560) •Image Box Layout Type: "TILED"

•Image Box Tile Horizontal Dimension: 3 •Image Box Tile Vertical Dimension: 4 •Image Box Scroll Direction: "VERTICAL"

•Image Box Small Scroll Type: "ROW_COLUMN" •Image Box Small Scroll Amount: 1

•Image Box Large Scroll Type: "PAGE" •Image Box Large Scroll Amount: 1

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•VOI Type: BRAIN

•Show Graphic Annotation Flag: "YES" •

(1.0, 1.0)

DS 10:

TRV

				2560
		DS 7:	DS 8:	2560
		DS 7:
		MPR
		MPR	TRV
		SAG	TRV
		SAG
1024
1024		DS 6:	DS 9:
		DS 6:	DS 9:
		MPR	3D
		COR	VOL
(0.0, 0.0)

	1024		2048

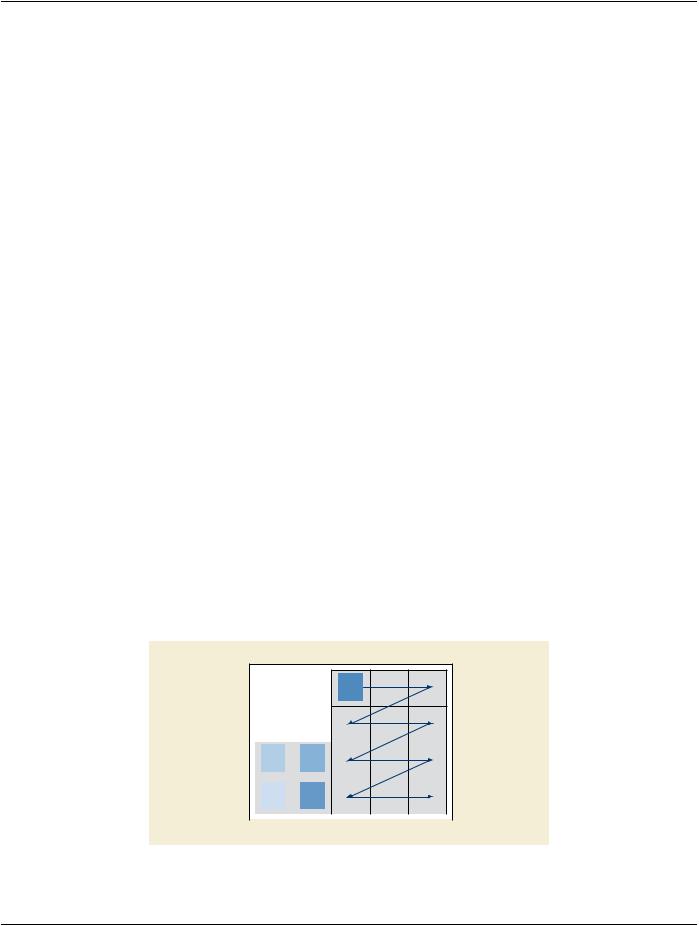

Figure V.4.3-2. Group #2 is MR only display

Page 257

- Standard -

Page 258

DICOM PS3.17 2020a - Explanatory Information

•Item 6:

•Display Set Number: 6 •Display Set Presentation Group: 2 •Image Set Number: 1

•Image Boxes Sequence:

•Item 1: [lower left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 512/2560), (512/3072,0/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR"

•Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "CORONAL" •Display Set Patient Orientation: "P\F"

•Display Set Presentation Group Description: "MR only" •Item 7:

•Display Set Number: 7 •Display Set Presentation Group: 2 •Image Set Number: 1

•Image Boxes Sequence:

•Item 1: [upper left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 1024/2560), (512/3072, 512/2560)

- Standard -

DICOM PS3.17 2020a - Explanatory Information

•Image Box Layout Type: "STACK" •Filter Operations Sequence:

•Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR"

•Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "SAGITTAL" •Display Set Patient Orientation: "P\F"

•Item 8:

•Display Set Number: 8 •Display Set Presentation Group: 2 •Image Set Number: 1

•Image Boxes Sequence:

•Item 1: [upper right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 1024/2560), (1024/3072, 512/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

Page 259

- Standard -

Page 260

DICOM PS3.17 2020a - Explanatory Information

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•Item 9:

•Display Set Number: 9 •Display Set Presentation Group: 2 •Image Set Number: 1

•Image Boxes Sequence:

•Item 1: [lower right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 512/2560), (1024/3072, 0/2560) •Image Box Layout Type: "PROCESSED"

•Filter Operations Sequence: zero length

•Sorting Operations Sequence: zero length

•Reformatting Operation Type: "3D_RENDERING" •Reformatting Operation Initial View Direction: "CORONAL" •3D Rendering Type: "VOLUME"

•Display Set Patient Orientation: "X\F" •Item 10:

•Display Set Number: 10 •Display Set Presentation Group: 2 •Image Set Number: 1

•Image Boxes Sequence:

•Item 1: [entire 2048x2560 space] •Image Box Number: 1

•Display Environment Spatial Position: (1024/3072, 2560/2560), (3072/3072, 0/2560) •Image Box Layout Type: "TILED"

•Image Box Tile Horizontal Dimension: 3 •Image Box Tile Vertical Dimension: 4 •Image Box Scroll Direction: "VERTICAL"

•Image Box Small Scroll Type: "ROW_COLUMN" •Image Box Small Scroll Amount: 1

•Image Box Large Scroll Type: "PAGE"

- Standard -
