DICOM PS3.17 2020a - Explanatory Information

Page 261

•Image Box Large Scroll Amount: 1 •Filter Operations Sequence:

•Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•

(1.0, 1.0)


				DS 15:
				CT
				TRV

				DS 16:
				MR
				TRV	2560

		DS 12:	DS 13:
		DS 12:	DS 13:
		CT	CT
		COR	TRV
1024
1024		DS 11:	DS 14:
		DS 11:	DS 14:
		MR	MR
		COR	TRV
(0.0, 0.0)

	1024			2048

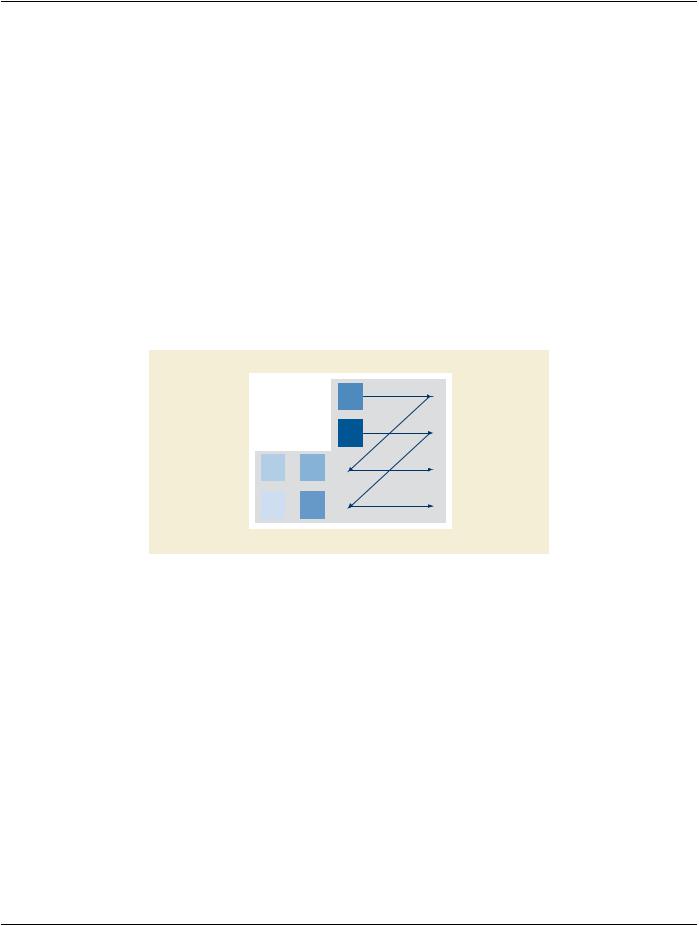

Figure V.4.3-3. Group #3 is combined MR & CT

•Item 11: [MR coronal] •Display Set Number: 11

•Display Set Presentation Group: 3 •Image Set Number: 1

•Image Boxes Sequence:

•Item 1: [lower left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 512/2560), (512/3072,0/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

- Standard -

Page 262

DICOM PS3.17 2020a - Explanatory Information

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR"

•Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "CORONAL" •Display Set Patient Orientation: "L\F"

•Show Graphic Annotation Flag: "NO"

•Display Set Presentation Group Description: "MR & CT combined" •Item 12: [CT coronal]

•Display Set Number: 12 •Display Set Presentation Group: 3 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [upper left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 1024/2560), (512/3072, 512/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS"

- Standard -

DICOM PS3.17 2020a - Explanatory Information

•Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR" •Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "CORONAL" •Display Set Patient Orientation: "L\F"

•VOI Type: BRAIN

•Show Graphic Annotation Flag: "NO" •Item 13: [CT transverse]

•Display Set Number: 13 •Display Set Presentation Group: 3 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [upper right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 1024/2560), (1024/3072, 512/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•VOI Type: BRAIN

•Show Graphic Annotation Flag: "YES" •Item 14: [MR transverse]

•Display Set Number: 14 •Display Set Presentation Group: 3

Page 263

- Standard -

Page 264

DICOM PS3.17 2020a - Explanatory Information

•Image Set Number: 1 •Image Boxes Sequence:

•Item 1: [lower right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 512/2560), (1024/3072, 0/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P" •Show Graphic Annotation Flag: "NO" •Item 15: [CT two part scrolled, rows 1 & 3]

•Display Set Number: 15 •Display Set Presentation Group: 3 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [row 1 (top row) of 2048x2560 space] •Image Box Number: 1

•Display Environment Spatial Position: (1024/3072, 2048/2560), (3072/3072, 1536/2560) •Image Box Layout Type: "TILED"

•Image Box Tile Horizontal Dimension: 3 •Image Box Tile Vertical Dimension: 1 •Image Box Scroll Direction: "HORIZONTAL" •Image Box Small Scroll Type: "IMAGE" •Image Box Small Scroll Amount: 1

•Image Box Large Scroll Type: "ROW_COLUMN"

- Standard -

DICOM PS3.17 2020a - Explanatory Information

•Image Box Large Scroll Amount: 1 •Item 2: [row 3 of 2048x2560 space]

•Image Box Number: 2

•Display Environment Spatial Position: (1024/3072, 1024/2560), (3072/3072, 512/2560) •Image Box Layout Type: "TILED"

•Image Box Large Scroll Type: "ROW_COLUMN" •Image Box Large Scroll Amount: 1

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•VOI Type: BRAIN

•Show Graphic Annotation Flag: "YES" •Item 16: [MR two part scrolled, rows 2 & 4]

•Display Set Number: 16 •Display Set Presentation Group: 3 •Image Set Number: 1

•Image Boxes Sequence:

•Item 1: [row 2 of 2048x2560 space] •Image Box Number: 1

•Display Environment Spatial Position: (1024/3072, 1536/2560), (3072/3072, 1024/2560)

Page 265

- Standard -
