Page 266

DICOM PS3.17 2020a - Explanatory Information

•Image Box Layout Type: "TILED" •Image Box Tile Horizontal Dimension: 3 •Image Box Tile Vertical Dimension: 1

•Image Box Scroll Direction: "HORIZONTAL" •Image Box Small Scroll Type: "IMAGE" •Image Box Small Scroll Amount: 1

•Image Box Large Scroll Type: "ROW_COLUMN" •Image Box Large Scroll Amount: 1

•Item 2: [row 4 (bottom row) of 2048x2560 space] •Image Box Number: 2

•Display Environment Spatial Position: (1024/3072, 512/2560), (3072/3072, 0/2560) •Image Box Layout Type: "TILED"

•Image Box Tile Horizontal Dimension: 3 •Image Box Tile Vertical Dimension: 1 •Image Box Scroll Direction: "HORIZONTAL" •Image Box Small Scroll Type: "IMAGE" •Image Box Small Scroll Amount: 1

•Image Box Large Scroll Type: "ROW_COLUMN" •Image Box Large Scroll Amount: 1

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P" •Show Graphic Annotation Flag: "NO"

- Standard -

DICOM PS3.17 2020a - Explanatory Information

Page 267

•

(1.0, 1.0)


				DS 21:
				CT new
				TRV

				DS 22:
				CT old
				TRV	2560

		DS 18:	DS 19:
		DS 18:	DS 19:
		CT new	CT new
		COR	TRV
1024
1024		DS 17:	DS 20:
		DS 17:	DS 20:
		CT old	CT old
		COR	TRV
(0.0, 0.0)

	1024			2048

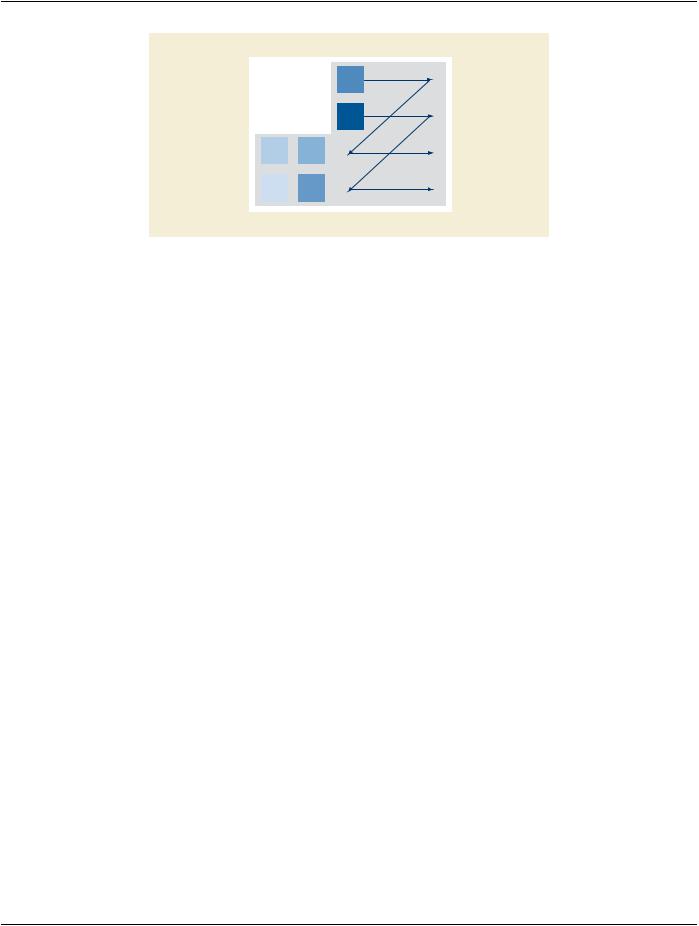

Figure V.4.3-4. Group #4 is combined CT new & CT old

•Item 17: [CT old coronal] •Display Set Number: 17 •Display Set Presentation Group: 4 •Image Set Number: 3

•Image Boxes Sequence:

•Item 1: [lower left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 512/2560), (512/3072,0/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR"

•Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "CORONAL"

- Standard -

Page 268

DICOM PS3.17 2020a - Explanatory Information

•Display Set Patient Orientation: "L\F" •VOI Type: BRAIN

•Display Set Presentation Group Description: "CT old & CT new combined" •Item 18: [CT new coronal]

•Display Set Number: 18 •Display Set Presentation Group: 4 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [upper left quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (0/3072, 1024/2560), (512/3072, 512/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Reformatting Operation Type: "MPR"

•Reformatting Thickness: 5 •Reformatting Interval: 5

•Reformatting Operation Initial View Direction: "CORONAL" •Display Set Patient Orientation: "L\F"

•VOI Type: BRAIN

•Item 19: [CT new transverse] •Display Set Number: 19 •Display Set Presentation Group: 4 •Image Set Number: 2

•Image Boxes Sequence:

- Standard -

DICOM PS3.17 2020a - Explanatory Information

•Item 1: [upper right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 1024/2560), (1024/3072, 512/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence: •Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•VOI Type: BRAIN

•Show Graphic Annotation Flag: "YES" •Item 20: [CT old transverse]

•Display Set Number: 20 •Display Set Presentation Group: 4 •Image Set Number: 3

•Image Boxes Sequence:

•Item 1: [lower right quadrant of 1024x1024] •Image Box Number: 1

•Display Environment Spatial Position: (512/3072, 512/2560), (1024/3072, 0/2560) •Image Box Layout Type: "STACK"

•Filter Operations Sequence: •Item 1:

•Filter-by Category: "IMAGE_PLANE" •Selector Attribute VR: "CS" •Selector CS Value: "TRANSVERSE" •Filter-by Operator: "MEMBER_OF"

•Sorting Operations Sequence:

Page 269

- Standard -

Page 270

DICOM PS3.17 2020a - Explanatory Information

•Item 1:

•Sort-by Category: "ALONG_AXIS" •Sorting Direction: "INCREASING" •Display Set Patient Orientation: "L\P"

•VOI Type: BRAIN

•Show Graphic Annotation Flag: "YES" •Item 21: [CT new two part scrolled, rows 1 & 3]

•Display Set Number: 21 •Display Set Presentation Group: 4 •Image Set Number: 2

•Image Boxes Sequence:

•Item 1: [row 1 (top row) of 2048x2560 space] •Image Box Number: 1

•Display Environment Spatial Position: (1024/3072, 2048/2560), (3072/3072, 1536/2560) •Image Box Layout Type: "TILED"

•Image Box Large Scroll Type: "ROW_COLUMN" •Image Box Large Scroll Amount: 1

•Item 2: [row 3 of 2048x2560 space] •Image Box Number: 2

•Display Environment Spatial Position: (1024/3072, 1024/2560), (3072/3072, 512/2560) •Image Box Layout Type: "TILED"

•Image Box Large Scroll Type: "ROW_COLUMN" •Image Box Large Scroll Amount: 1

- Standard -
